Hydraulic Symbol
Description
A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device. Available in conventional surface mount or convenient "down-hole" versions.
Operation
The INCV04-20 and INCV04-B20 allow flow passage from port 1 to port 2, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to port 2.
Technical Data
| Operating Pressure | 241.3 bar / 3500 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T04-2A or T04-2B |
| Internal Leakage | 0.10 cc/minute (2 drops/minute) max. at 206.8 bar / 3000 psi |
| Temperature | -40°C to 120°C |

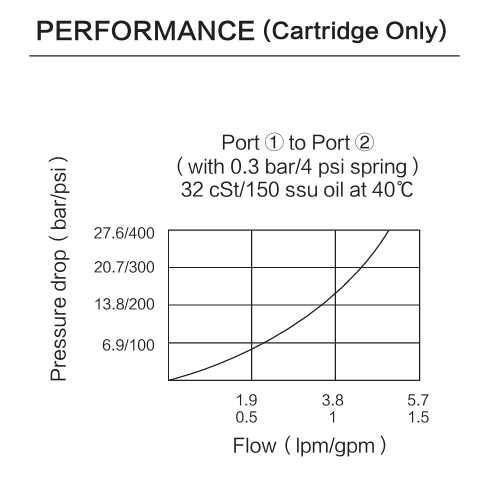

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

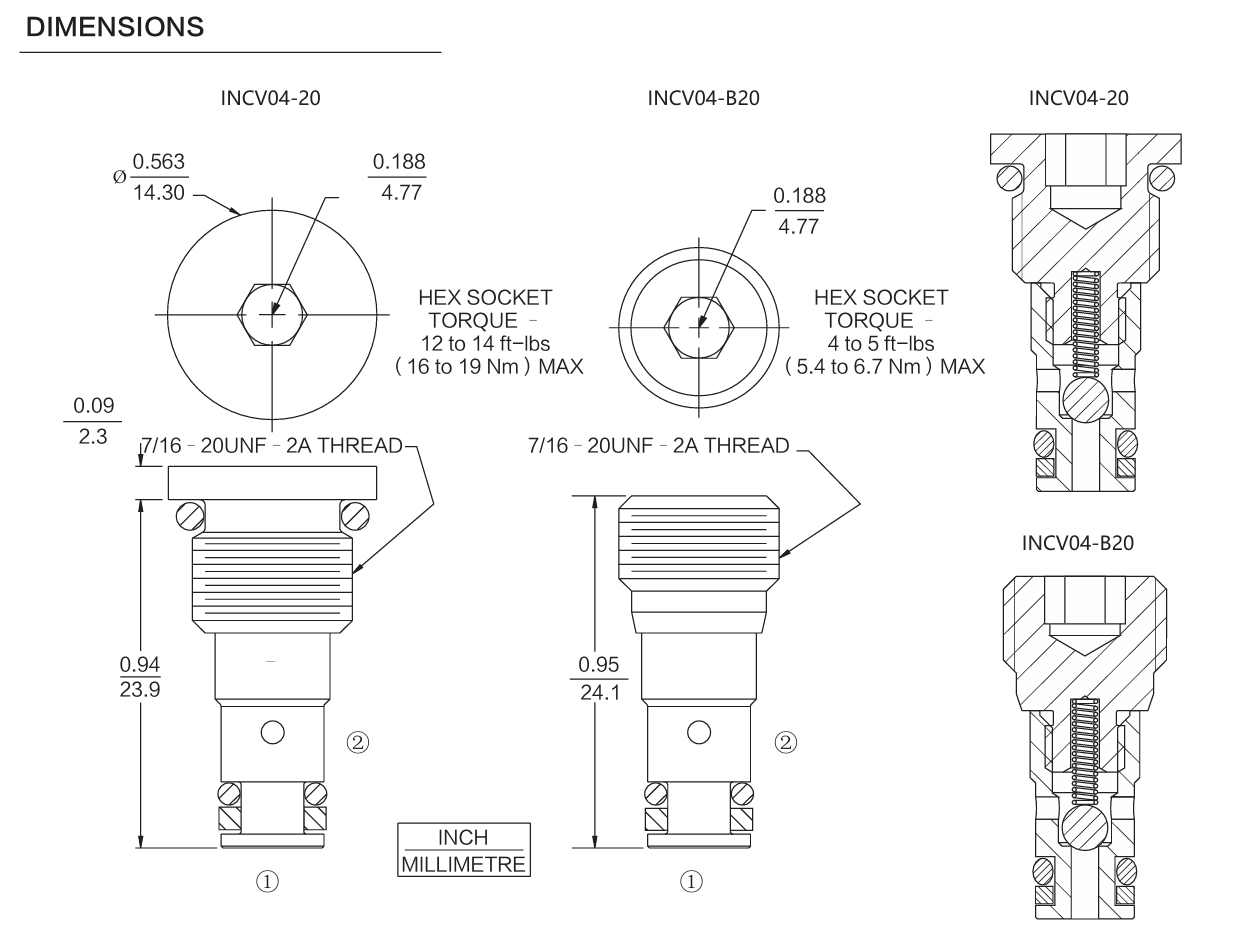

Dimensions
Dimension drawing is provided for installation and cavity review.

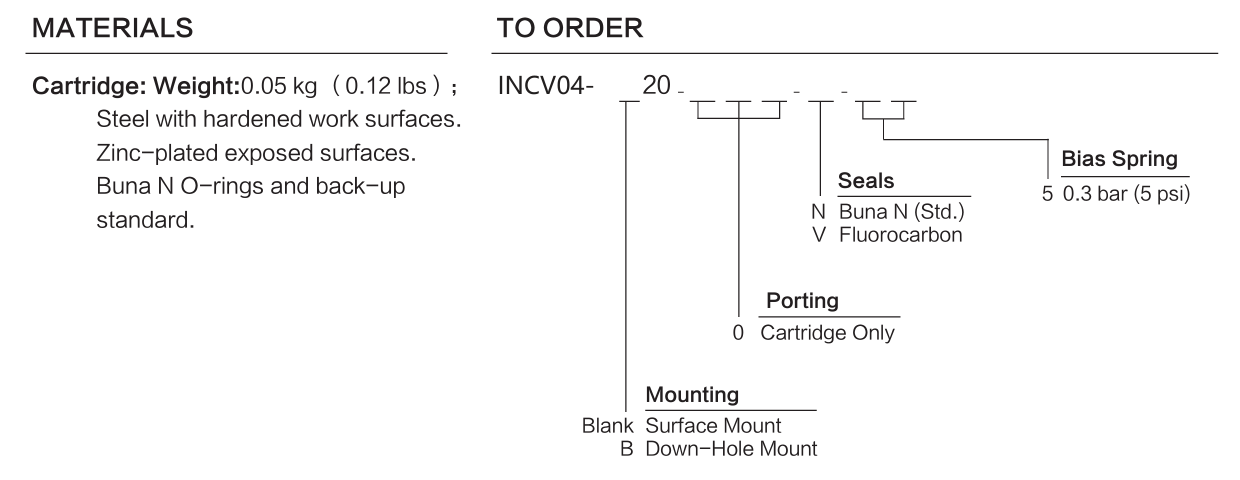

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
