Hydraulic Symbol
Description
A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.
Operation
The INCV10-20B allows flow passage from port 1 to port 2, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 1 to open to port 2.
Technical Data
| Operating Pressure | 240 bar |
|---|---|
| Flow | See Pressure Drop vs Flow graph |
| Cavity | T10-2B |
| Internal Leakage | 0.10 ml/minute (2 drops/minute) max. at 240 bar |
| Temperature | -40°C to 120°C |

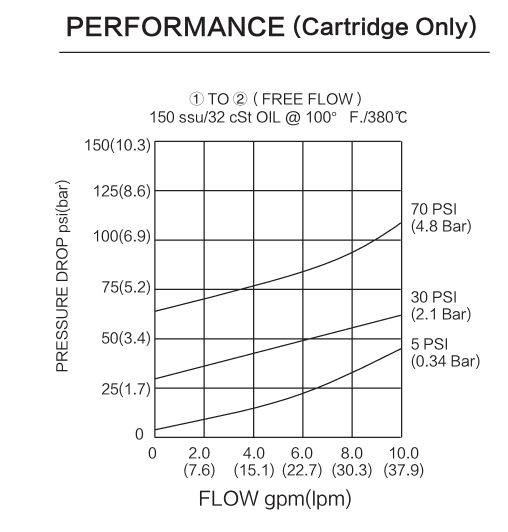

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

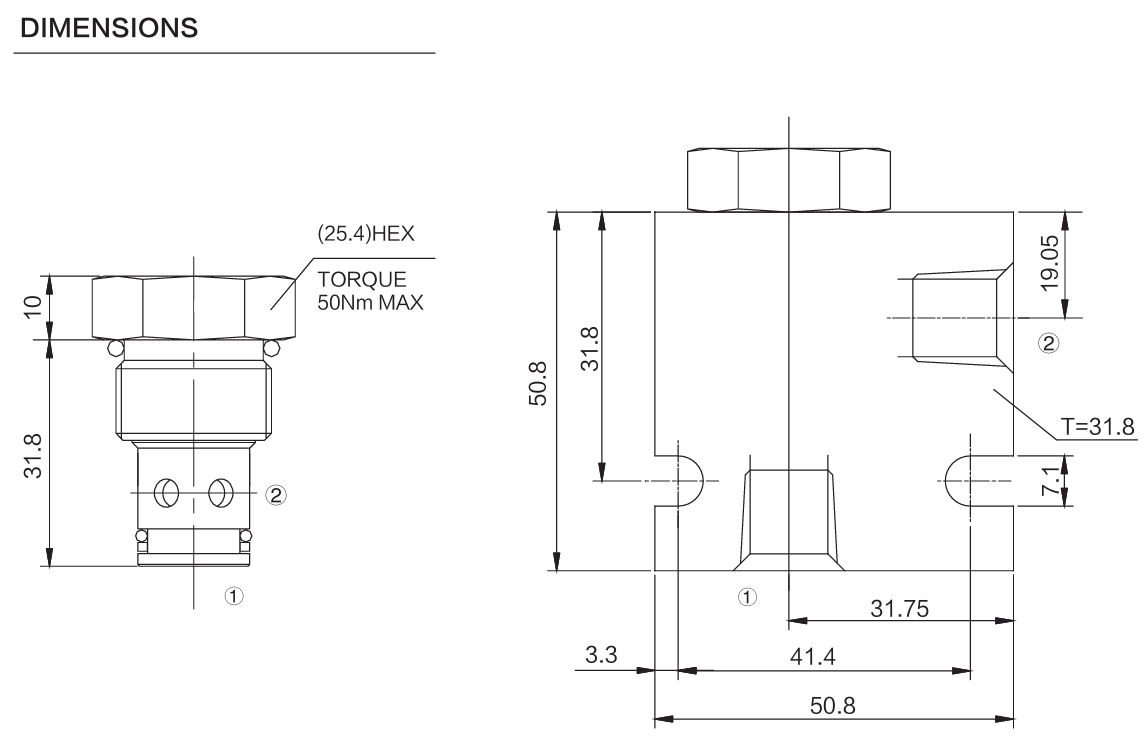

Dimensions
Dimension drawing is provided for installation and cavity review.

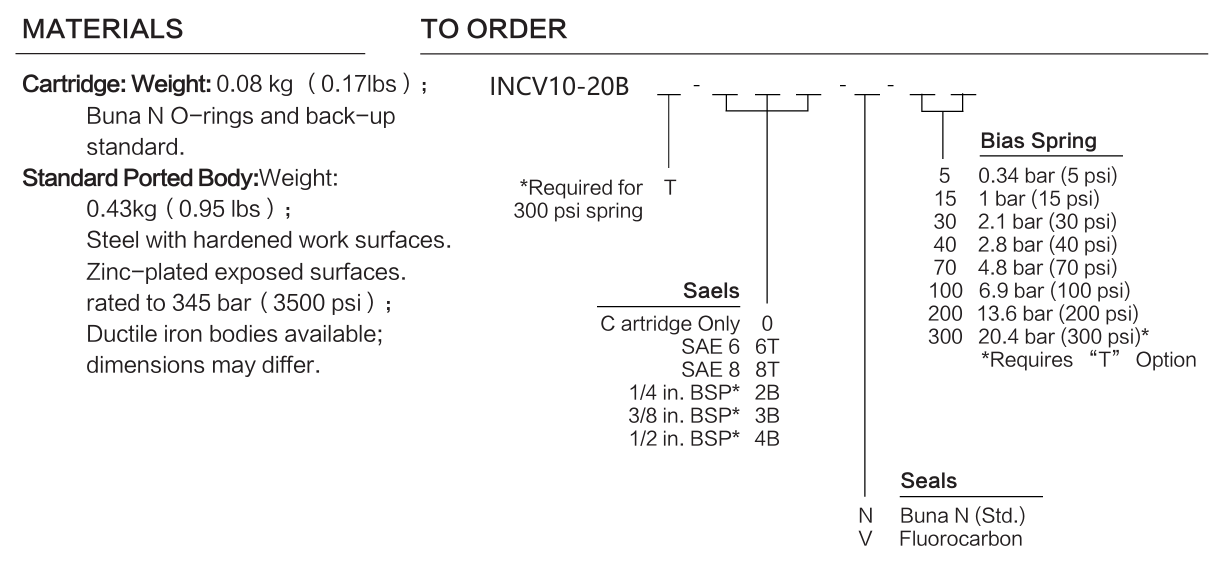

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
