Hydraulic Symbol
Description
A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner.
Operation
In the dividing mode, the INFD50-45 will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed, the valve will combine flows from port 2 and port 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at "bottomed" conditions in cylinder applications and at "stalled" conditions in motor applications.
Technical Data
| Operating Pressure | 345 bar (5000 psi) |
|---|---|
| Flow | Flow Options: Input Flow 15.1 lpm (4 gpm), Ratio 50:50, Model Code 22; Input Flow 22.7 lpm (6 gpm), Ratio 50:50, Model Code 33; Input Flow 34.1 lpm (9 gpm), Ratio 50:50, Model Code 44; Input Flow 45.4 lpm (12 gpm), Ratio 50:50, Model Code 66. Synchronizing Flow: Approximately 10% of maximum inlet flow |
| Cavity | T10-4A; See bottom of this catalog. |
| Temperature | -40°C to 120°C |

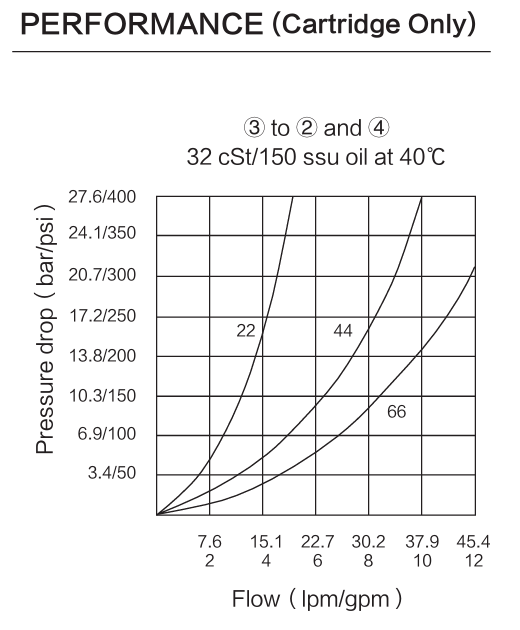

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

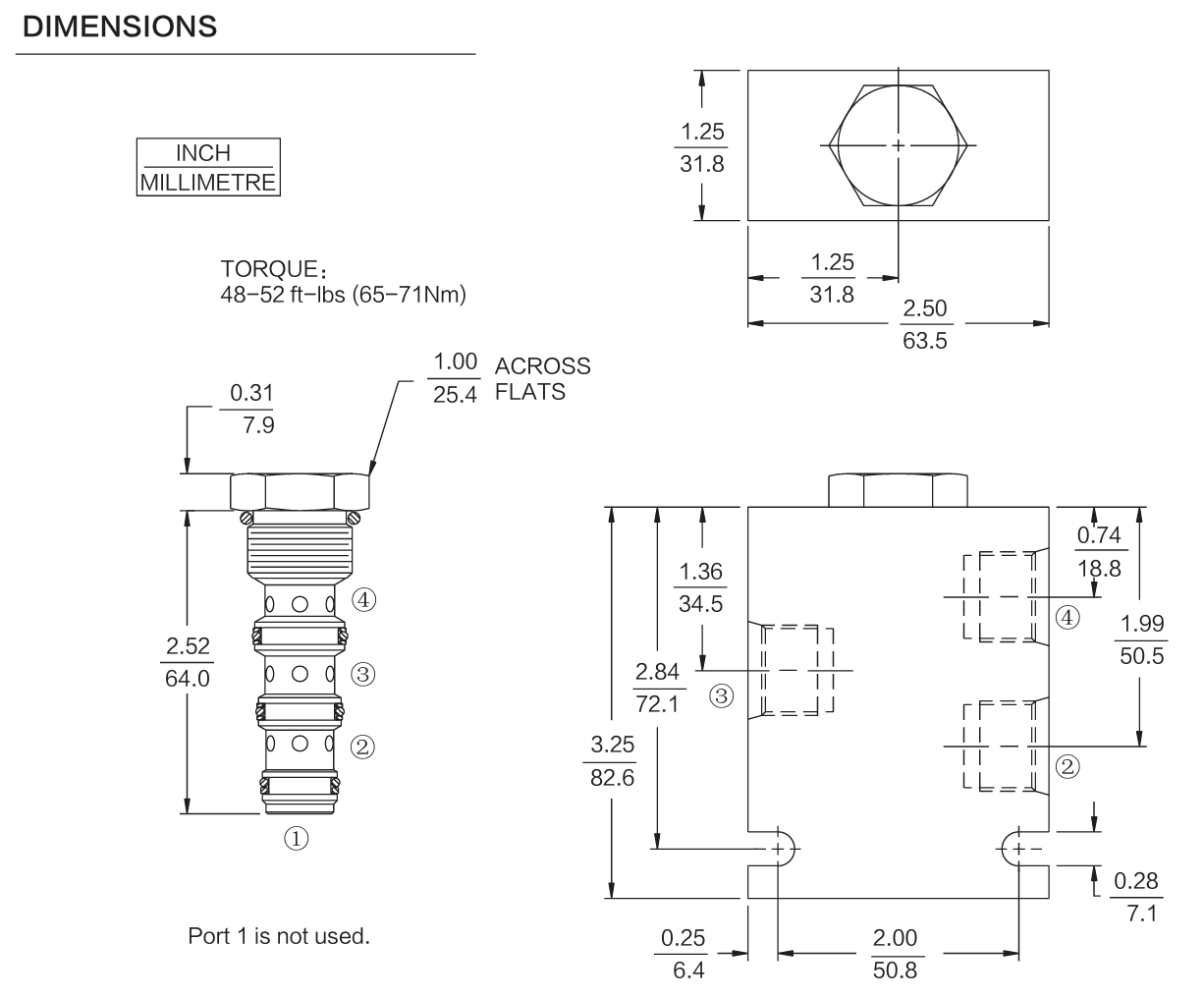

Dimensions
Dimension drawing is provided for installation and cavity review.

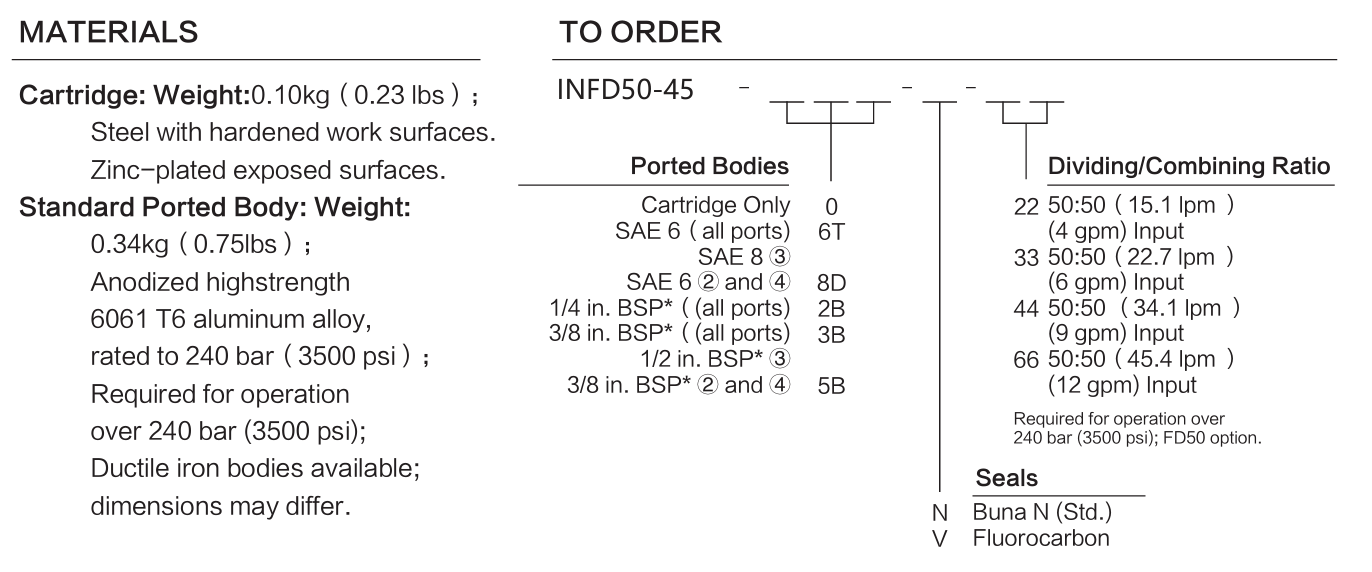

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
