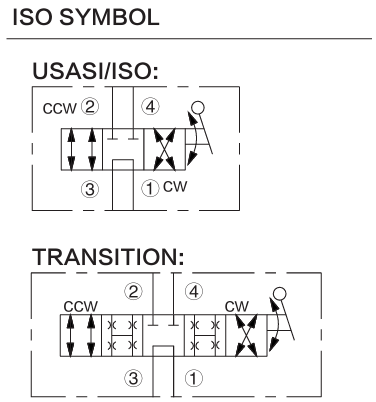

Hydraulic Symbol
Description
Manually-operated four-way, three-position directional valve, with adaptability to a variety of adjustment operators (ordered separately), in a variety of spool configurations.
Operation
Three positions: centered, 45° counterclockwise, and 45° clockwise. In the center position ports 1 and 3 are open while ports 2 and 4 are closed. In the 45° counterclockwise from center position, ports 1 and 4 are open while ports 2 and 3 are open. In the 45° clockwise from center position, the port connection text is Technical Data Pending due to unclear OCR. All ports are partially open in transition.
Technical Data
| Operating Pressure | 240 bar / 3500 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-4A |
| Internal Leakage | 164 cc/minute (10 cu. in./minute) at 240 bar / 3500 psi |
| Temperature | -40°C to 120°C with standard Buna N seals |

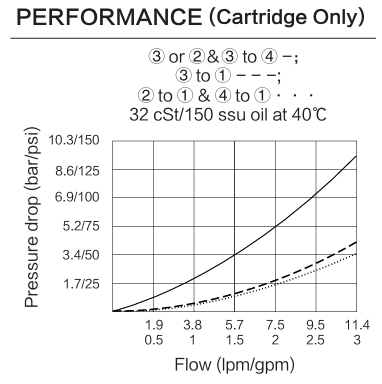

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

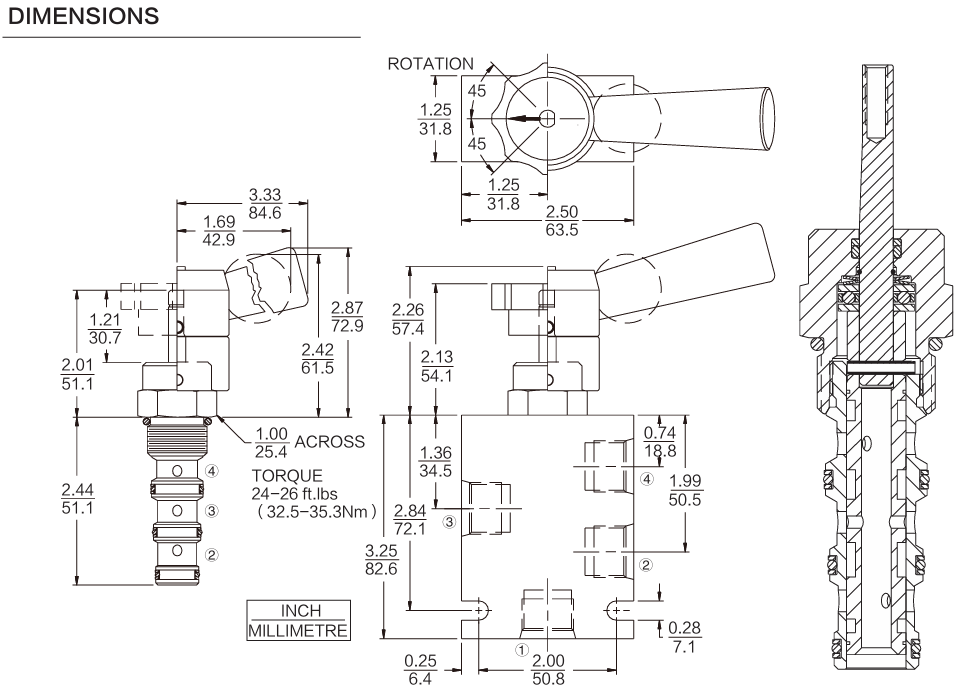

Dimensions
Dimension drawing is provided for installation and cavity review.

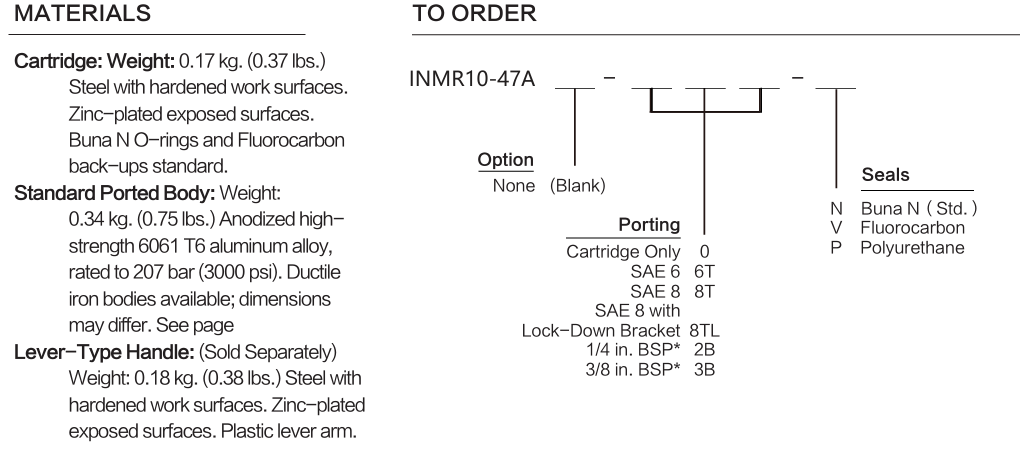

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
