Hydraulic Symbol
Description
A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve.
Operation
The INNV12-20 increases the size of its orifice from fully closed to fully open with counterclockwise adjustment rotation.
Technical Data
| Operating Pressure | 240 bar (3500 psi) |
|---|---|
| Flow | 113.6 lpm (30 gpm) nominal at 7 bar (100 psi) at full open 4.5 turns |
| Cavity | T12-2A; See bottom of this catalog. |
| Internal Leakage | 0.15 ml/minute (3 drops/minute) max. at shut-off |
| Temperature | -40°C to 120°C |

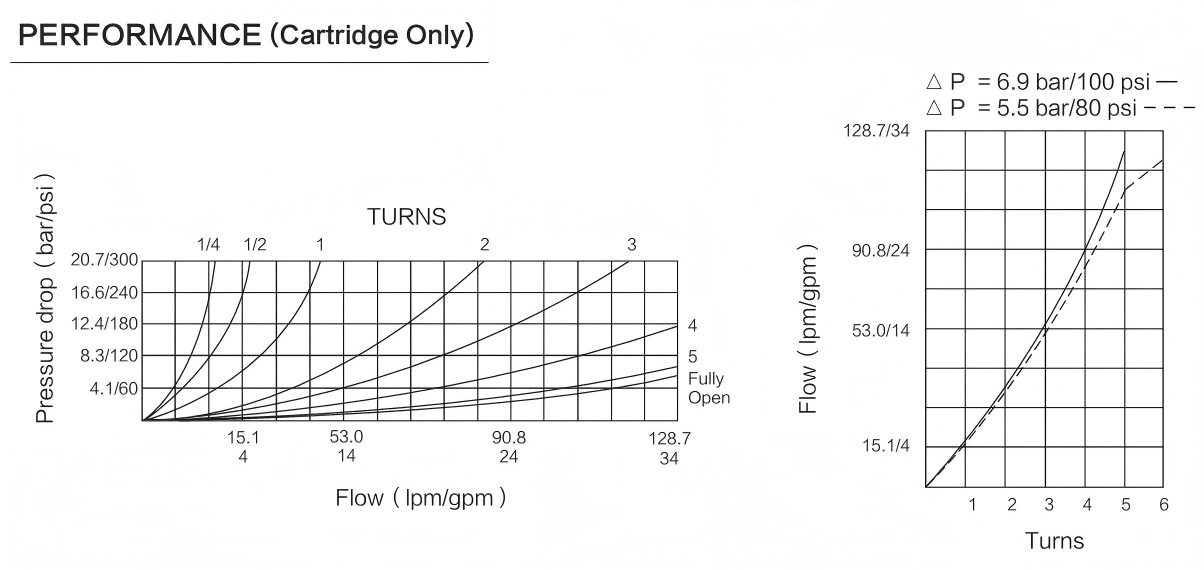

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

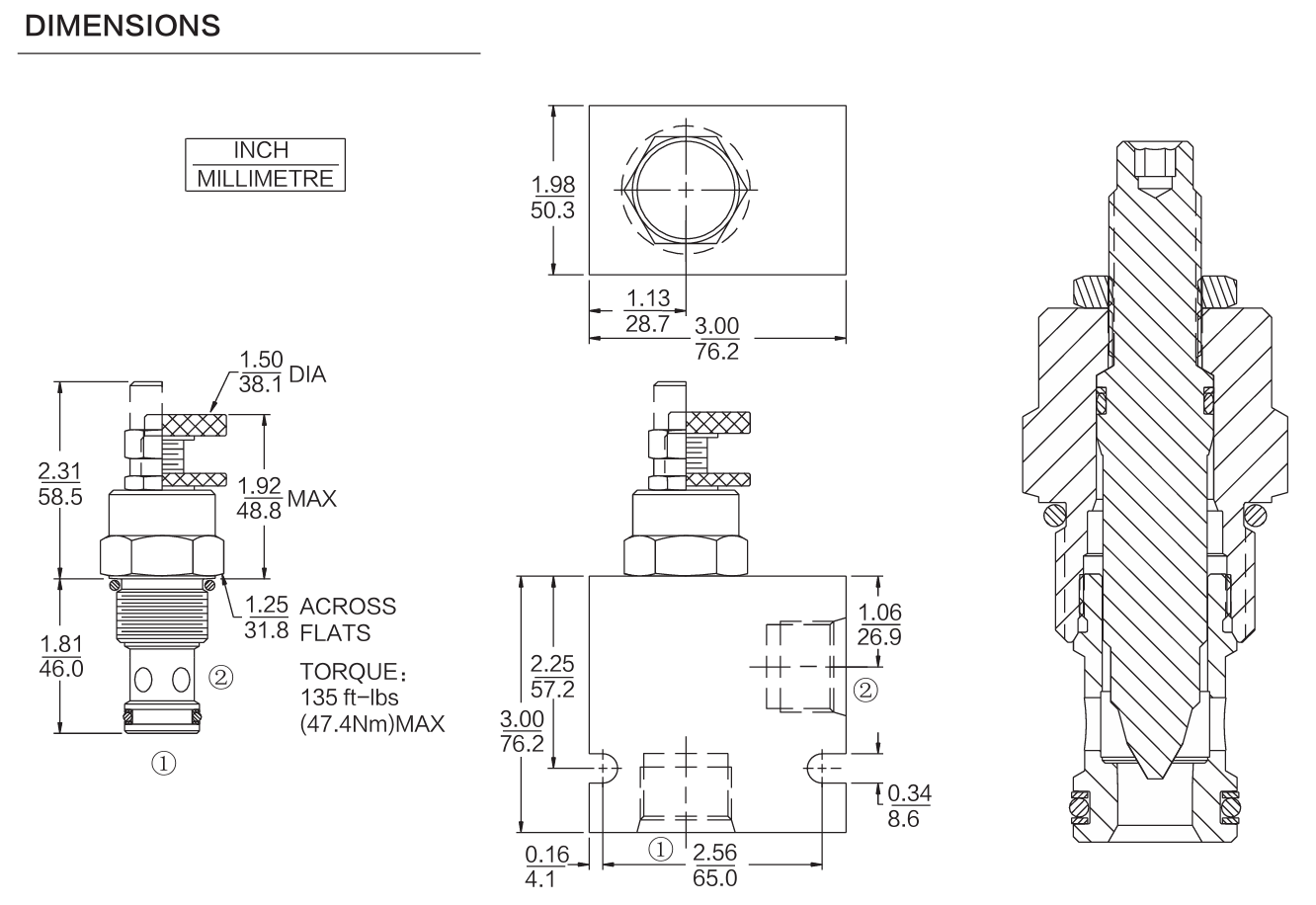

Dimensions
Dimension drawing is provided for installation and cavity review.

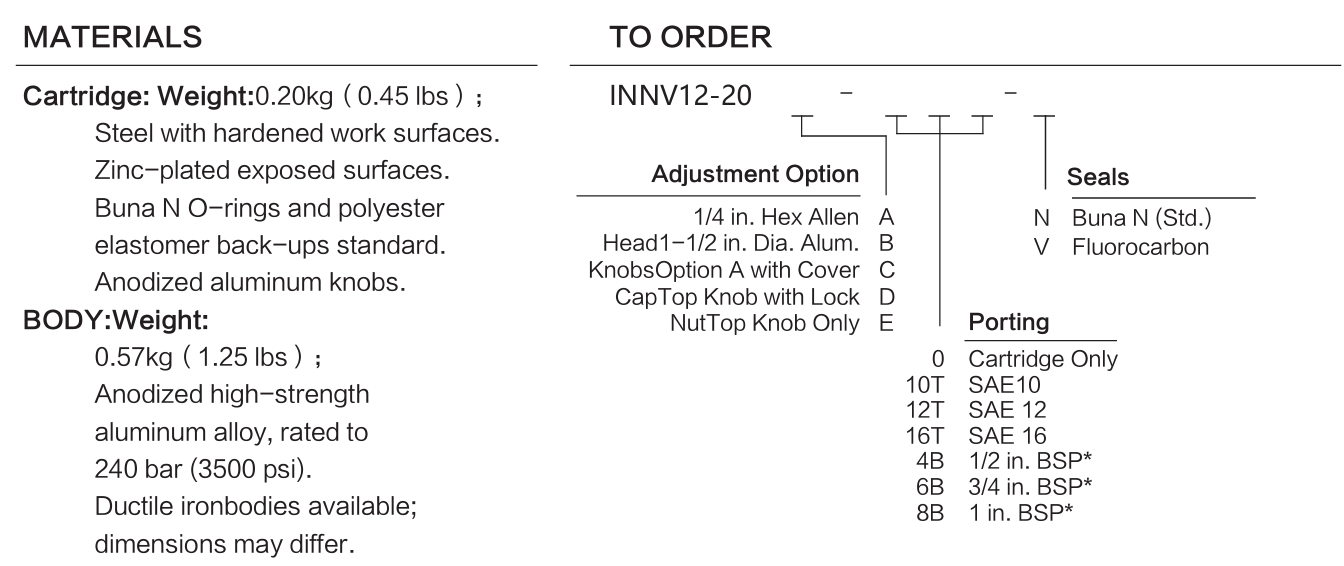

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
Request a Quote
