Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.
Operation
In neutral (unpiloted), the valve allows flow passage from port 3 to port 2 bidirectionally, while flow is blocked at port 4. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed from the cartridge flow paths. On remote pilot signal at port 1, the valve shifts to open from port 3 to port 4, while blocking flow at port 2. Because of the vented spring chamber, the cartridge may be fully pressurized at any port without affecting required pilot pressure.
Technical Data
| Operating Pressure | 240 bar / 3500 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-4A |
| Internal Leakage | 82 cc/minute (5 cu. in./minute) max. at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C with Buna N seals |

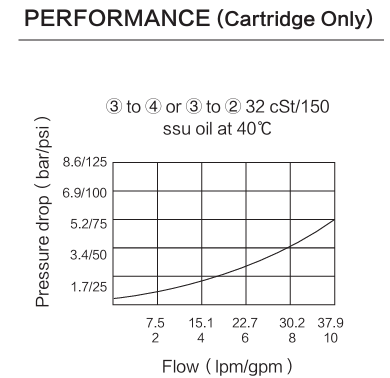

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

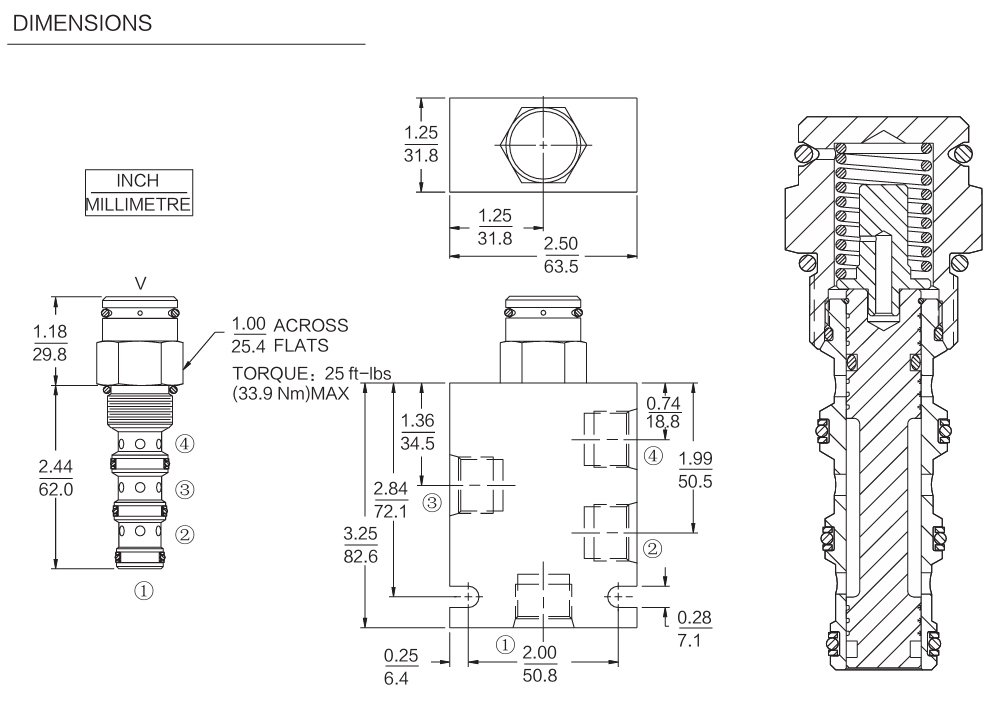

Dimensions
Dimension drawing is provided for installation and cavity review.

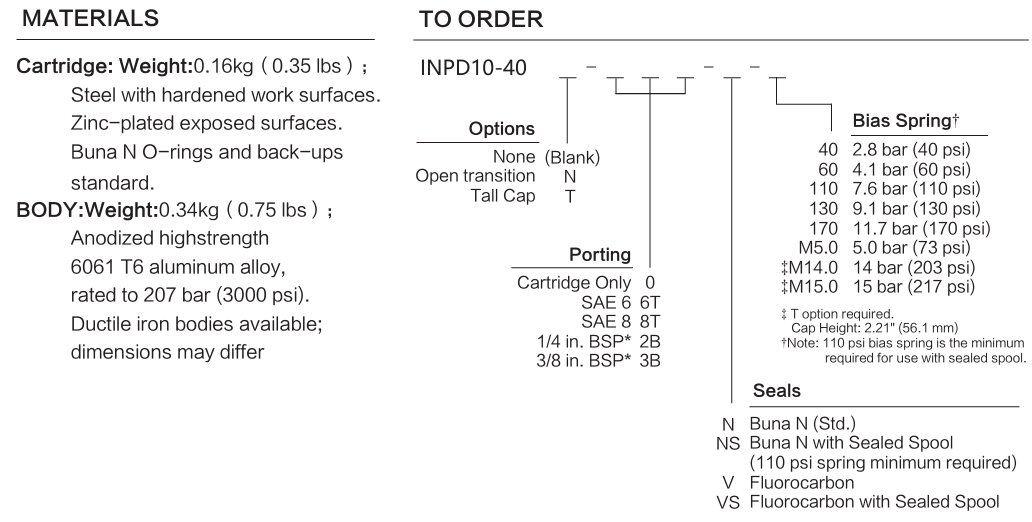

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
