Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic pressure reducing/relieving valve with internal pilot and internal spring chamber drain, designed to act as a pressure-regulating device for secondary circuits.
Operation
In its steady state, the INPR10-36 allows flow to pass bidirectionally from port 2 to port 1 with the spring chamber constantly drained at port 3. On attainment of a pre-determined pressure at port 1, the cartridge shifts to restrict input flow at port 2, thereby regulating pressure at port 1. In this mode, the valve will also relieve port 1 to port 3. Deadband (from reducing to relieving) pressure rise over reduced pressure setting: non-flow condition approximately 0.55 bar (8 psi); with flow approximately 2.1 bar (30 psi).
Technical Data
| Operating Pressure | 210 bar (3000 psi); Proof Pressure: 390 bar (5700 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-3A |
| Temperature | -40°C ~ 120°C with Buna N seals |

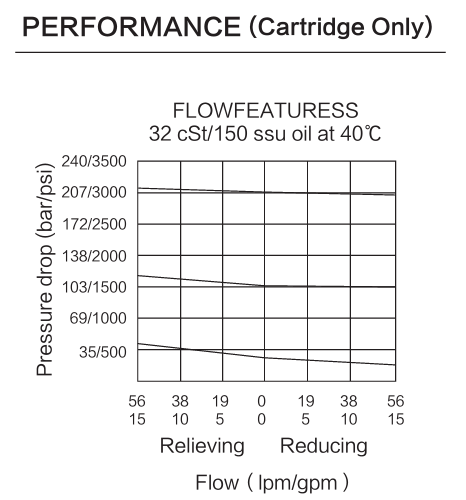

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.

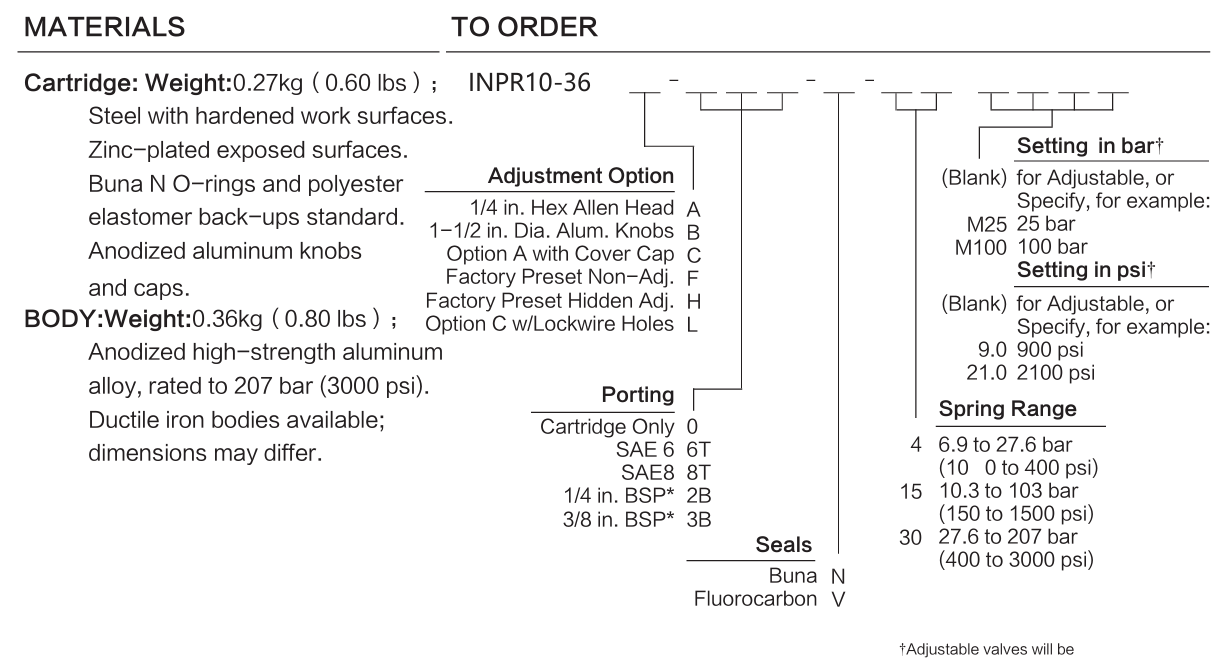

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
