INPV70-30 Proportional Flow Control Cartridge

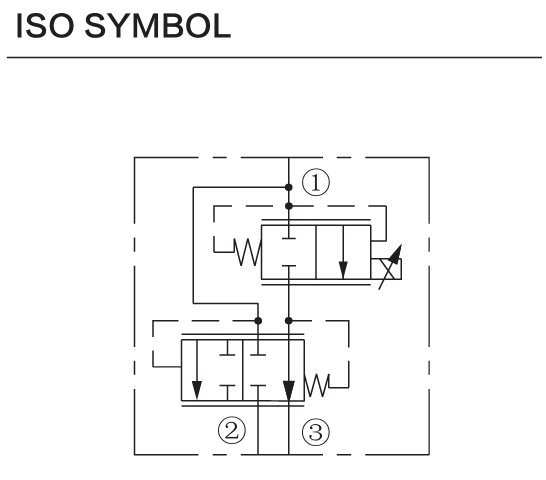

A solenoid-operated, electrically-variable, three-port, pressure-compensated, spool-type, normally closed when de-energized, proportional flow control valve. It can be used as a priority-type flow regulator with pressure-compensated, regulated and bypass flow. It can also be used as a restrictive-type 2-way, pressure-compensated flow regulator when the bypass line (port 2) is blocked.

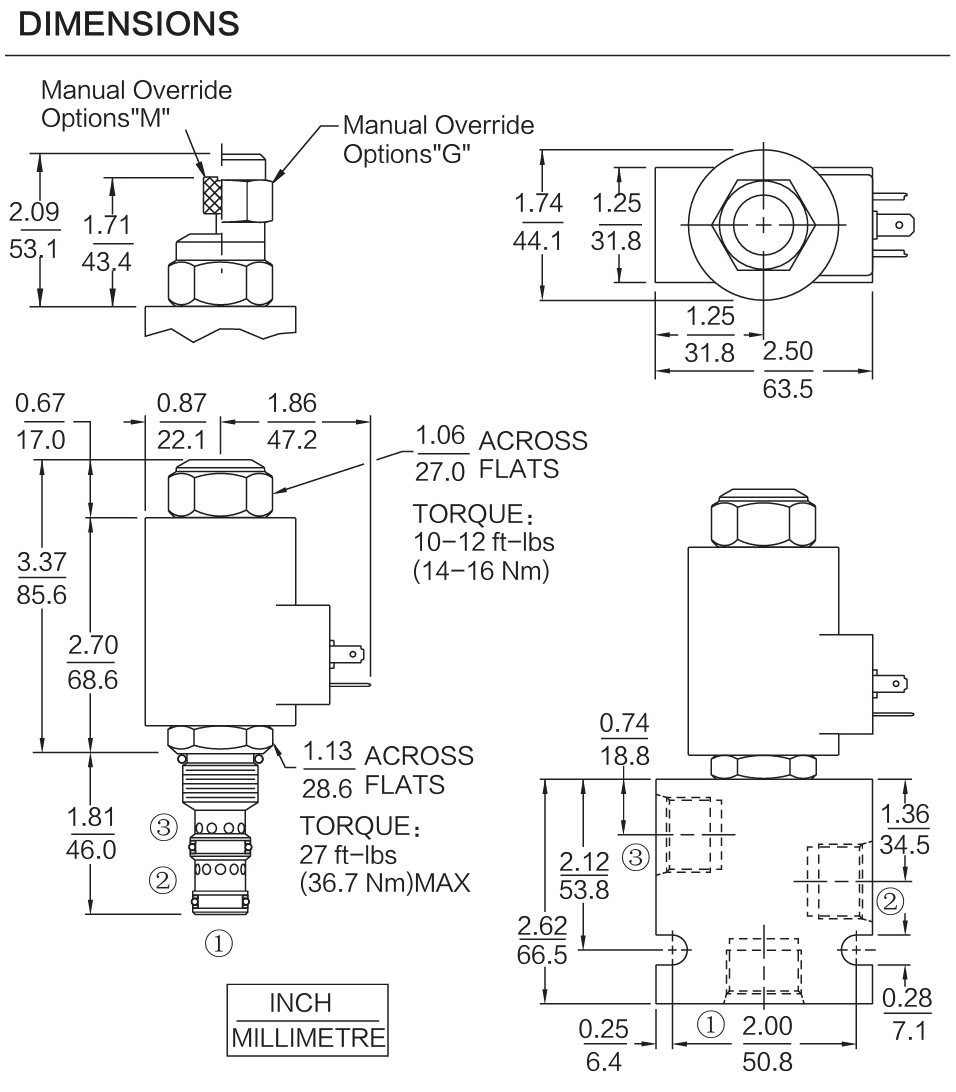

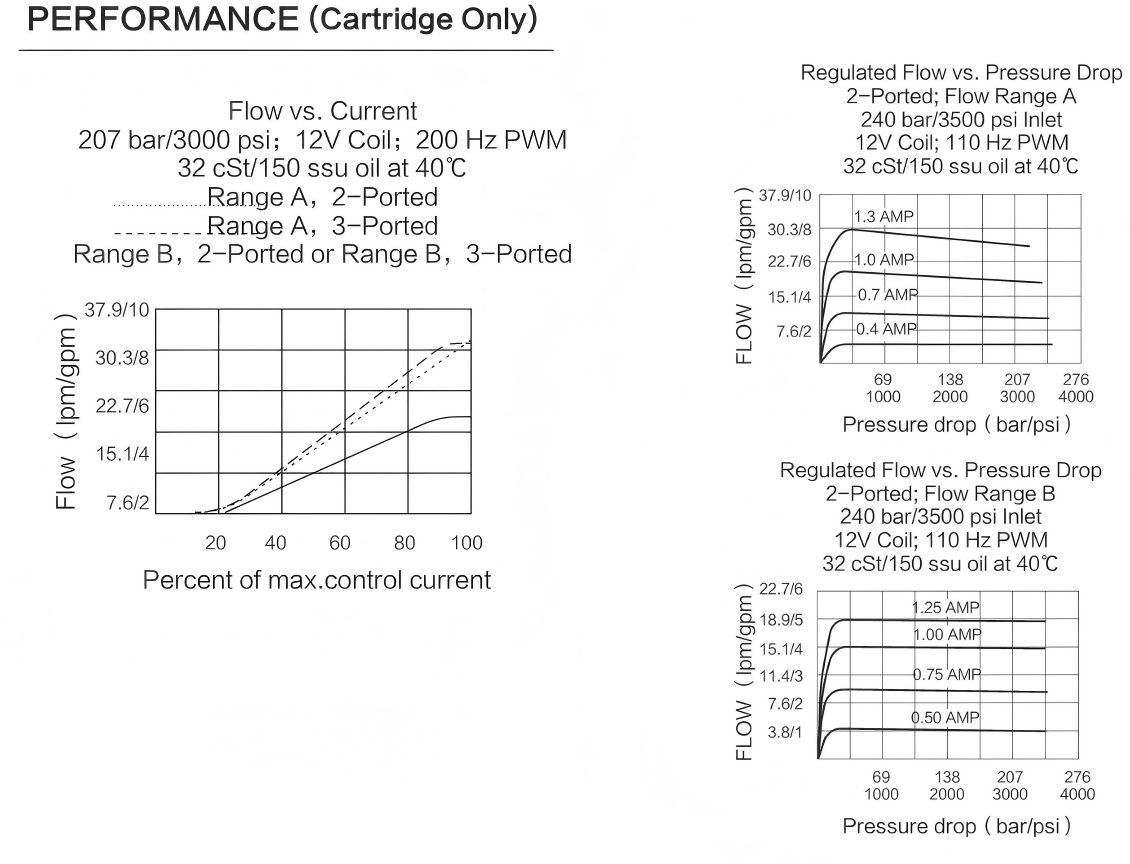

The INPV70-30 will regulate flow out of port 3 regardless of system working pressure. With an increasing current applied to the solenoid, the valve will increase output flow. Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult factory. Operation of Manual Override: To engage, turn clockwise approximately 1 turn to reach start point. Continue another approximately 5 turns to full shift. To disengage, turn counterclockwise approximately 6 turns to positive stop.
