Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, poppet-type, hydraulic relief valve intended for lower flow circuits requiring low internal leakage.
Operation
The INRV08-20 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the spring-opposed poppet from its seat. Note: The INRV08-20 may be used in cross-over relief applications (back pressure on port 2) with the use of the "C" double back-up ring seal option. See Ordering Table.
Technical Data
| Operating Pressure | 248 bar (3600 psi) |
|---|---|
| Flow | The Performance Chart illustrates flow handling capacity at maximum setting for each spring range option. Pressure rise will vary with spring range and with setting within range due to flow forces. Consult factory for specific flow characteristic values. |
| Cavity | T08-2A |
| Internal Leakage | 0.25 ml/minute (5 drops/minute) max. to 75% of nominal setting |
| Temperature | -40°C ~ 120°C |

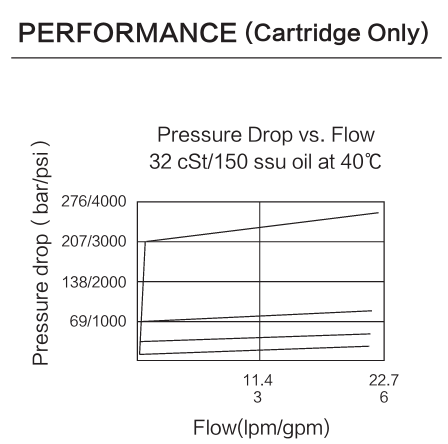

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

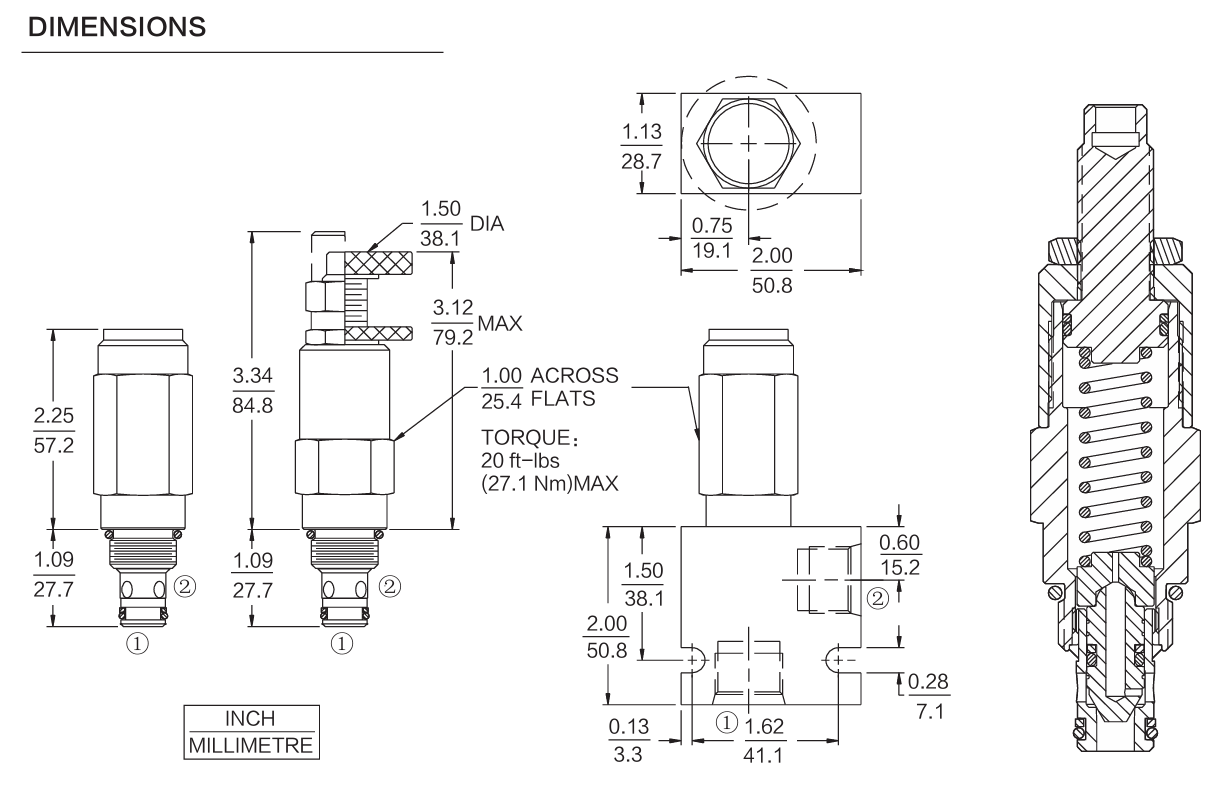

Dimensions
Dimension drawing is provided for installation and cavity review.

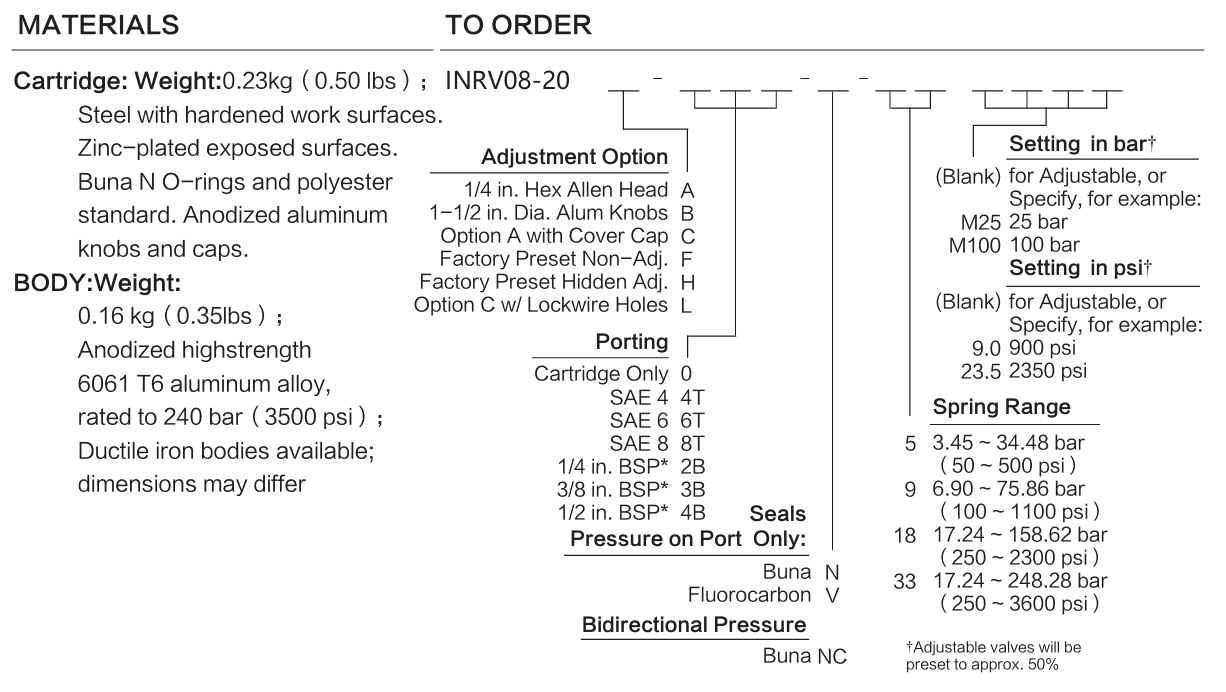

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
