Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, differential area, poppet-type hydraulic relief valve for use as a pressure limiting device in more demanding hydraulic circuits, requiring low hysteresis and low internal leakage.
Operation
The INRV08-22 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the poppet from its seat. The cartridge offers smooth transition in response to load changes in common hydraulic circuits. Note: INRV08-22 may be used in cross-over relief applications (back pressure on port 2) with the use of the "C" double back-up ring seal option. See Ordering Table.
Technical Data
| Operating Pressure | 221 bar (3200 psi) |
|---|---|
| Flow | The Performance Chart illustrates flow handling capacity at maximum setting for each spring range option. Pressure rise will vary with spring range and with setting within range due to flow forces. Consult factory for specific flow characteristic values. |
| Cavity | T08-2E |
| Internal Leakage | 0.25 cc/minute (5 drops/minute) max. to 85% of nominal setting |
| Temperature | -40°C ~ 120°C |

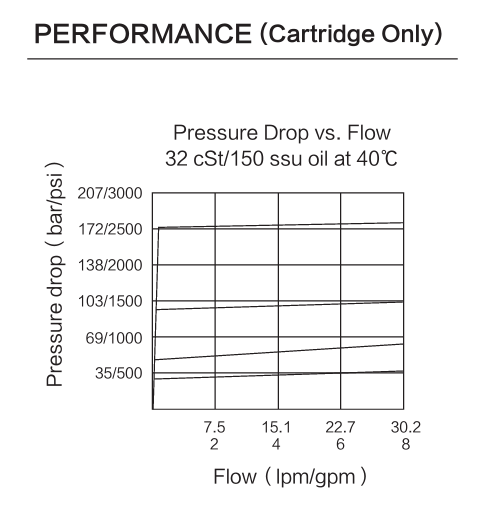

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.

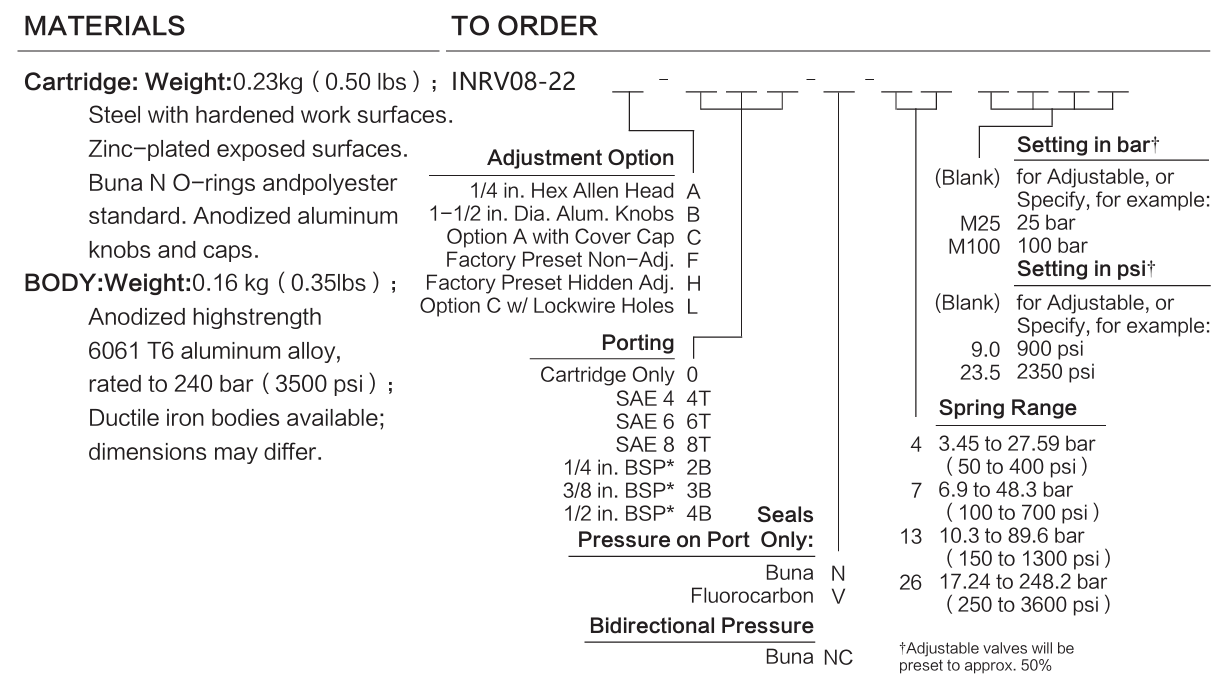

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
