Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, differential area, poppet-type hydraulic relief valve for use as a pressure limiting device in more demanding hydraulic circuits, requiring low hysteresis and low internal leakage.
Operation
The INRV10-22 datasheet operation section states that due to manufacturing tolerances, it may be possible to adjust the valve either lower or higher than the nominal ratings shown below. Note: INRV10-22 may be used in cross-over relief applications (back pressure on port 1) with the use of the "C" double back-up ring seal option. See Ordering Table.
Technical Data
| Operating Pressure | 241 bar (3500 psi) |
|---|---|
| Flow | The Performance Chart illustrates flow handling capacity at maximum setting for each spring range option. Pressure rise will vary with spring range and with setting within range due to flow forces. Consult factory for specific flow characteristic values. |
| Cavity | T10-2B |
| Internal Leakage | 0.25 cc/minute (5 drops/minute) max. to 85% of nominal setting |
| Temperature | -40°C ~ 120°C |
Performance Curve

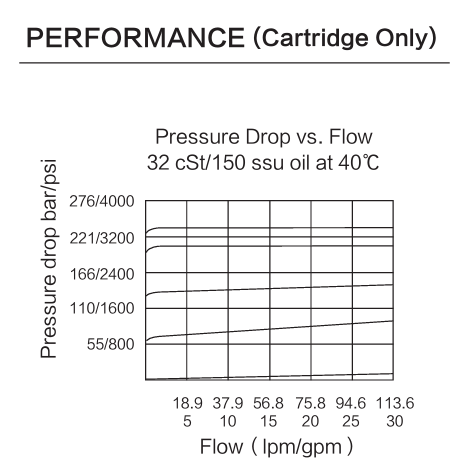

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

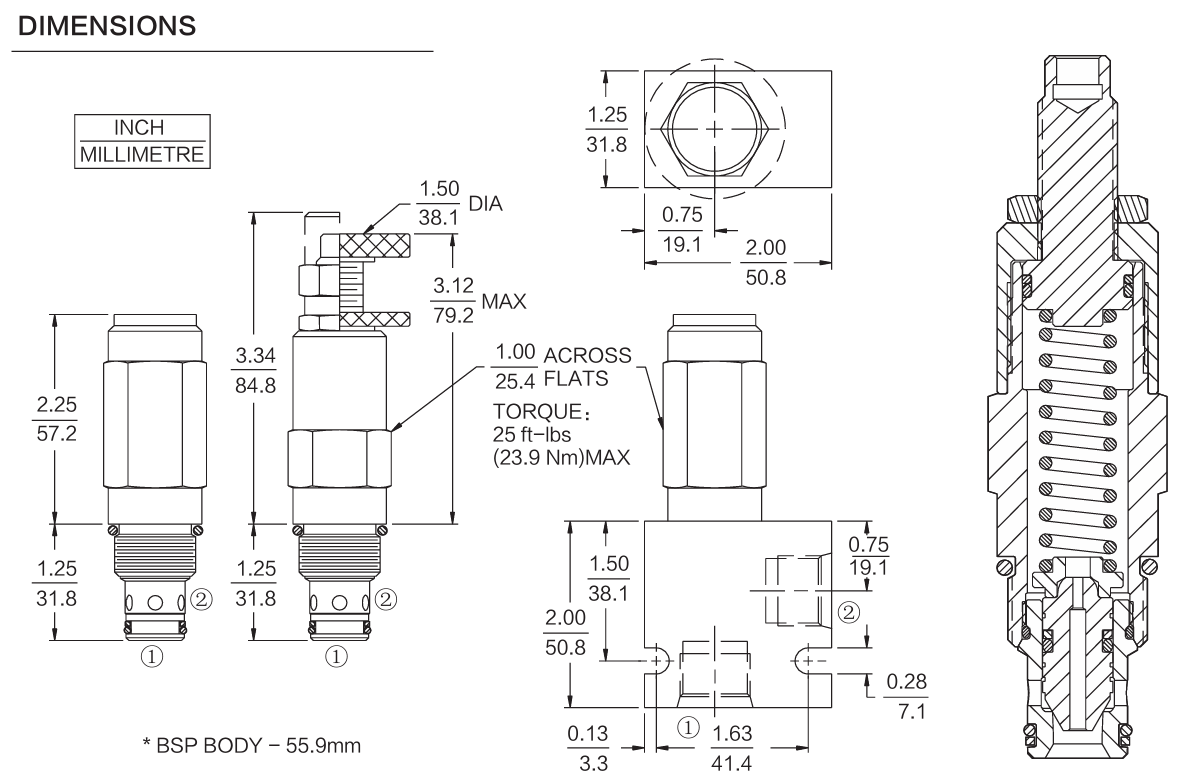

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
