Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis, low leakage and low pressure overshoot.
Operation
The INRV10-23 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the piloting relief off its seat, allowing the main spool to shift, opening port 1 to port 2. Note: The INRV10-23 may be used in cross-over relief applications; however, it is not recommended for use as in parallel cross-over relief or anti-cavitation applications. Consult factory for proper flow path connections.
Technical Data
| Operating Pressure | 20.7 ~ 240 bar (300 ~ 3500 psi) |
|---|---|
| Flow | 7.6 ~ 113.6 lpm (2 ~ 30 gpm) |
| Cavity | T10-2B |
| Internal Leakage | 0.5 ml/minute (5 drops/minute) max. to 80% of nominal setting |
| Temperature | -54°C ~ 135°C (-65°F ~ 275°F) with Buna N seals |

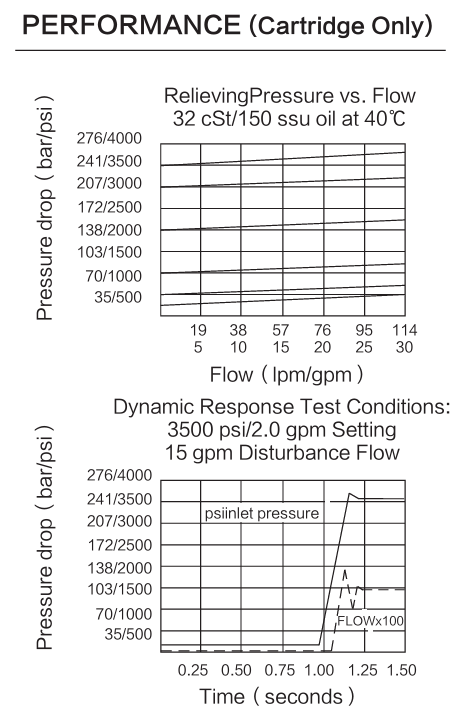

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.

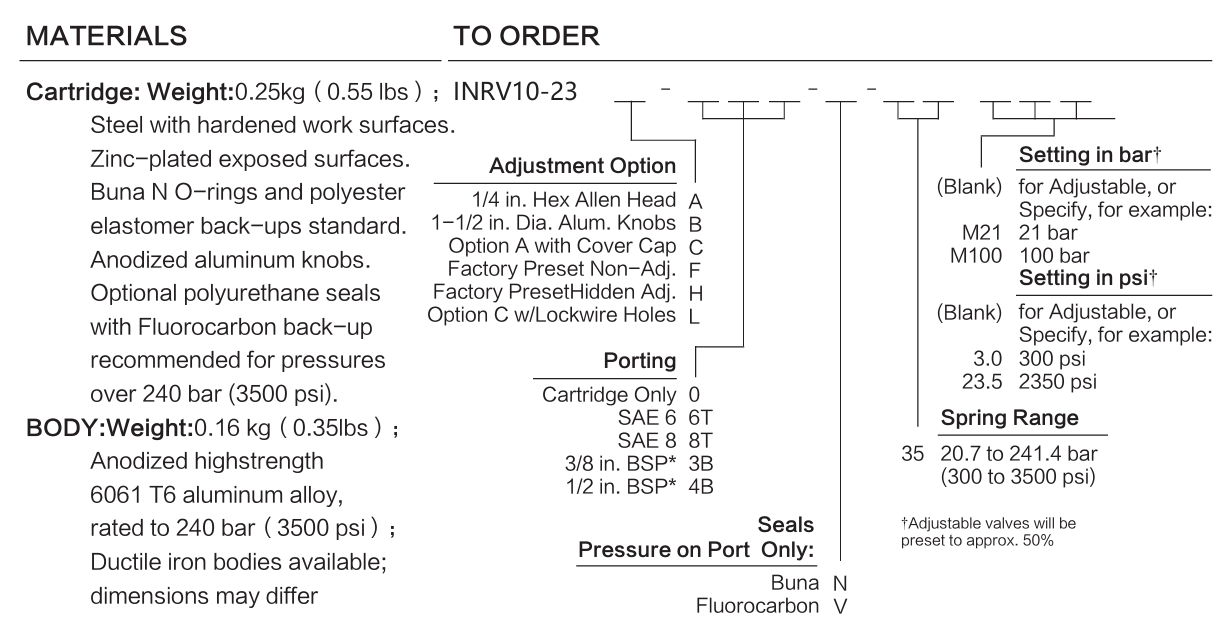

Materials & Ordering Options
