Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve, intended for use as a pressure limiting device in demanding hydraulic circuits which require fast response and low hysteresis.
Operation
The INRV12-26 blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the piloting relief off its seat, allowing the main (second stage) spool to shift, opening port 1 to port 2. The cartridge offers smooth transition in response to load changes in demanding hydraulic circuits. Note: The INRV12-26 cannot be used in crossover relief applications.
Technical Data
| Operating Pressure | 241 bar (3500 psi); Proof Pressure: 420 bar (6090 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T12-2A |
| Internal Leakage | 115 cc/minute (7 cu. in./minute) max. to 85% of nominal setting |
| Temperature | -40°C ~ 120°C |

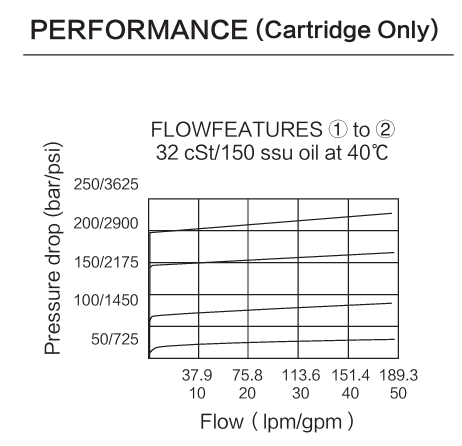

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

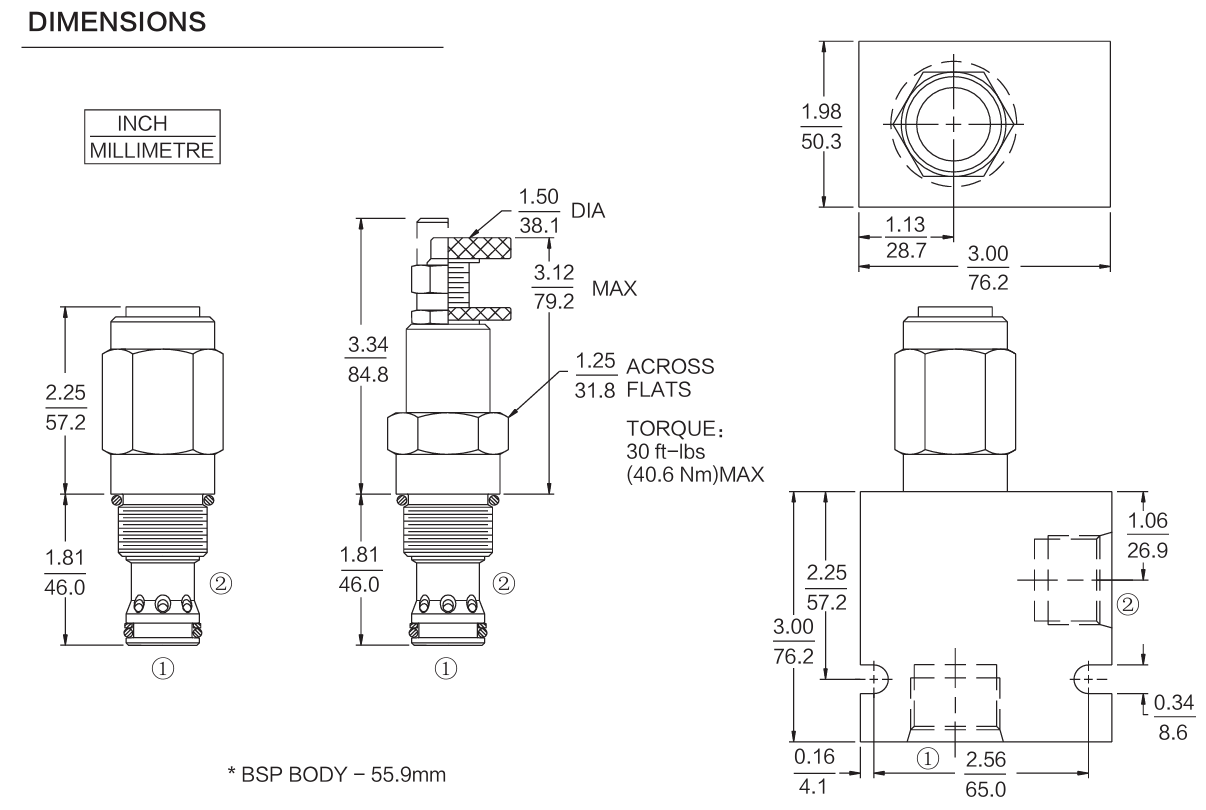

Dimensions
Dimension drawing is provided for installation and cavity review.

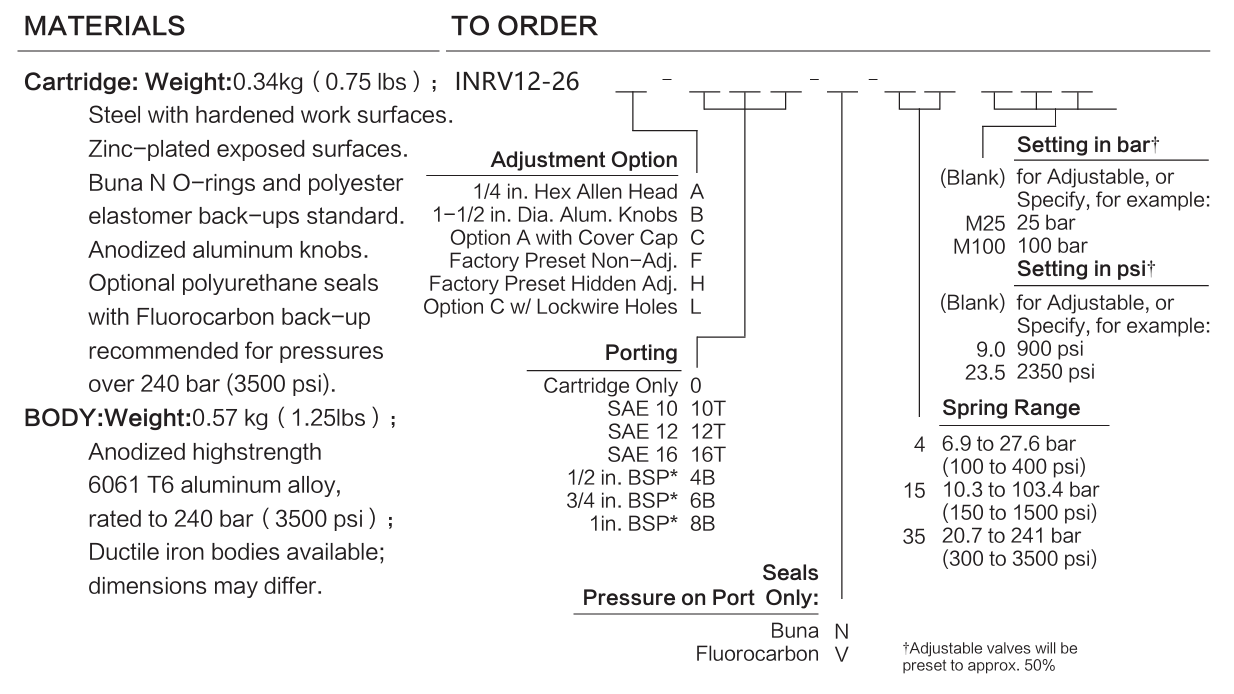

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
