Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuits.
Operation
When de-energized, the INSV08-20 acts as a check valve, allowing flow from port 1 to port 2, while blocking flow from port 2 to port 1. When energized, the cartridge's poppet lifts to open the port 2 to port 1 flow path. In this mode, flow from port 1 to port 2 is severely restricted. If this path is required, see model INSV08-22. Operation of Manual Override Option: To override, push button in, twist counterclockwise 180°, and release. In this position, the valve will remain open. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.
Technical Data
| Operating Pressure | 207 bar / 3000 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-2E |
| Internal Leakage | 0.15 cc/minute (3 drops/minute) max. at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C with Buna N seals |
Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

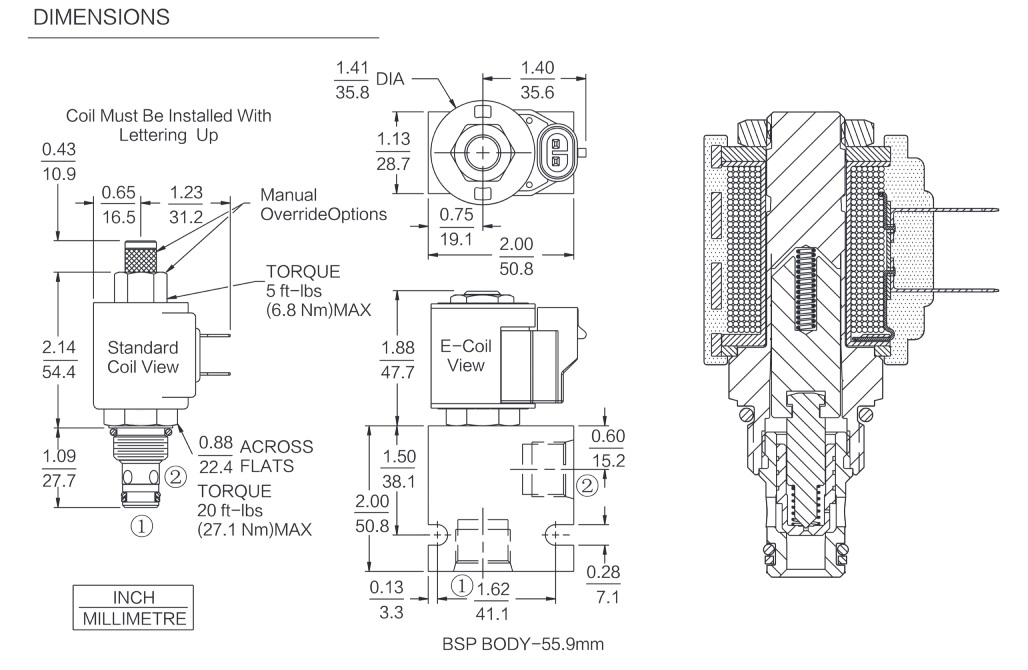

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

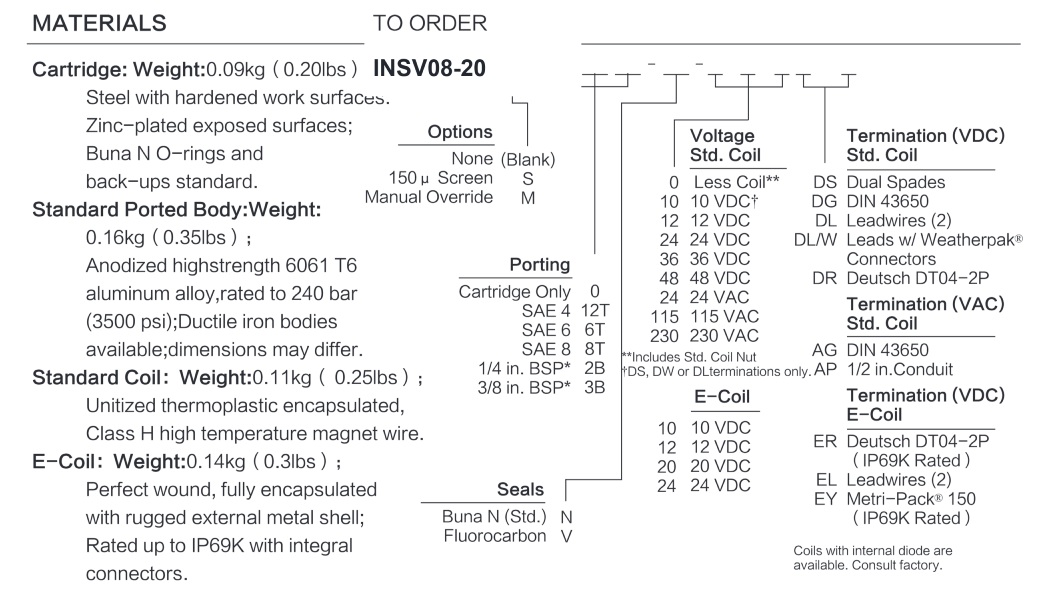

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
