Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally closed, direct-acting, poppet-type, bi-directional blocking, screw-in hydraulic cartridge valve, designed for low leakage in load-holding applications.
Operation
Technical Data Pending
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | 11.4 lpm (3.0 gpm) |
| Cavity | T08-2E |
| Internal Leakage | 5 drops / minute maximum at 207 bar (3000 psi) |
| Temperature | -40°C to 120°C with Buna N seals |
Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

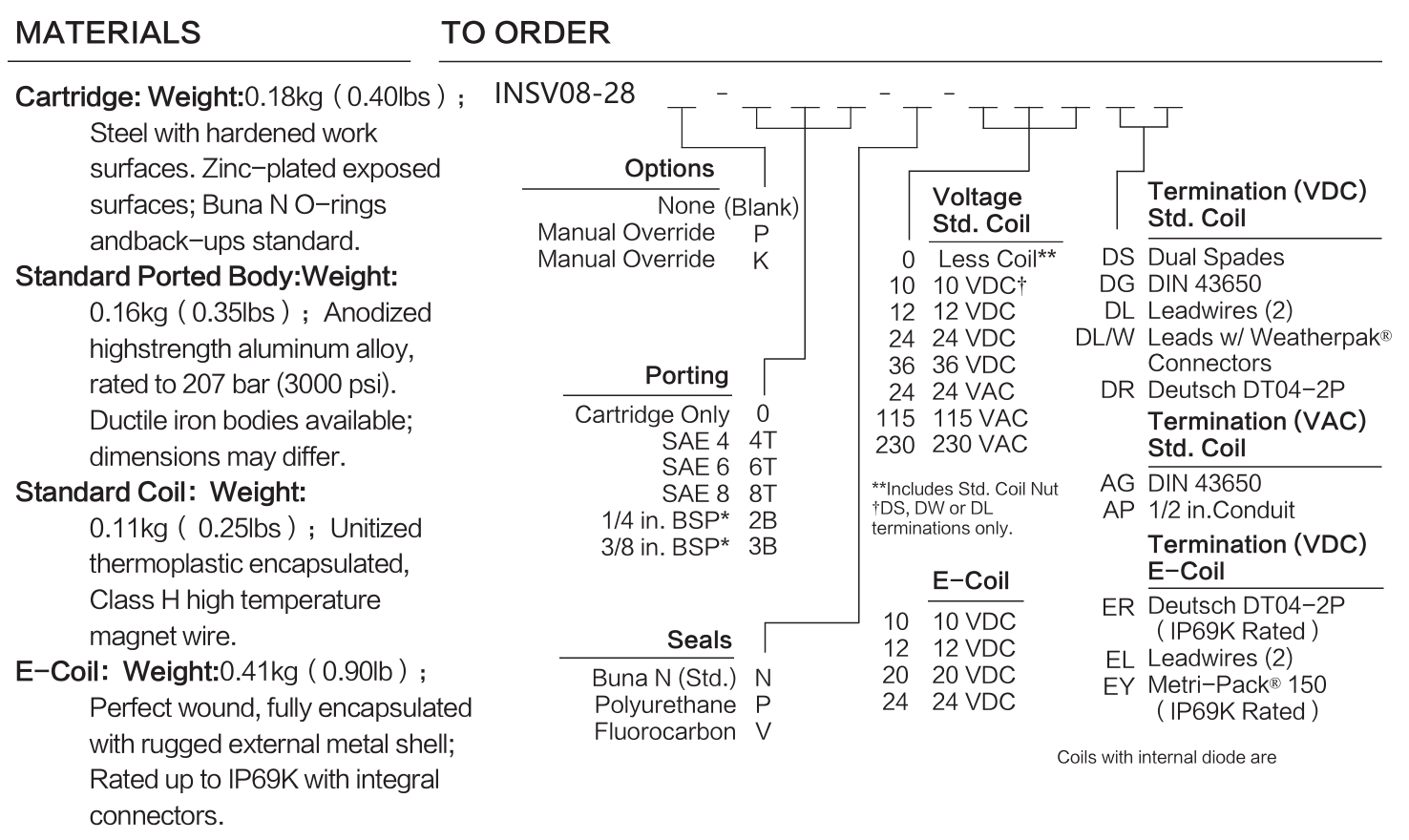

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
Request a Quote
