Hydraulic Symbol
Description
A solenoid-operated, 3-way, direct-acting, spool-type, screw-in hydraulic directional valve.
Operation
Technical Data Pending
Technical Data
| Operating Pressure | Technical Data Pending |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-3A |
| Internal Leakage | Technical Data Pending |
| Temperature | -40°C to 120°C with Buna N seals |

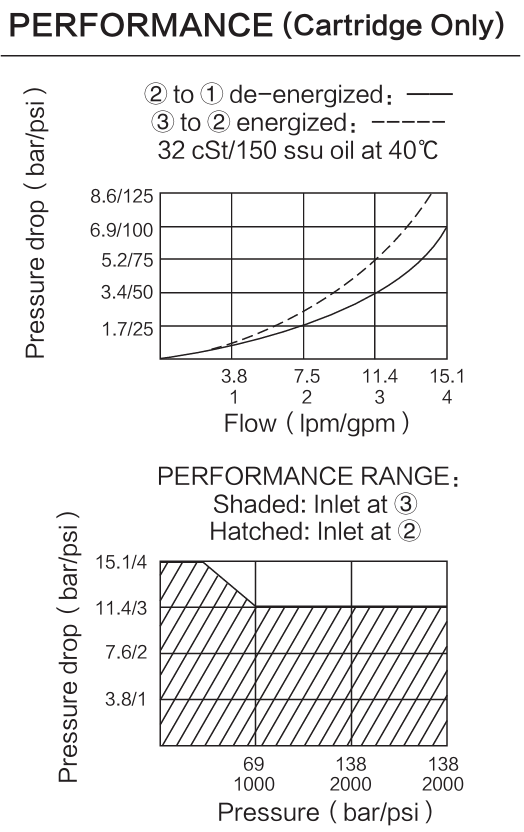

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

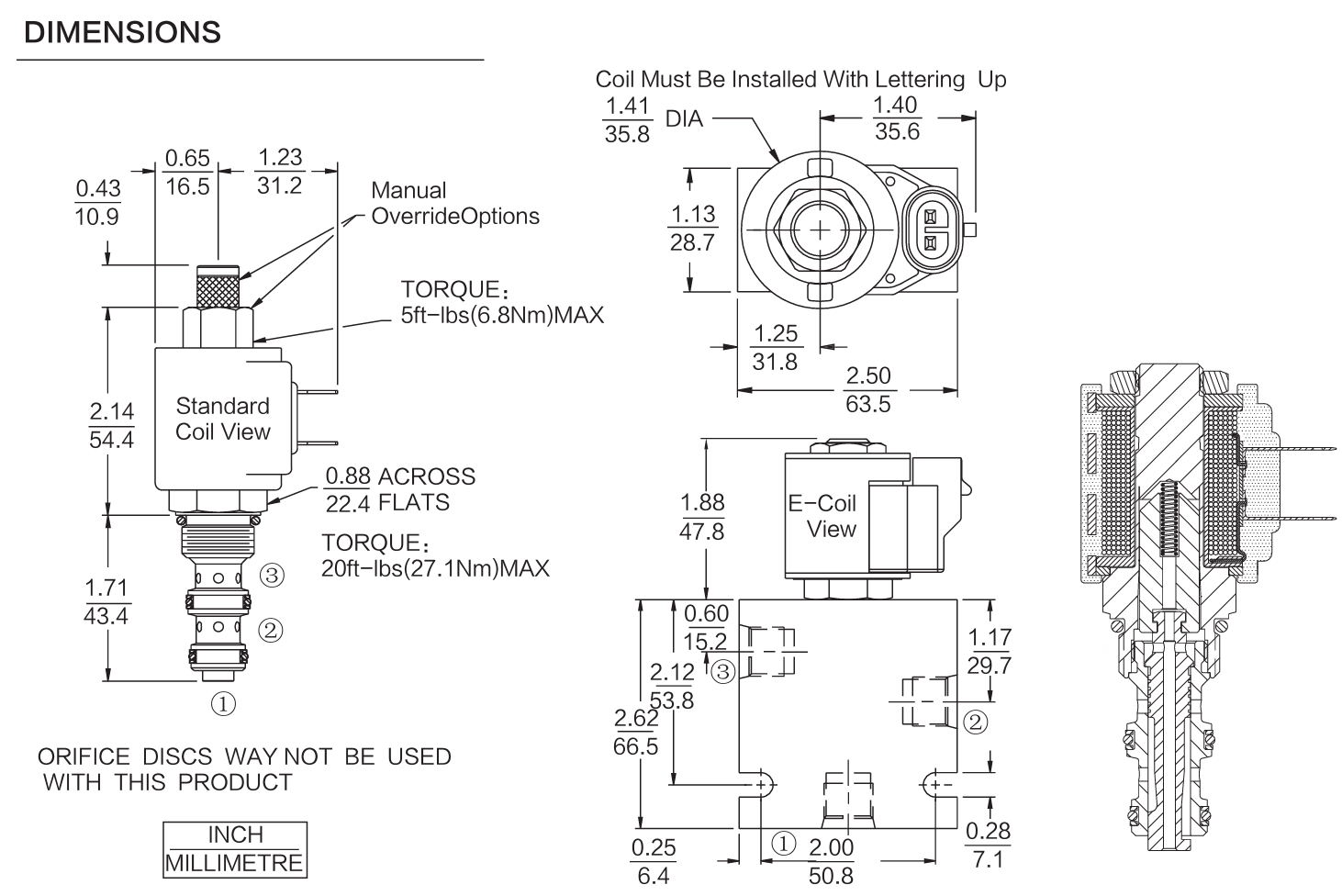

Dimensions
Dimension drawing is provided for installation and cavity review.

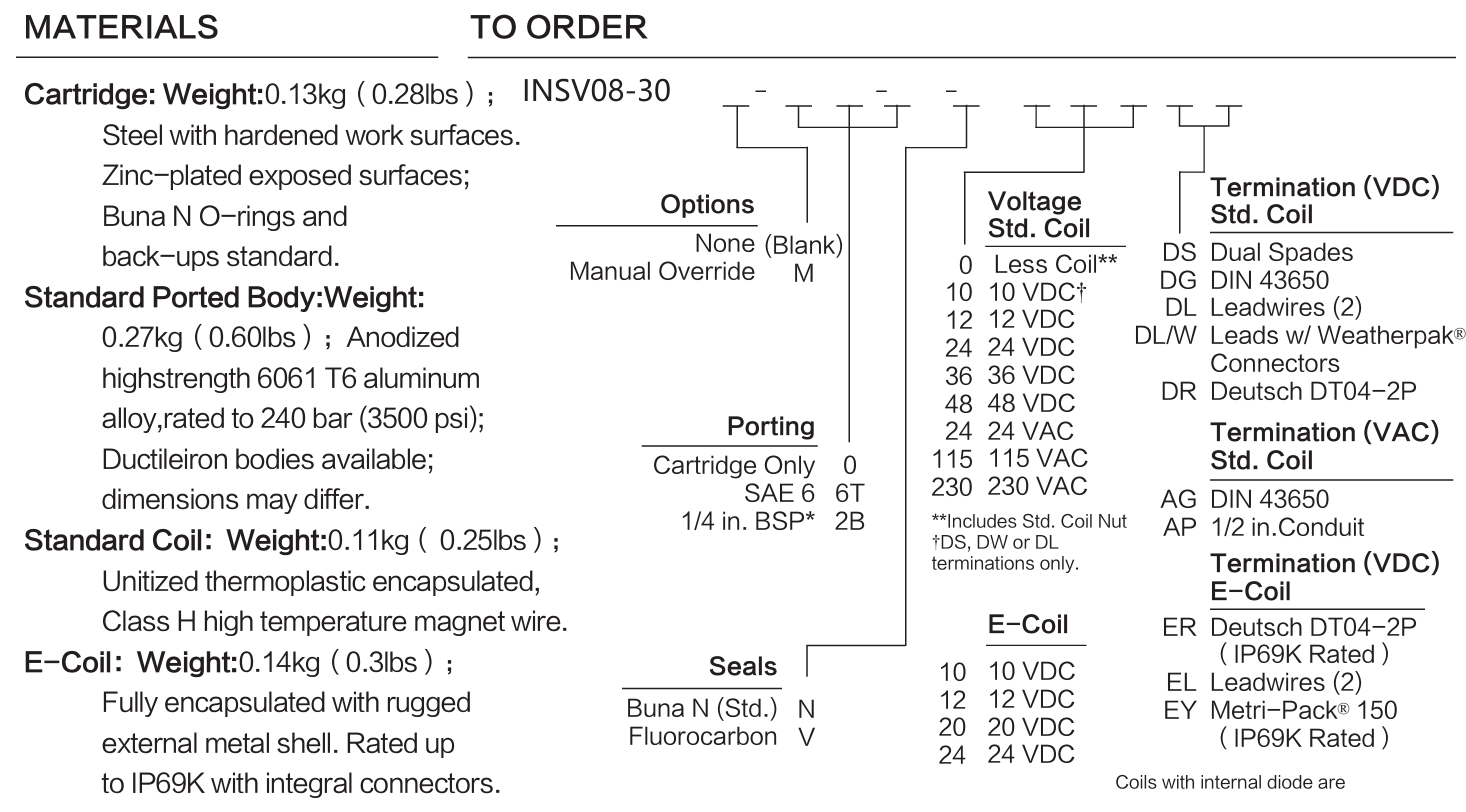

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
