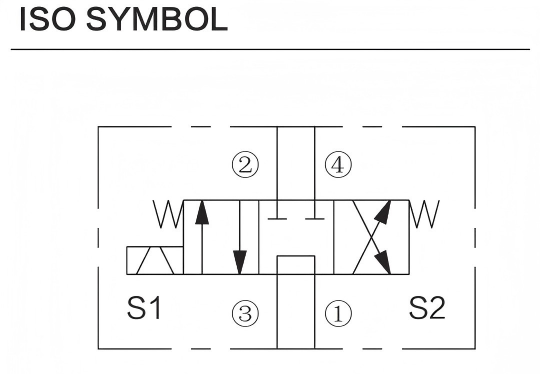

Hydraulic Symbol
Description
A solenoid-operated, four-way, three-position, direct-acting, spool-type, tandem ce nte r, screw-in hydraulic cartridge valve
Operation
Technical Data Pending
Technical Data
| Operating Pressure | 210 bar (3000 psi) |
|---|---|
| Flow | Max 11.4 lpm (3.0 gpm) |
| Cavity | T08-4A |
| Internal Leakage | 278 cc / minute (17 cu ． in. / minute) max. at 207 bar (3000 psi) |
| Temperature | -40°C to 120°C with Buna N seals |

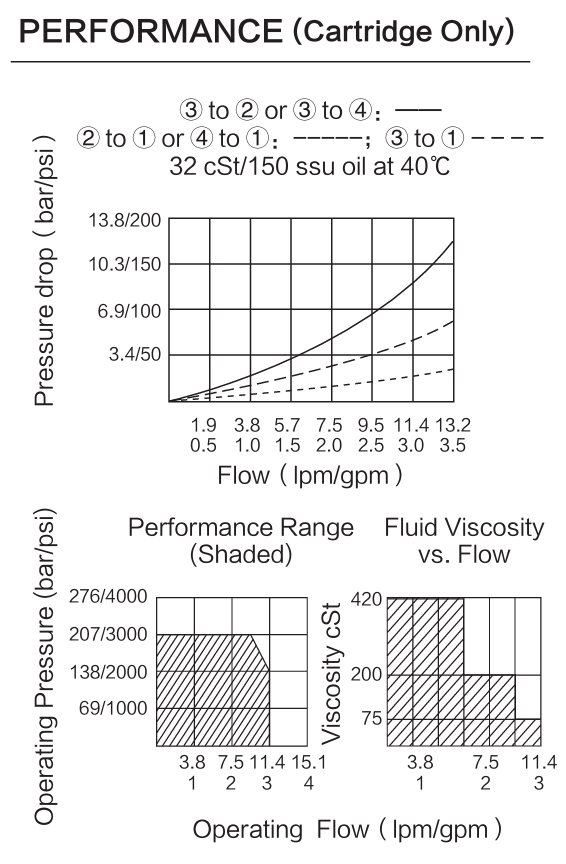

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

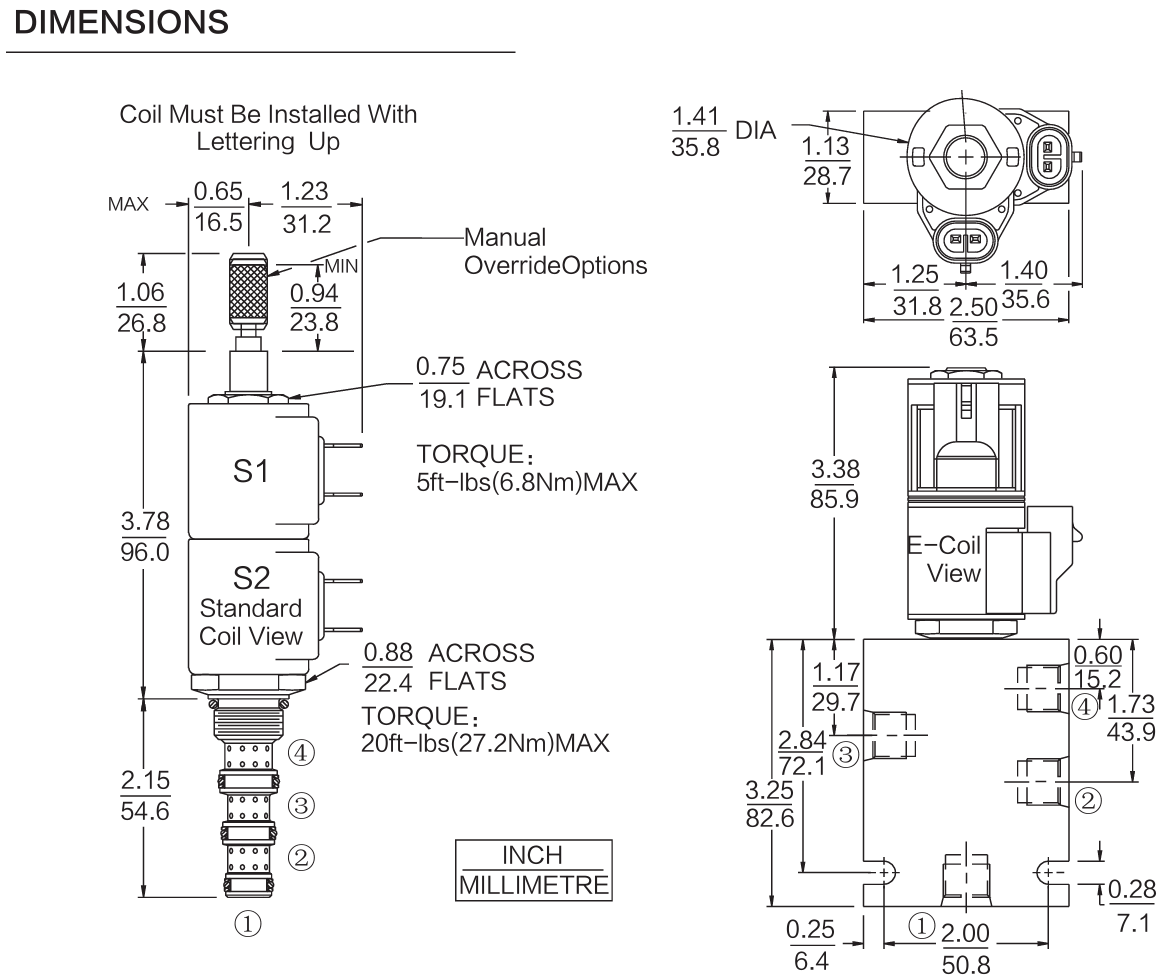

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

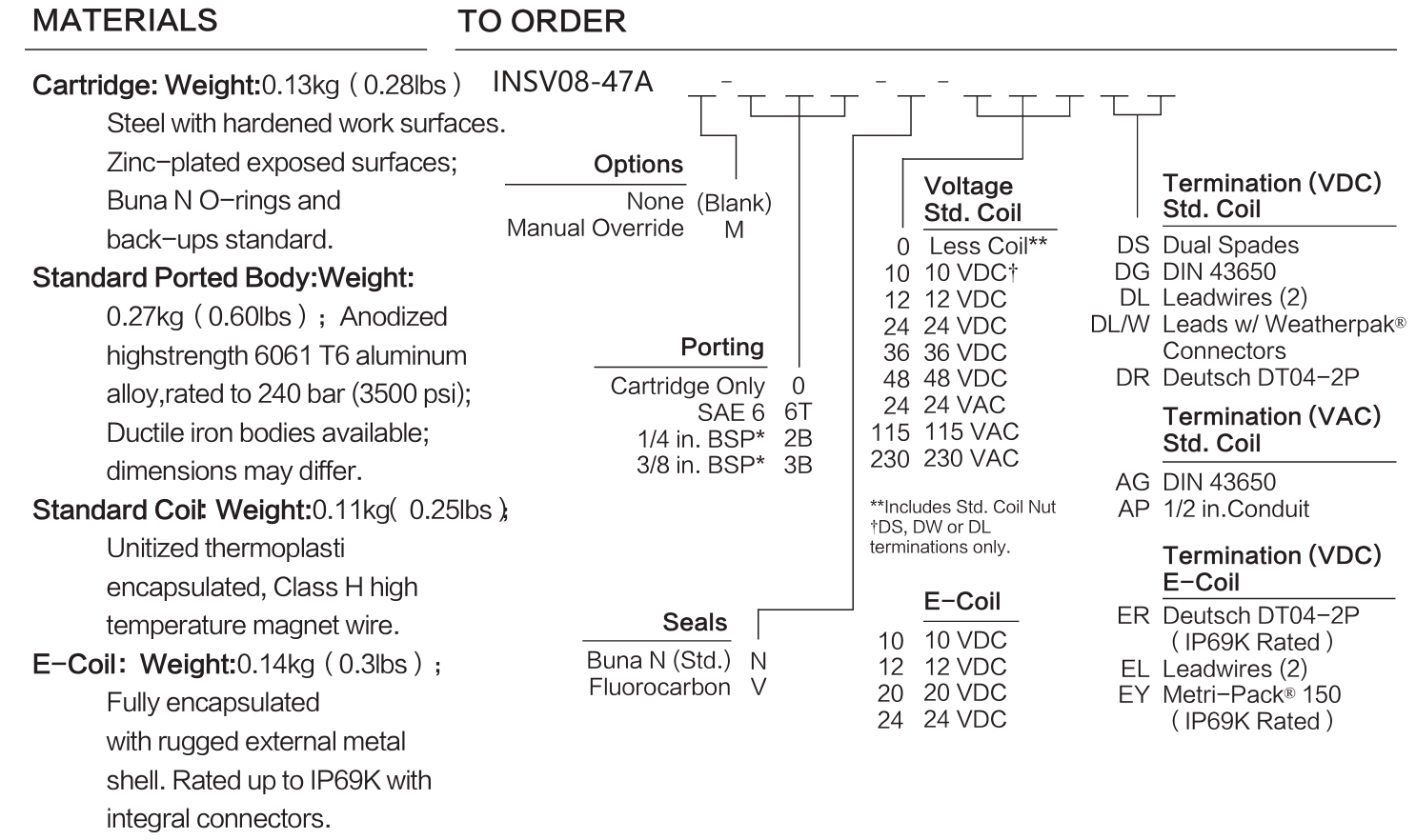

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
