Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve, designed fO r low leakage blocking and load holding applications.
Operation
Technical Data Pending
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-2B |
| Internal Leakage | 0.15 cc / m inute (3 drops / minute) max. at 207 bar (3000 psi) |
| Temperature | -40°C to 120°C with Buna N seals |

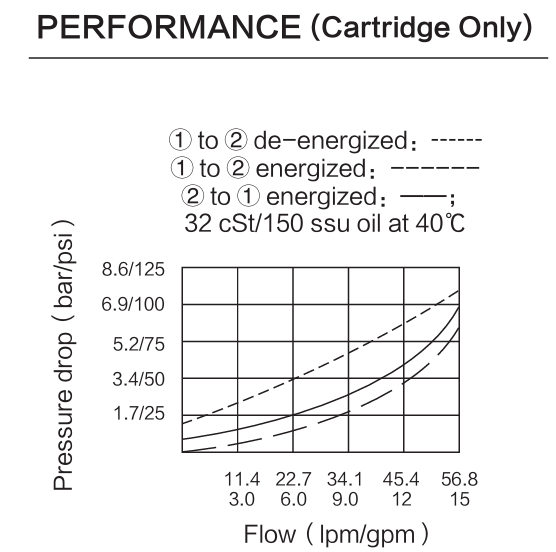

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
