Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally closed, internally piloted, poppet-type,bi-directional blocking, screw-in hydraulic cartridge valve, designed for low leakage in load-holding applications.
Operation
When de-energized, INSV10-28 blocks flow in bOth directions. When energized, the va lve, S poppet opens on its seat, allowing flow from (2 〕 to or 0 to (2 〕
Technical Data
| Operating Pressure | 240 bar (3500 psi) |
|---|---|
| Flow | 75.7 lpm (20 gpm) |
| Cavity | T10-2B |
| Internal Leakage | 0.25 cc / m i n ute (5 drops / minute) max. at 240 bar (3500 psi) |
| Temperature | -40°C to 120°C with Buna N seals |

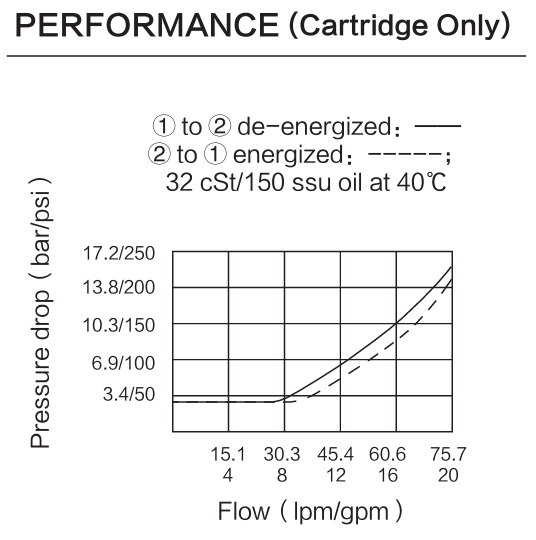

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

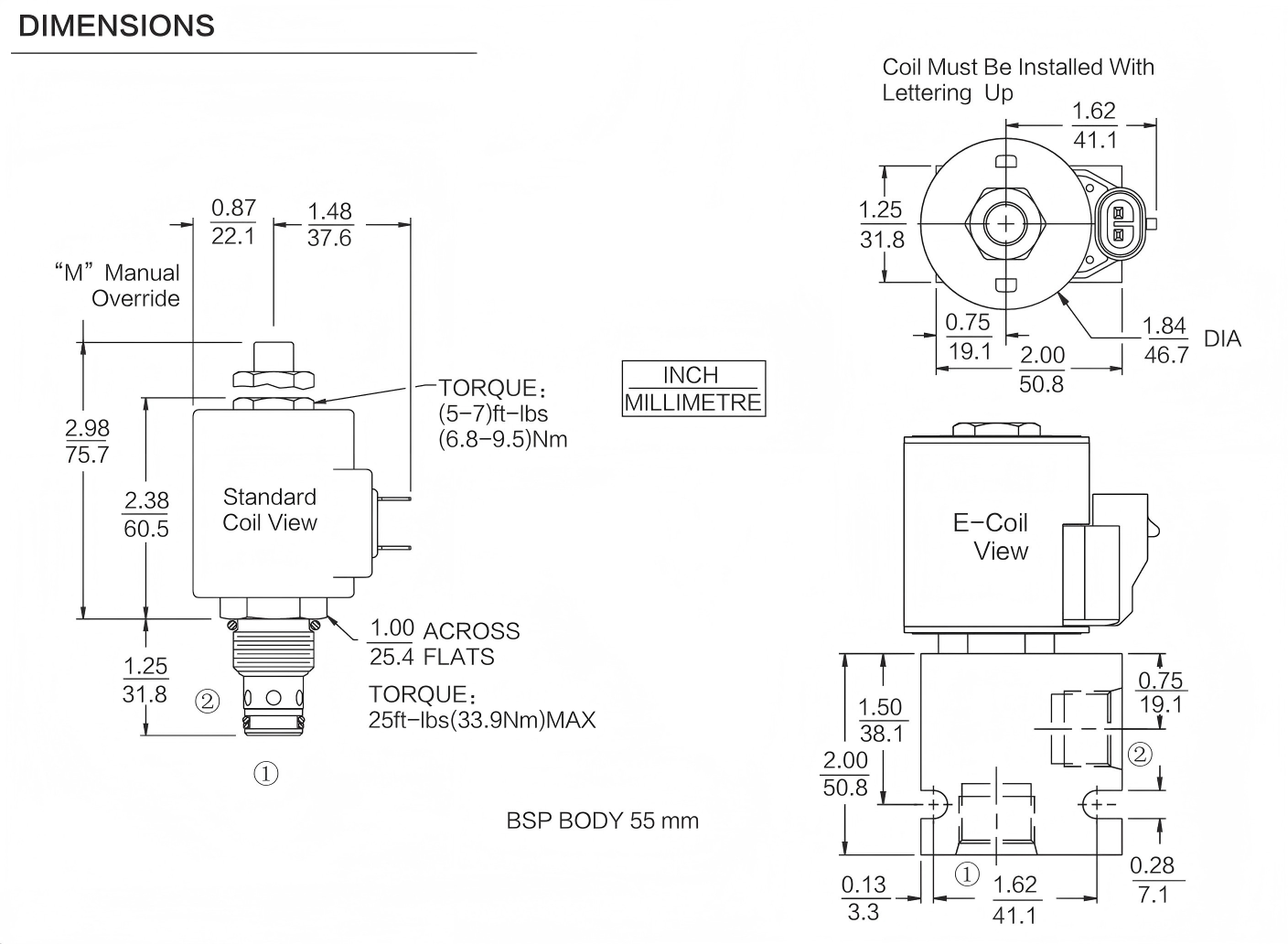

Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
