Hydraulic Symbol
Description
A solenoid-operated, 2-way, normally open, internally piloted, poppet¯type,bi-directional blocking, screw-in hydraulic cartridge valve, designed for low leakage in load-holding applications.
Operation
When de-energized, INSV10-29 allows flow in bOth directions. When energized, the valve's poppet closes on its seat, blocking flow from (2 〕 to or 0 to (2 〕
Technical Data
| Operating Pressure | 240 bar |
|---|---|
| Flow | 75.7 L/min |
| Cavity | T10-2B |
| Internal Leakage | 0.25 ml / minute (5 drops / minute) max. at 207 bar (3000 psi) |
| Temperature | -40°C to 120°C with standard Buna seals |

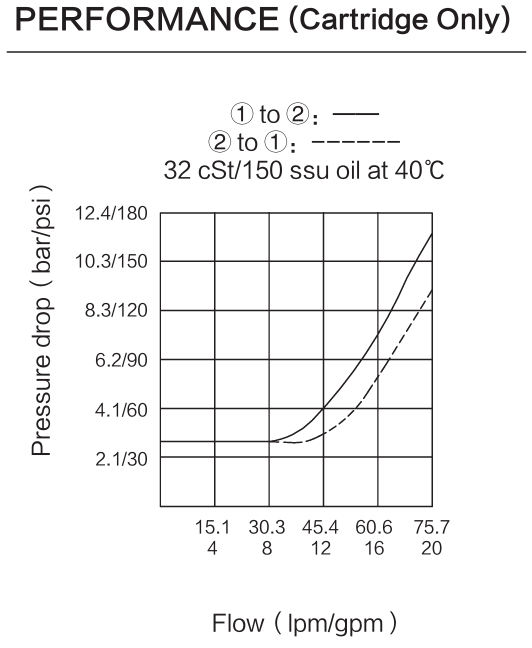

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

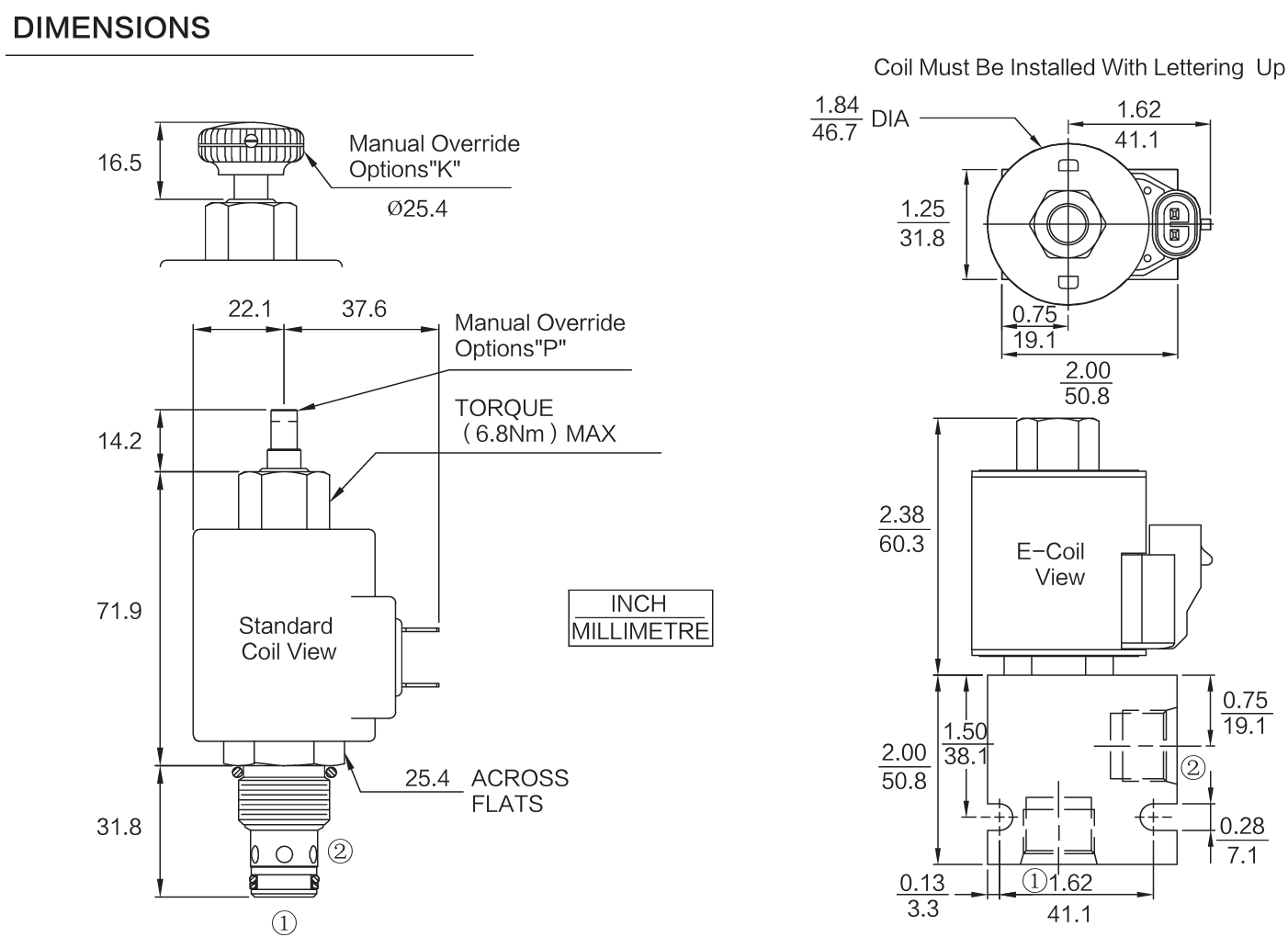

Dimensions
Dimension drawing is provided for installation and cavity review.

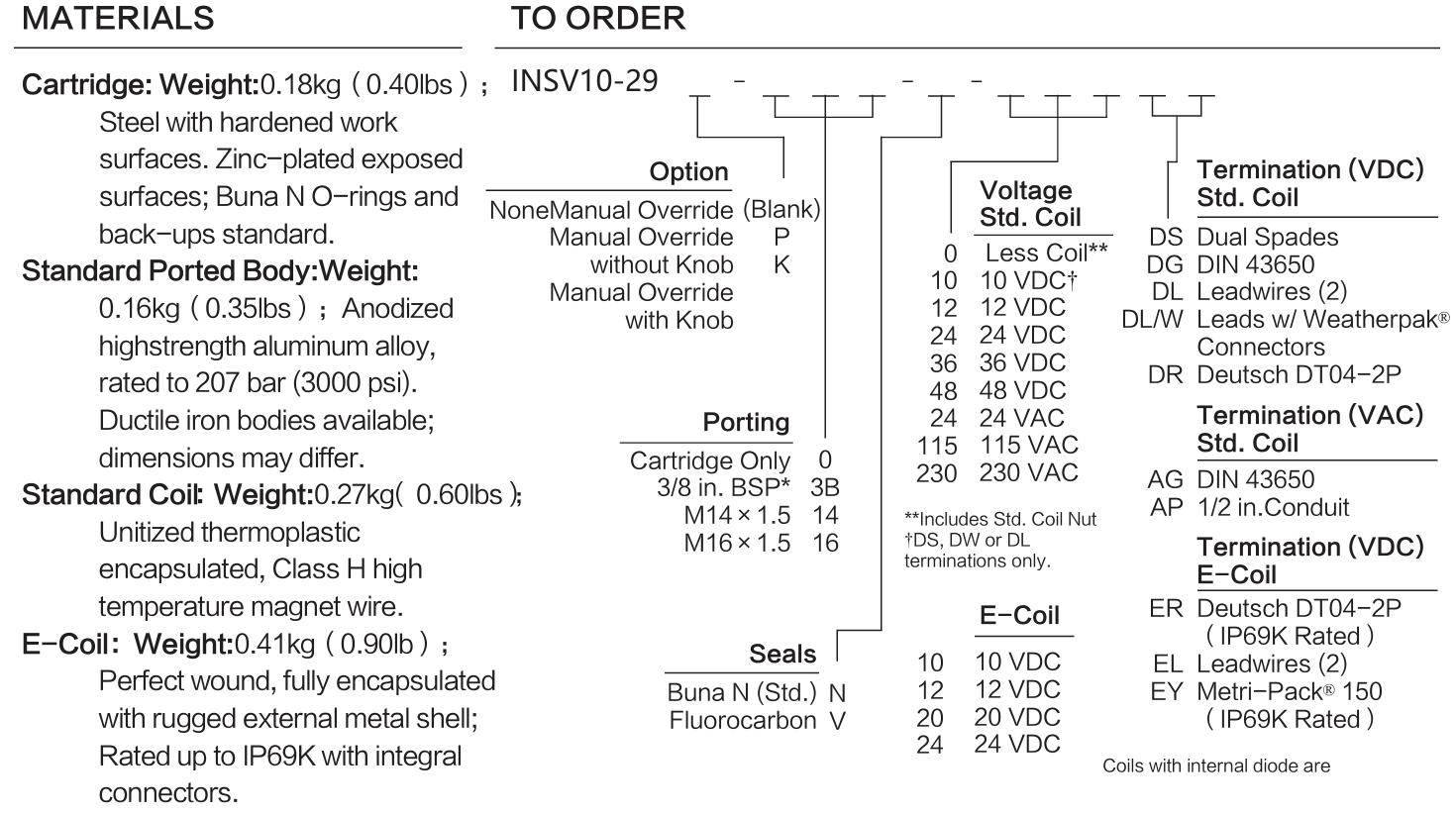

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
