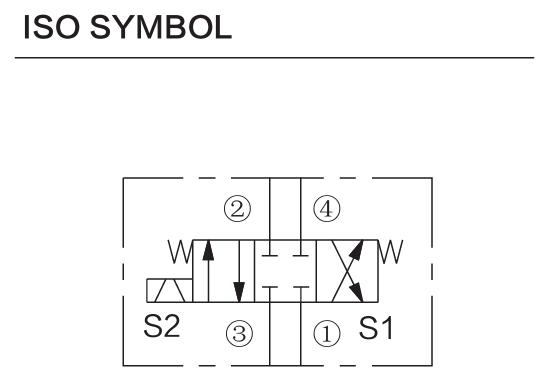

Hydraulic Symbol
Description
A solenoid-operated, 4-way, 3-position, direct-acting, spool-type, closed center, screwi n hydraulic cartridge va lve ．
Operation
Technical Data Pending
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | Max 23 lpm (6 gpm) |
| Cavity | T10-4A |
| Internal Leakage | 328 ml / minute (20 cu ． in. / minute) max. at 207 bar (3000 psi) |
| Temperature | -40°C to 120°C with Buna N seals |
Performance Curve

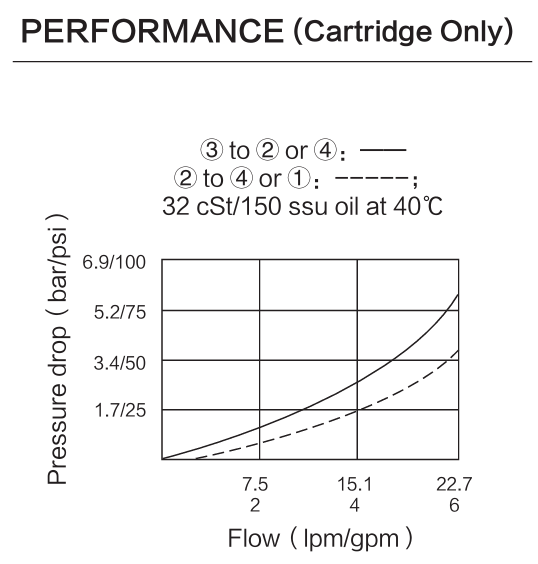

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

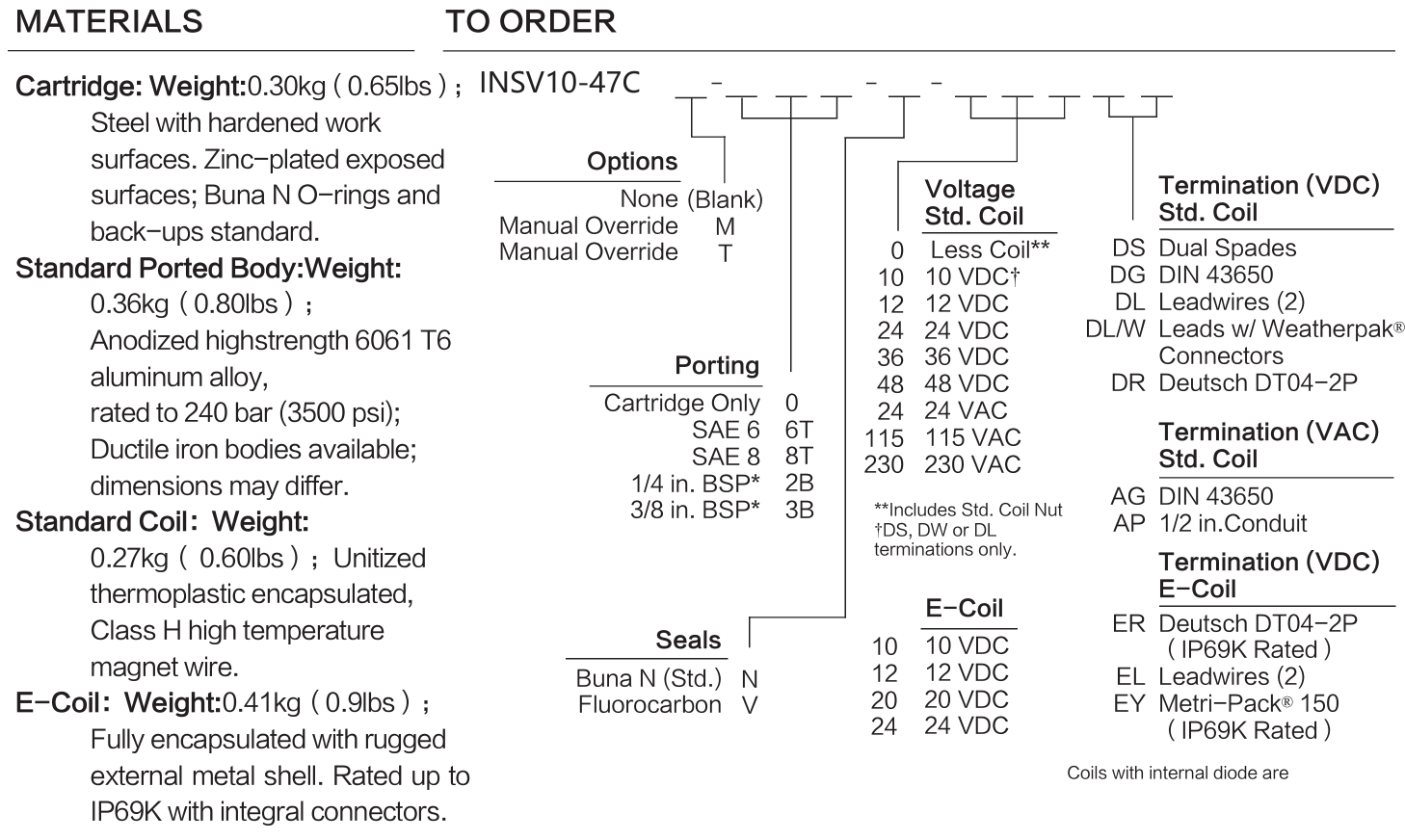

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
