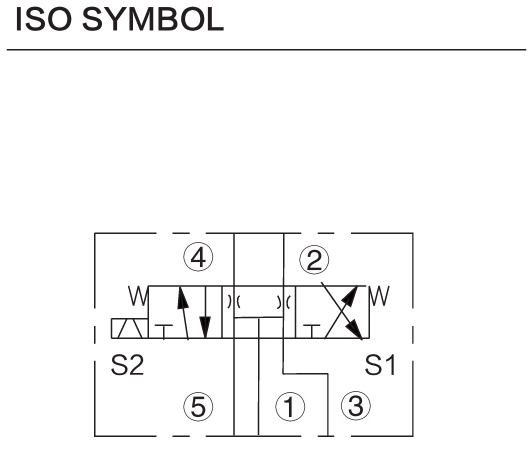

Hydraulic Symbol
Description
A solenoid-operated, five-way, three-position, hydraulic cartridge va lve with integral load-sense port
Operation
When de¯energized, the INSV10 ． 5915 allows flow to ports When coil # 1 is energized, flow is allowed from port 2 to port 3 and from port 1 to port 4 ． When coil # 2 is energized,flow is allowed from port 1 to port 2, and from port 4 to port 3 ．
Technical Data
| Operating Pressure | 247 bar (3625 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-5A |
| Internal Leakage | . 164 cc / minute (10 cu. in. / minute) max. at 207 bar (3000 psi) |
| Temperature | -40°C to 120°C with standard Buna seals |
Performance Curve

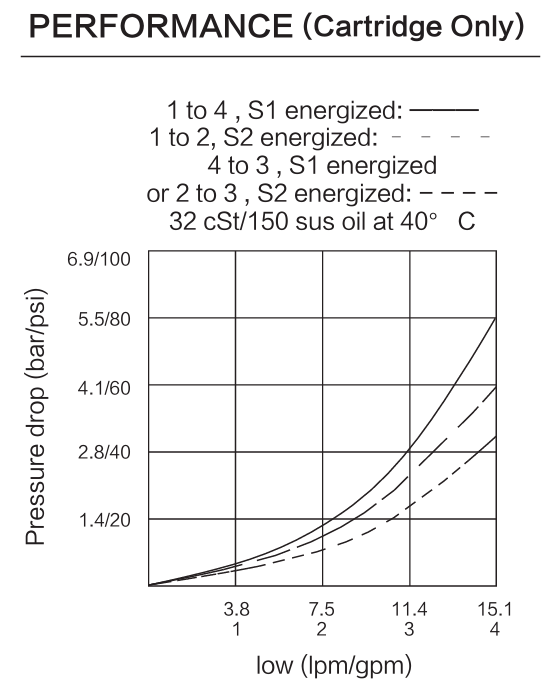

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

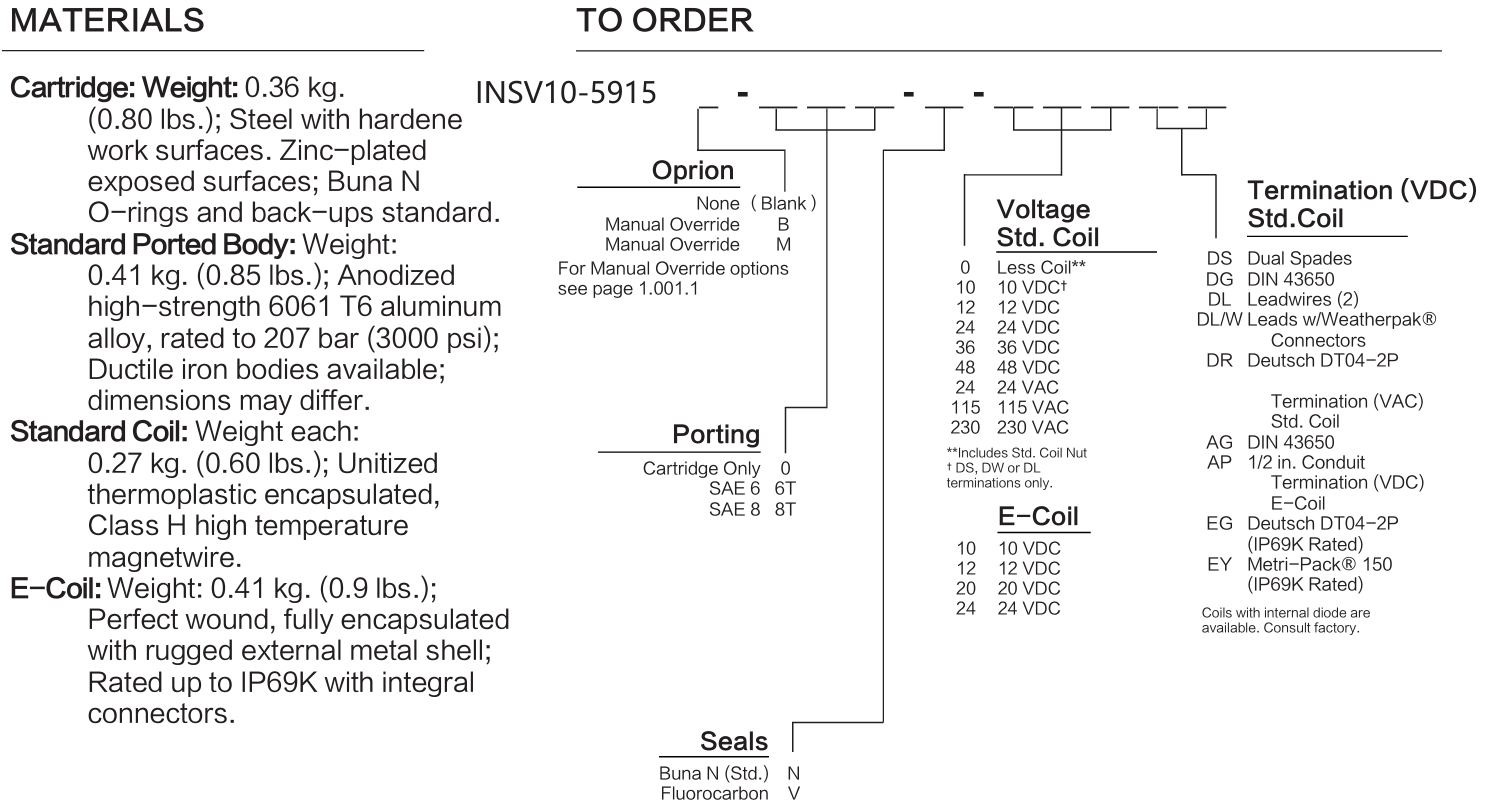

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
