Hydraulic Symbol
Description
A solenoid-operated, two-way, normally closed, internally piloted, poppet-type,bi-directional blocking, screw-in hydraulic cartridge valve, designed for low leakage in load-holding applications.
Operation
When de-energized, INSVI 2-28 blocks flow in bOth directions. When energized, the valve's poppet opens on its seat, allowing flow from (2 〕 to 0 or to ．
Technical Data
| Operating Pressure | Technical Data Pending |
|---|---|
| Flow | Technical Data Pending |
| Cavity | Technical Data Pending |
| Internal Leakage | . 7 drops per minute maximum at 240 bar (3500 psi) |
| Temperature | -40°C to 120°C with Buna N seals |
Performance Curve

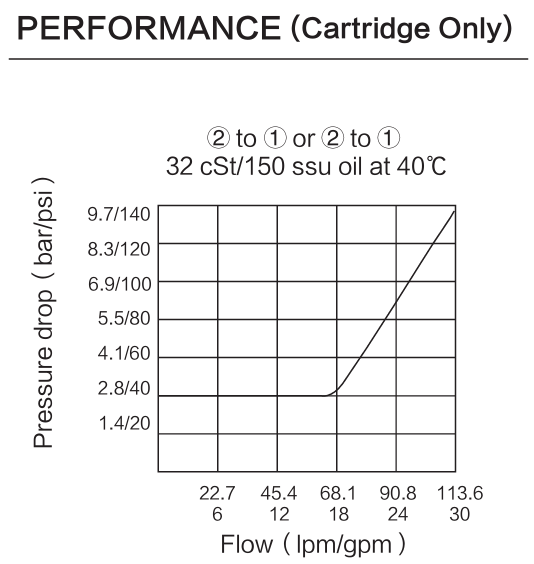

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

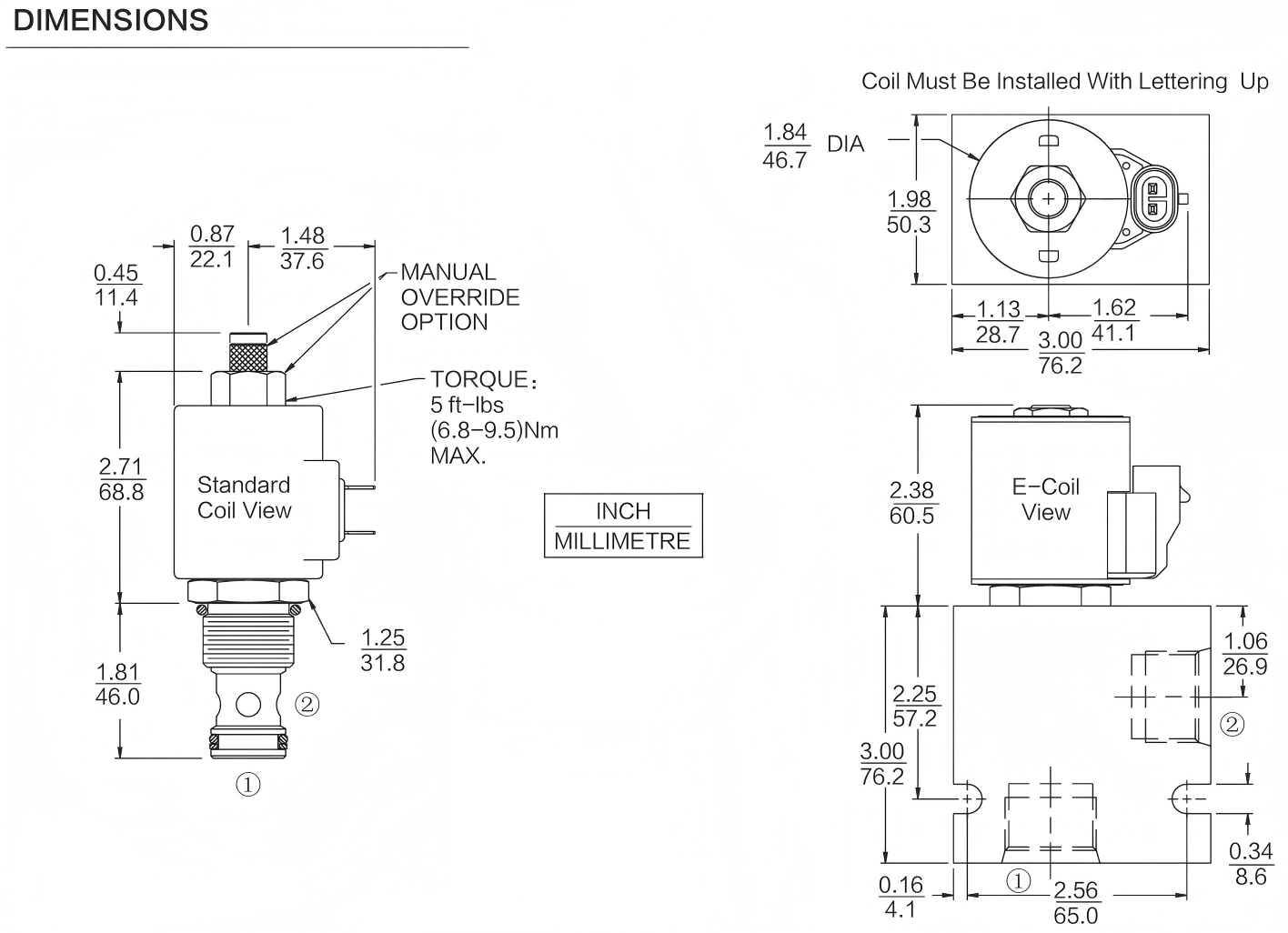

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
