Solenoid Cartridge Valves

4-Way 3-Position Solenoid Valves

Selected 4-way 3-position solenoid valve models are shown below. Datasheets are available for model-specific review.

Function group
Solenoid control
Data status
Datasheet available for review
Review
Cavity, pressure, flow and application

Model Framework

Available Model List

Technical specifications are shown from each model's own datasheet when available. Pending fields can be reviewed during quotation.

Request a Quote
Need a different voltage, connector or replacement reference? Send your part number, working conditions and quantity for technical confirmation.

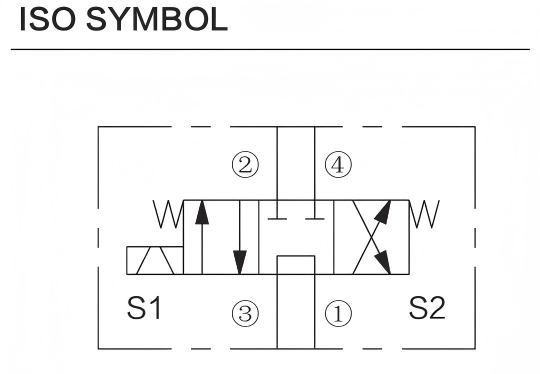

INSV08-47A hydraulic symbol

INSV08-47A

INSV08-47A Spool, 4-Way, 3-Position, Tandem Center

Cavity
T08-4A
Pressure
210 bar (3000 psi)
Flow
Max 11.4 lpm (3.0 gpm)
See Details Datasheet

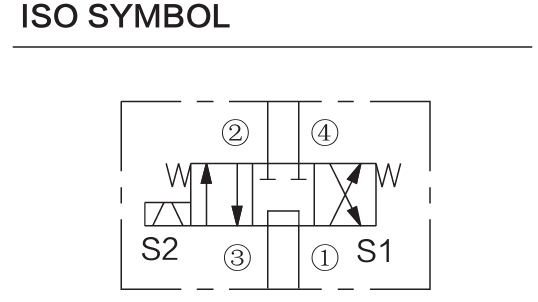

INSV10-47A hydraulic symbol

INSV10-47A

INSV10-47A Spool, 4-Way, 3-Position, Tandem Center

Cavity
T10-4A
Pressure
240 bar (3500 psi)
Flow
Max 19 lpm (5 gpm)
See Details Datasheet

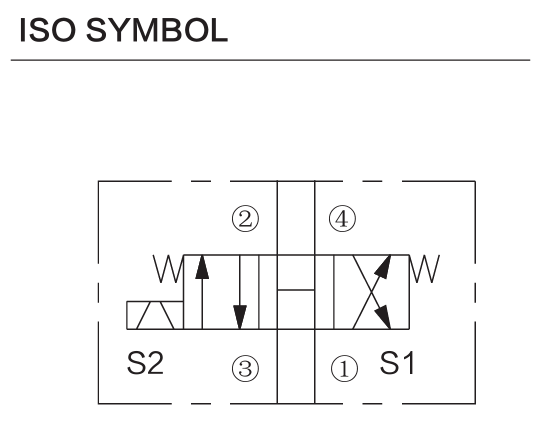

INSV08-47B hydraulic symbol

INSV08-47B

INSV08-47B Spool, 4-Way, 3-Position, Open Center

Cavity
T08-4A
Pressure
207 bar (3000 psi)
Flow
Max 11.4 lpm (3 gpm)
See Details Datasheet

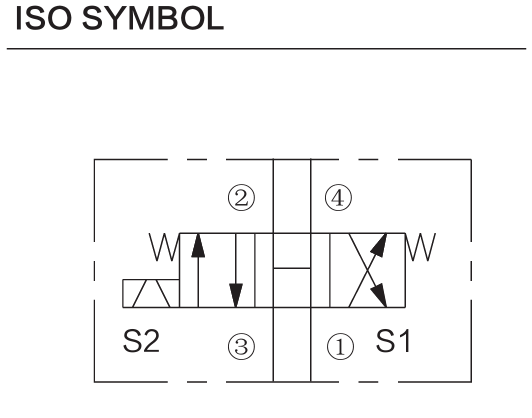

INSV10-47B hydraulic symbol

INSV10-47B

INSV10-47B Spool, 4-Way, 3-Position, Open Center

Cavity
T10-4A
Pressure
240 bar (3500 psi)
Flow
Max 22.7 lpm (6 gpm)
See Details Datasheet

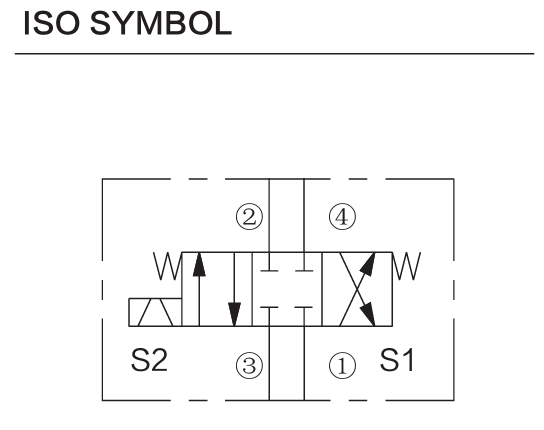

INSV08-47C hydraulic symbol

INSV08-47C

INSV08-47C Spool, 4-Way, 3-Position, Closed Center

Cavity
T08-4A
Pressure
207 bar (3000 psi)
Flow
Max 11.4 lpm (3 gpm)
See Details Datasheet

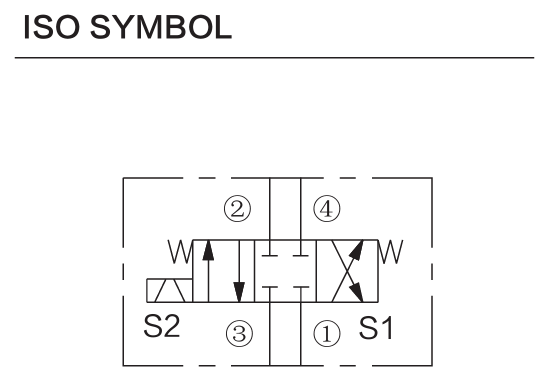

INSV10-47C hydraulic symbol

INSV10-47C

INSV10-47C Spool, 4-Way, 3-Position, Closed Center

Cavity
T10-4A
Pressure
207 bar (3000 psi)
Flow
Max 23 lpm (6 gpm)
See Details Datasheet

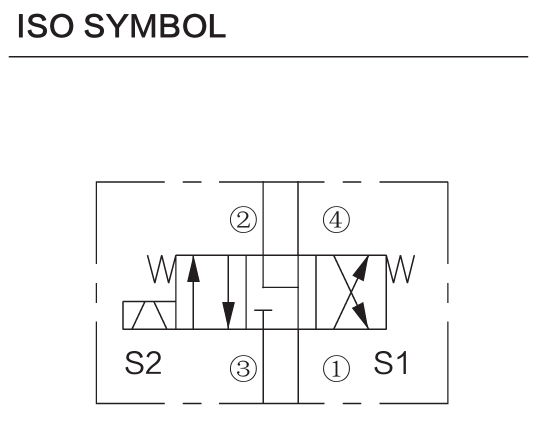

INSV08-47D hydraulic symbol

INSV08-47D

INSV08-47D Spool, 4-Way, 3-Position, Motor Spool

Cavity
T08-4A
Pressure
207 bar (3000 psi)
Flow
Max 11.4 lpm (3 gpm)
See Details Datasheet

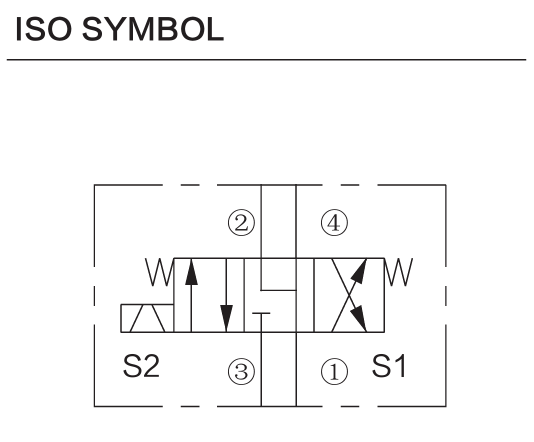

INSV10-47D hydraulic symbol

INSV10-47D

INSV10-47D Spool, 4-Way, 3-Position, Motor Spool

Cavity
T10-4A
Pressure
207 bar (3000 psi)
Flow
Max 23 lpm (6 gpm)
See Details Datasheet
