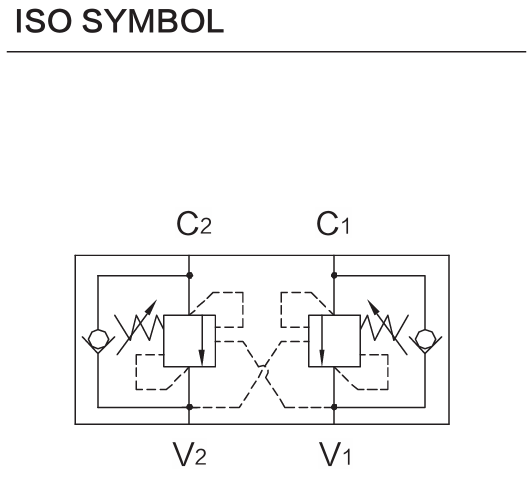

Hydraulic Symbol
Description
Valve block structure, plate installation. This valve module includes 2 sections, each one composed by a check and a relief valve with balanced piston.
Operation
It provides static and dynamic control of load by regulating the flow IN and OUT of the actuator, through ports C1 and C2. This valve module includes 2 sections, each one composed by a check and a relief valve with balanced piston, pilot assisted by pressure in the opposite line: the check section allows free flow into the actuator, then holds the load against reverse movement; with pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse flow. Relief operates at the valve setting independent of back-pressure, but the piloted opening remains subject to additive pressure at V1 or V2.
Technical Data
| Operating Pressure | Max. Operating Pressure: 350 bar; maximum setting = 350 bar; maximum recommended load pressure at maximum setting = 270 bar |
|---|---|
| Flow | See Performance Chart |
| Internal Leakage | 15 drops/min max. to 80% of nominal setting |
| Temperature | -40°C to 120°C with standard Buna seals |

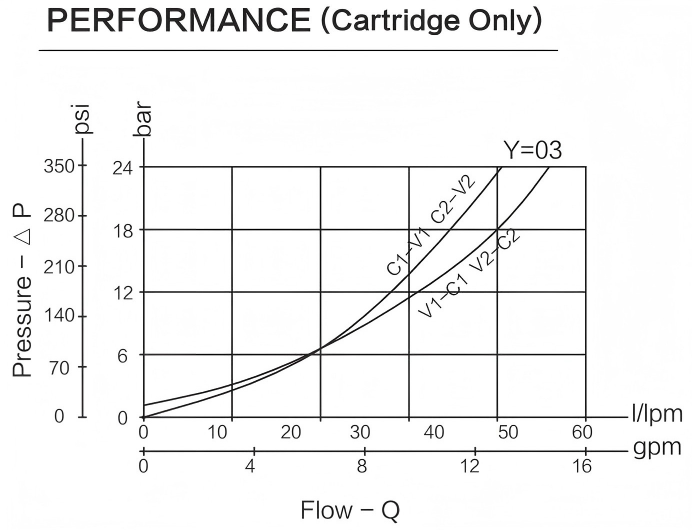

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

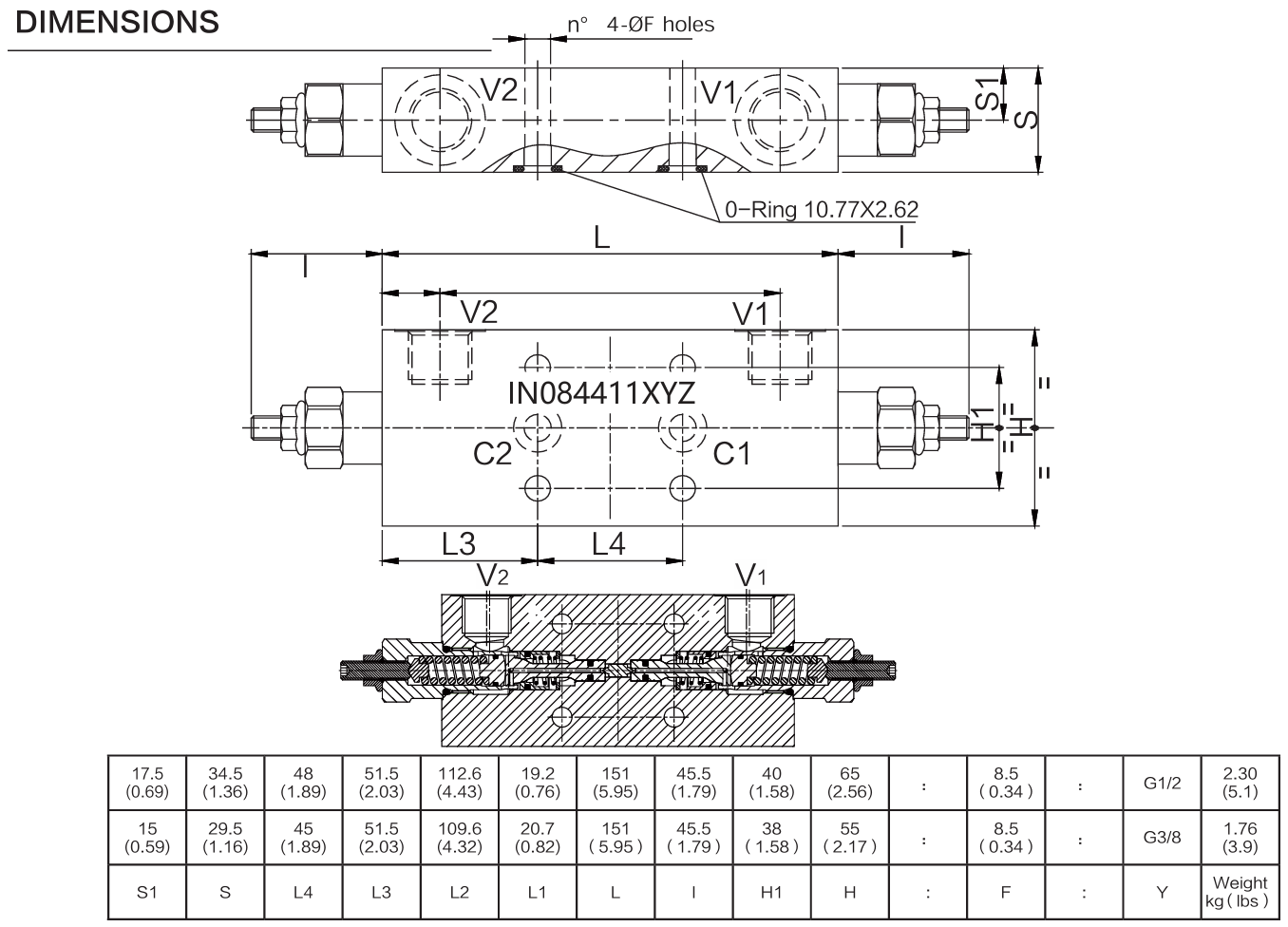

Dimensions
Dimension drawing is provided for installation and cavity review.

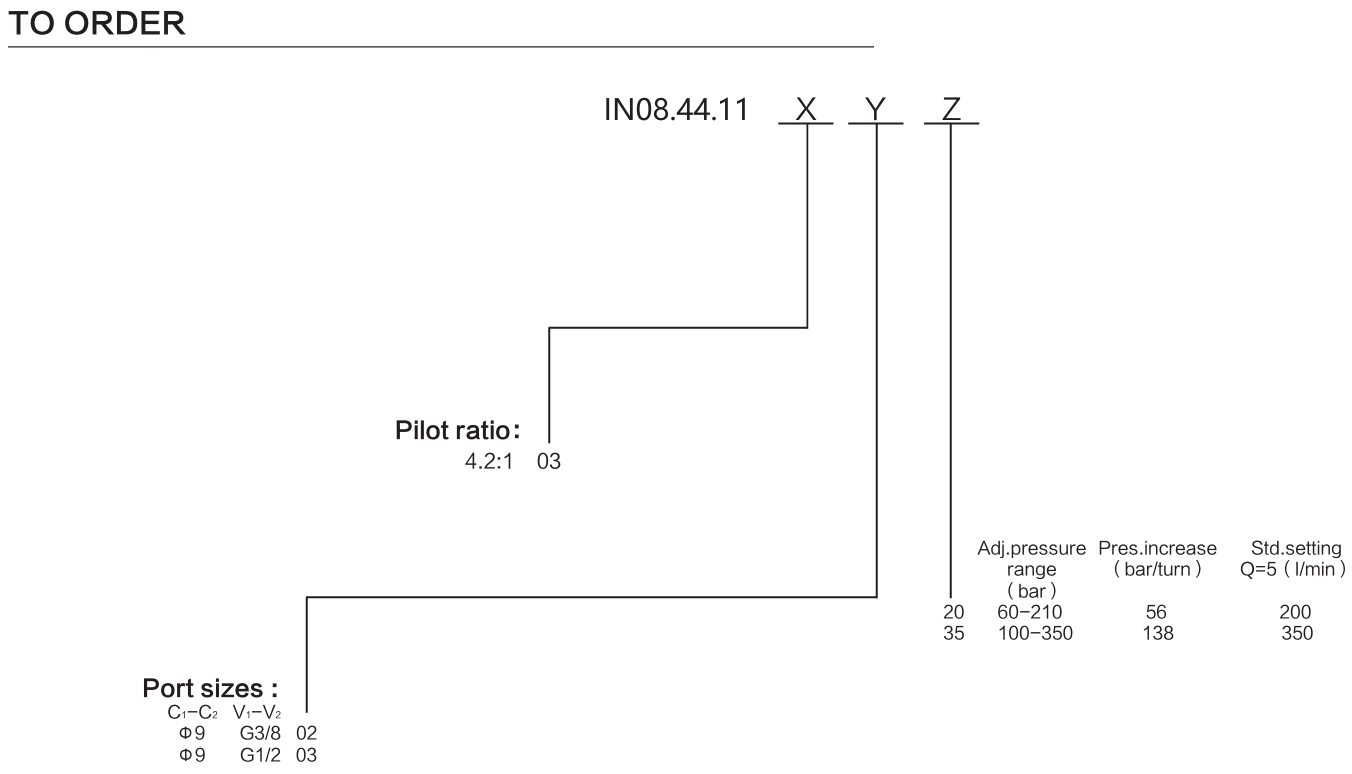

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
