Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated, hydraulic check valve for use in blocking or load-holding circuits.
Operation
The INCKCB-XCN allows flow passage from port 2 to port 1, while normally blocking flow from port 1 to port 2. Flow will be allowed from port 1 to port 2 when sufficient pressure is applied at port 1. The cartridge has a 3:1 pilot ratio, meaning that at least one-third of the load pressure held at port 1 is required at port 3 to open the valve. The check is spring-biased to assure holding in static or no-load conditions. A sealed pilot piston option is available.
Technical Data
| Operating Pressure | 350 bar / 5100 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-3B |
| Internal Leakage | Technical Data Pending |
| Temperature | -40°C to 120°C |

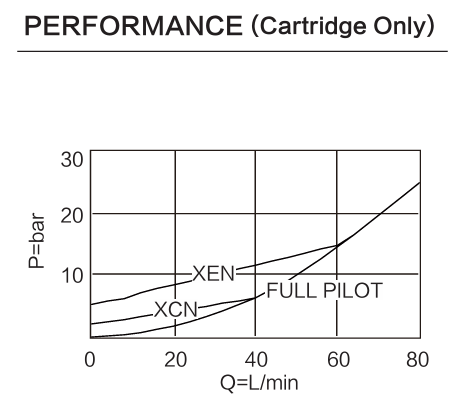

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

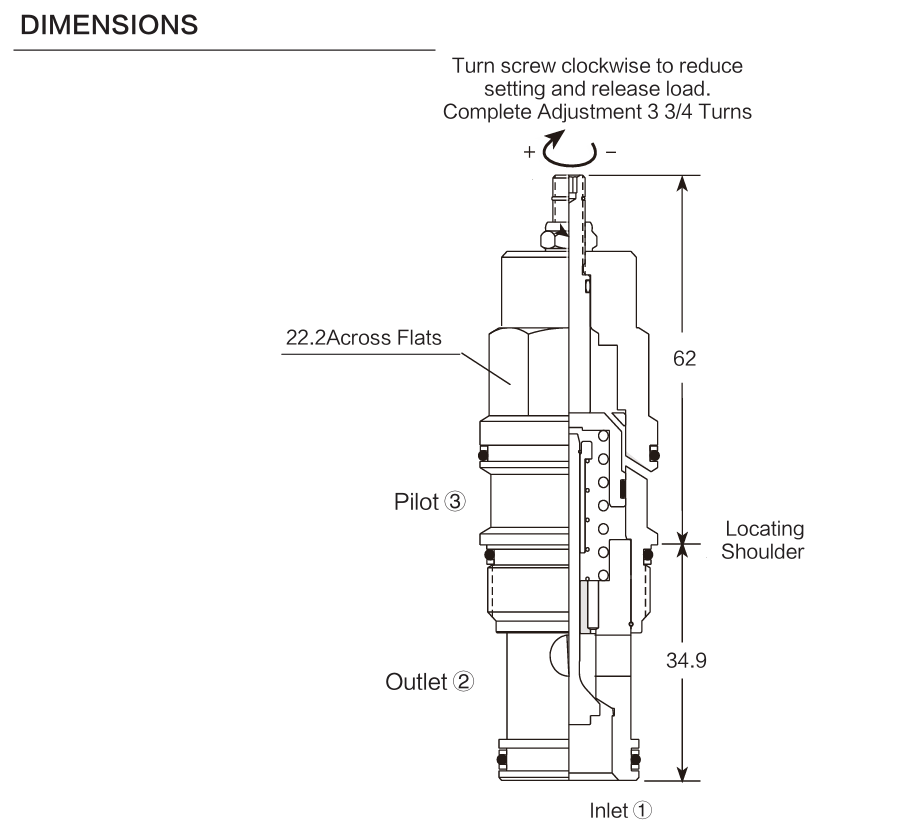

Dimensions
Dimension drawing is provided for installation and cavity review.

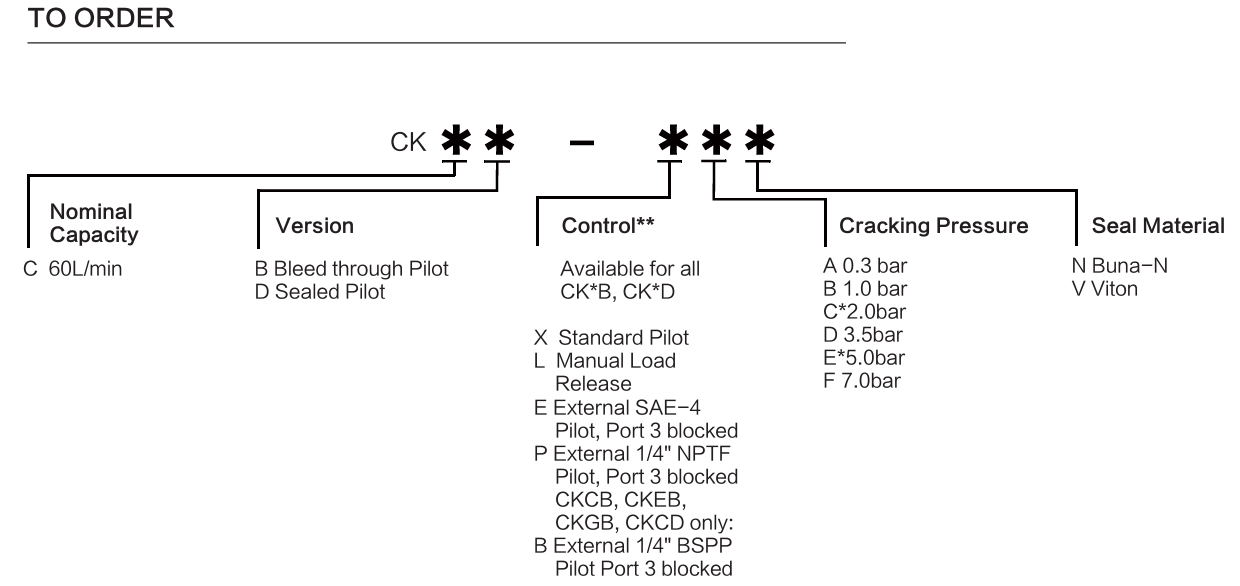

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
