Hydraulic Symbol
Description
A screw-in, direct acting, ball type in-line check valve. Main use as a blocking or load-holding device.
Operation
INCVR2000-G14 allows flow passage from port 2 to port 1, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at port 2 to open to port 1.
Technical Data
| Operating Pressure | 350 bar / 5000 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | Technical Data Pending |
| Internal Leakage | 0.15 ml/minute (3 drops/minute) max. at 350 bar / 5000 psi |
| Temperature | -40°C to 120°C with Buna N seals |
Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

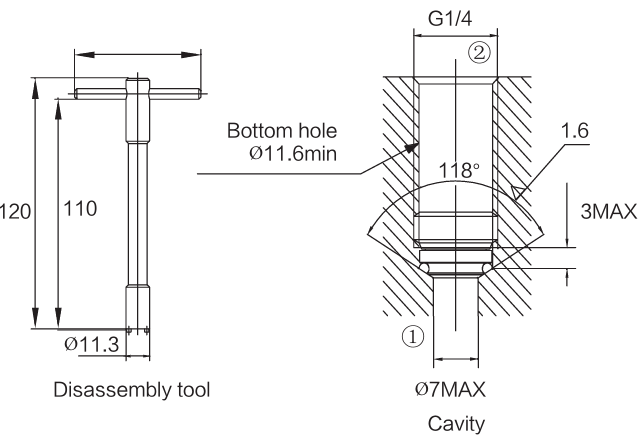

Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
File Download
