Hydraulic Symbol
Description
A dual pilot-operated check valve for use in blocking or load-holding circuits.
Operation
INDC08-40 will block flow from port 1 to port 2 and from port 4 to port 3. Flow is allowed in the opposite direction when pressure is applied to port 2 and/or port 3. The valve has a 3:1 pilot ratio, so at least 1/3 of the load pressure at port 1 or port 4 is required at the pilot lines (ports 2 or 3) to open the flow passage to allow flow from ports 1 or 4. The check is spring-biased to assure holding in a static or no load condition. Note: Orifice disc cannot be used with this product.
Technical Data
| Operating Pressure | Inlet: 240 bar / 3500 psi |
|---|---|
| Flow | Rated inlet flow: 19 lpm / 5 gpm; see Performance Chart |
| Cavity | T08-4A |
| Internal Leakage | 5 drops per minute (0.25 ml per minute) at 210 bar / 3000 psi |
| Temperature | -40°C to 120°C with Buna N seals |

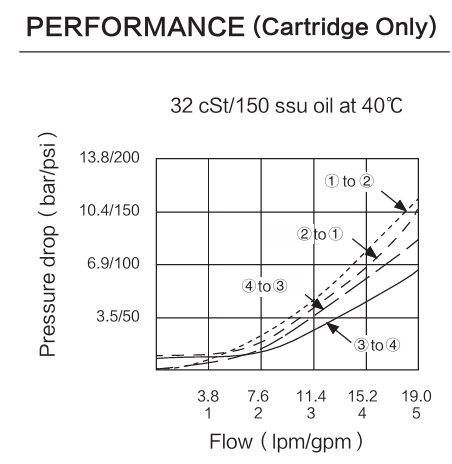

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

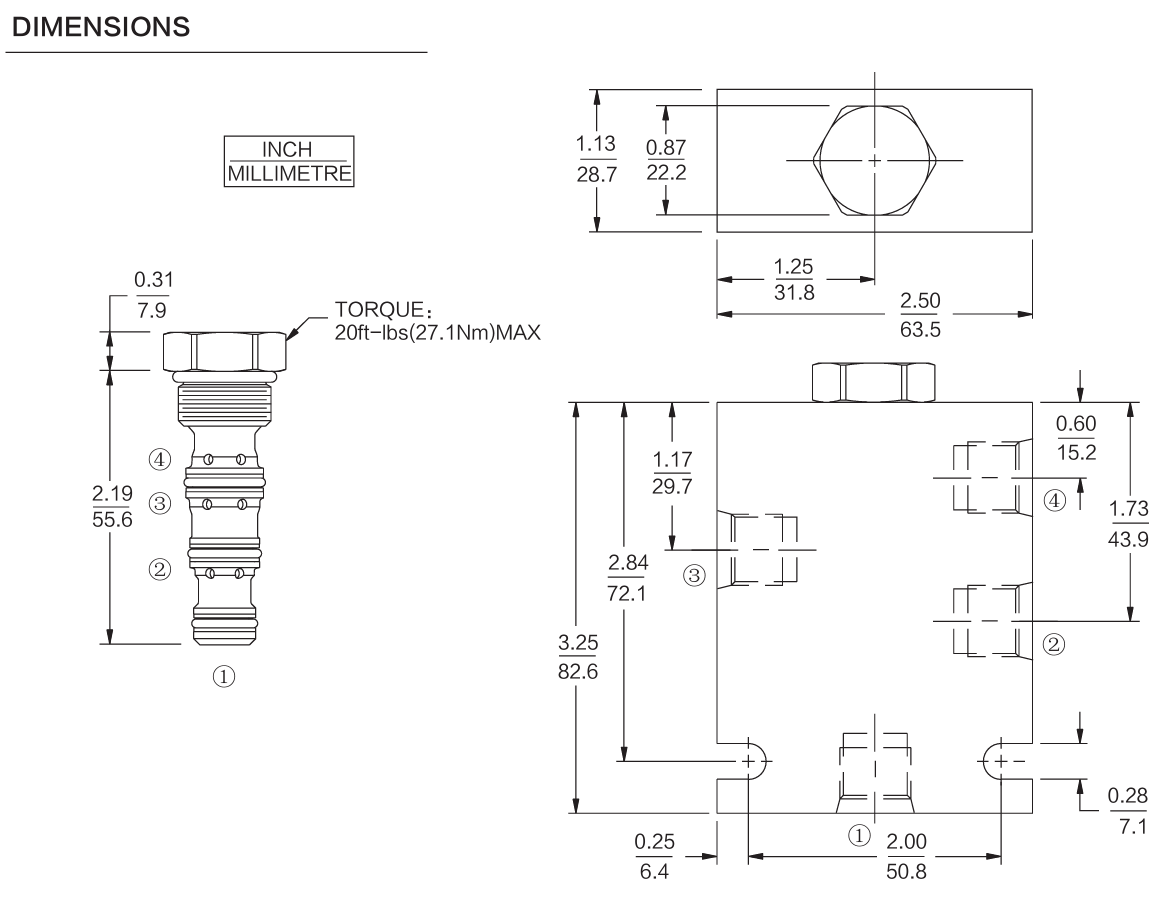

Dimensions
Dimension drawing is provided for installation and cavity review.

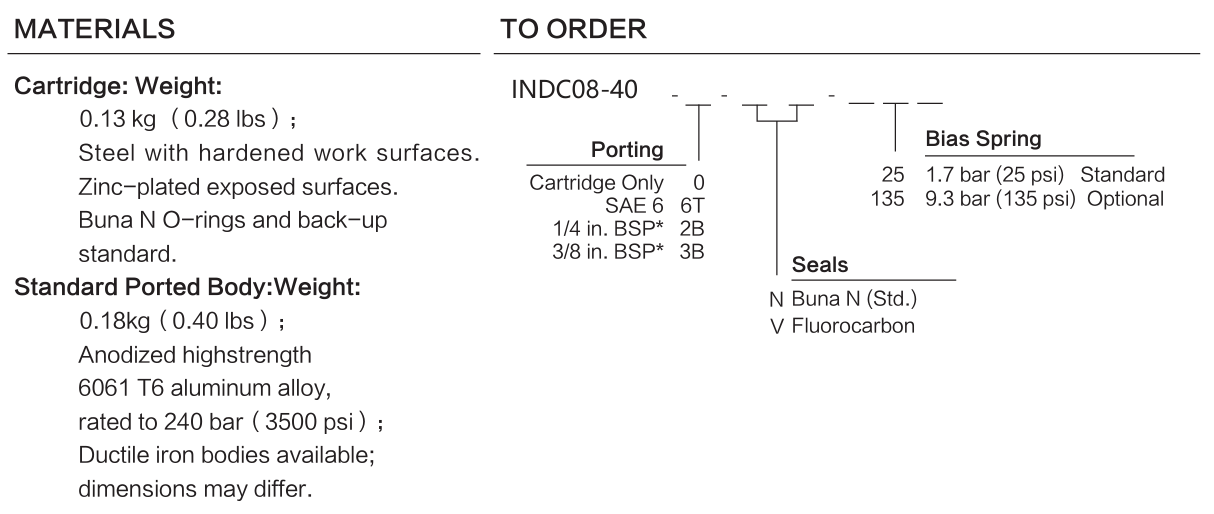

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
