Hydraulic Symbol
Description
A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.
Operation
The valve blocks flow from port 1 to port 2 until sufficient pressure is present at port 1 to force the poppet from its seat.
Technical Data
| Operating Pressure | 250 bar |
|---|---|
| Flow | See Flow Characteristic |
| Cavity | T08-2E |
| Internal Leakage | 5 drops/min max. to 80% of nominal setting |
| Temperature | -30°C to +120°C |
Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

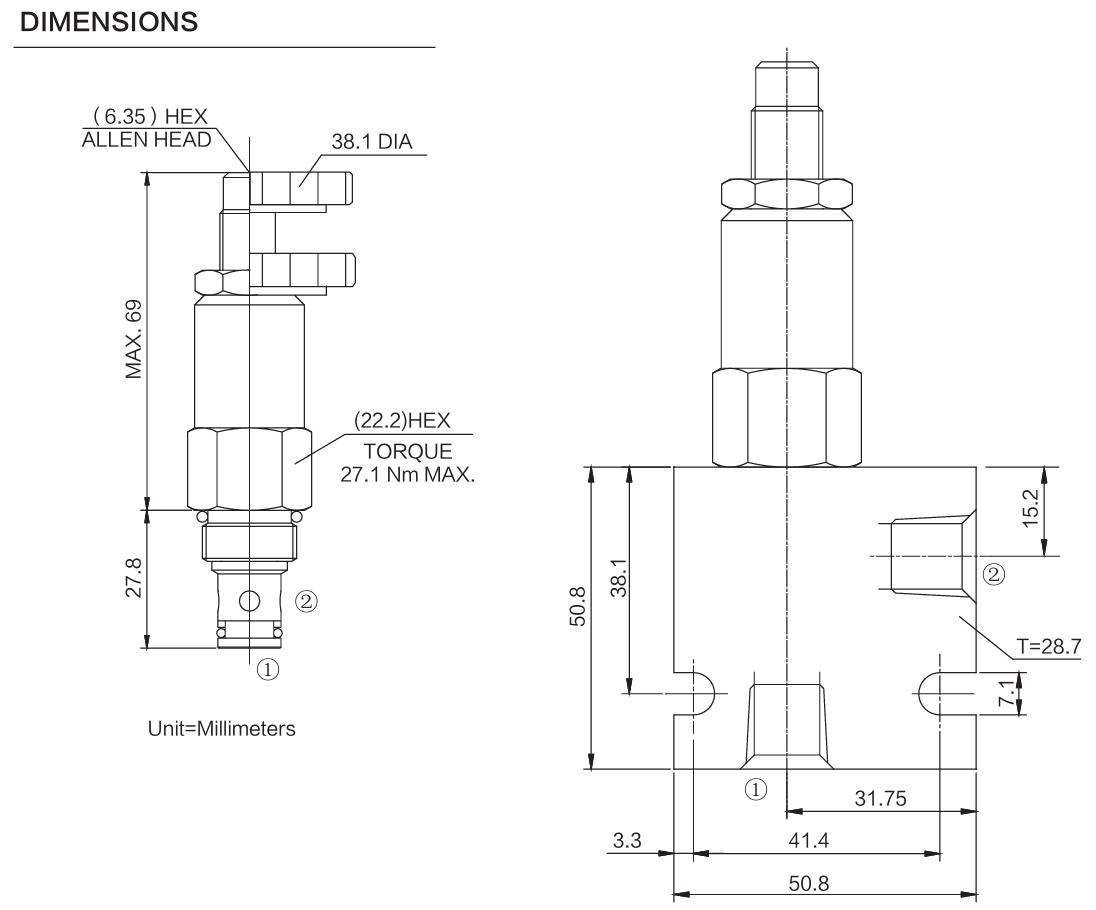

Dimensions
Dimension drawing is provided for installation and cavity review.

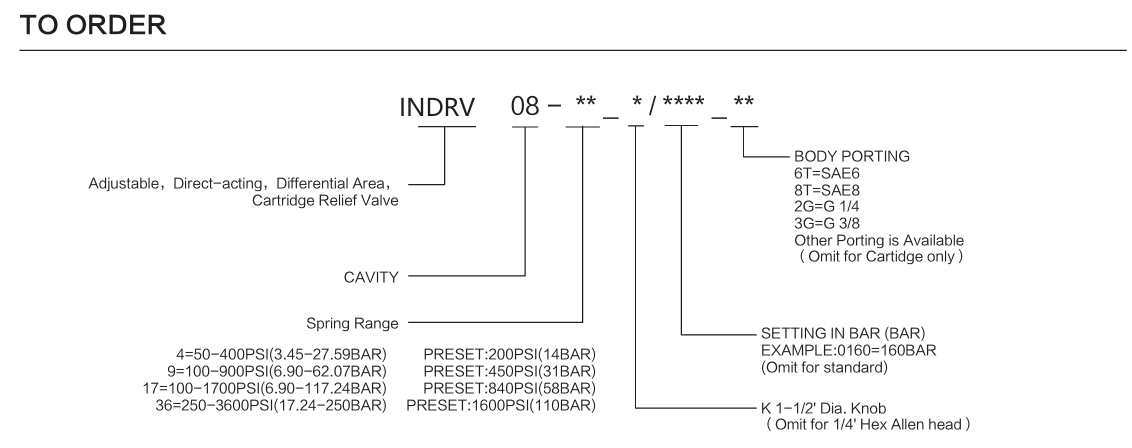

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
