Hydraulic Symbol
Description
A spool-type, screw-in, cartridge-style, hydraulic directional element, with multifunction potential when used with other directional, pressure, or flow control devices.
Operation
The INEP08-35 is a spring-biased blocking valve which will shift to allow full flow from port 1 to port 2 only when pressure at port 1 exceeds the cumulative pressure of port 3, plus the bias spring pressure value. INEP08-35 is a pilot-to-close directional valve. With no pressure at port 3, flow will be allowed from port 1 to port 2 once the bias spring force is overcome with pressure at port 1.
Technical Data
| Operating Pressure | 345 bar / 5000 psi with steel or ductile housing; 207 bar / 3000 psi with aluminum housing |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-3A |
| Internal Leakage | Technical Data Pending |
| Temperature | -40°C to 120°C with Buna N seals |
Performance Curve

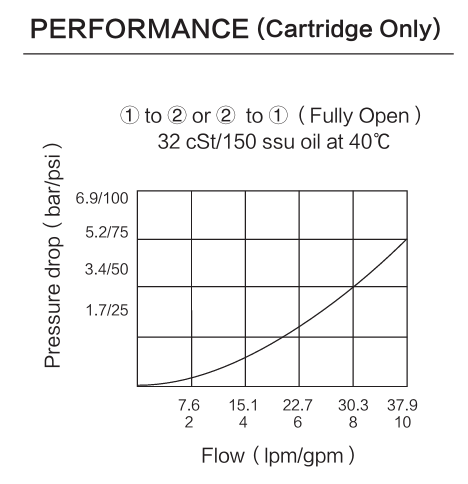

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

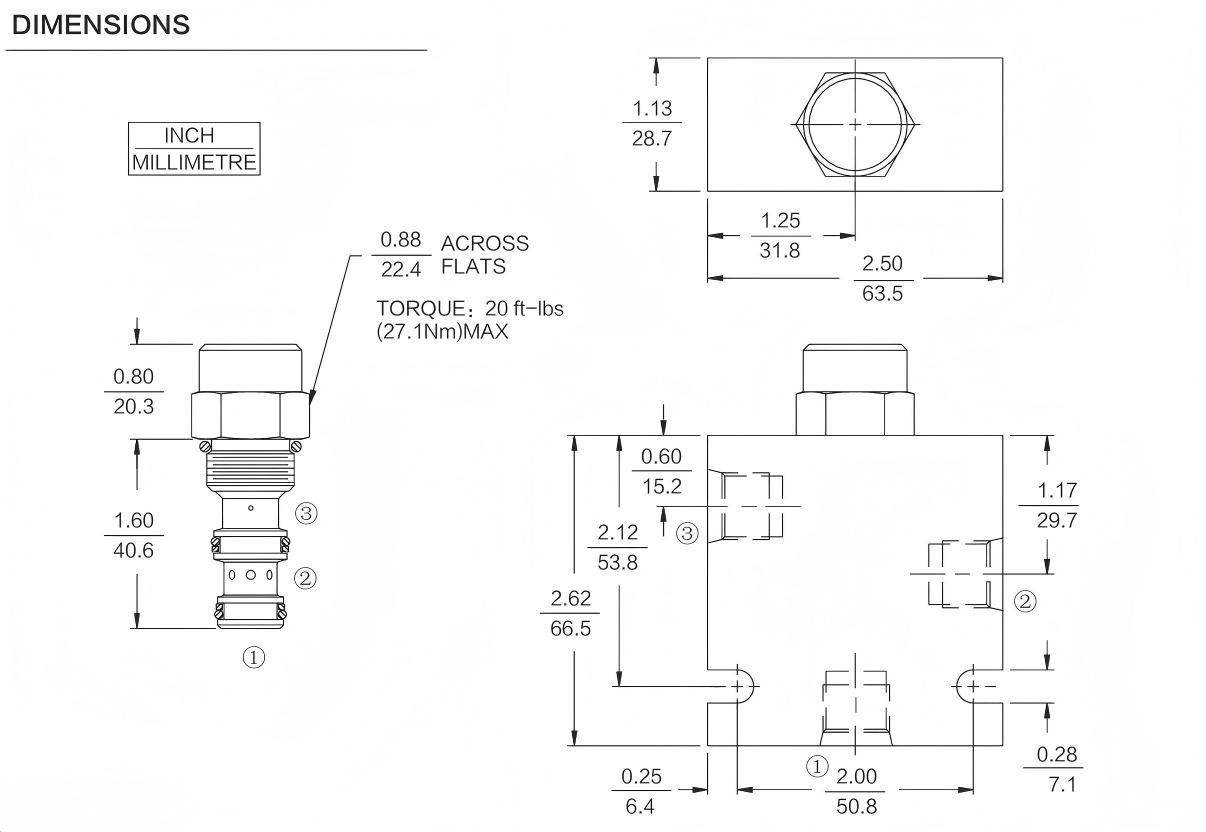

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

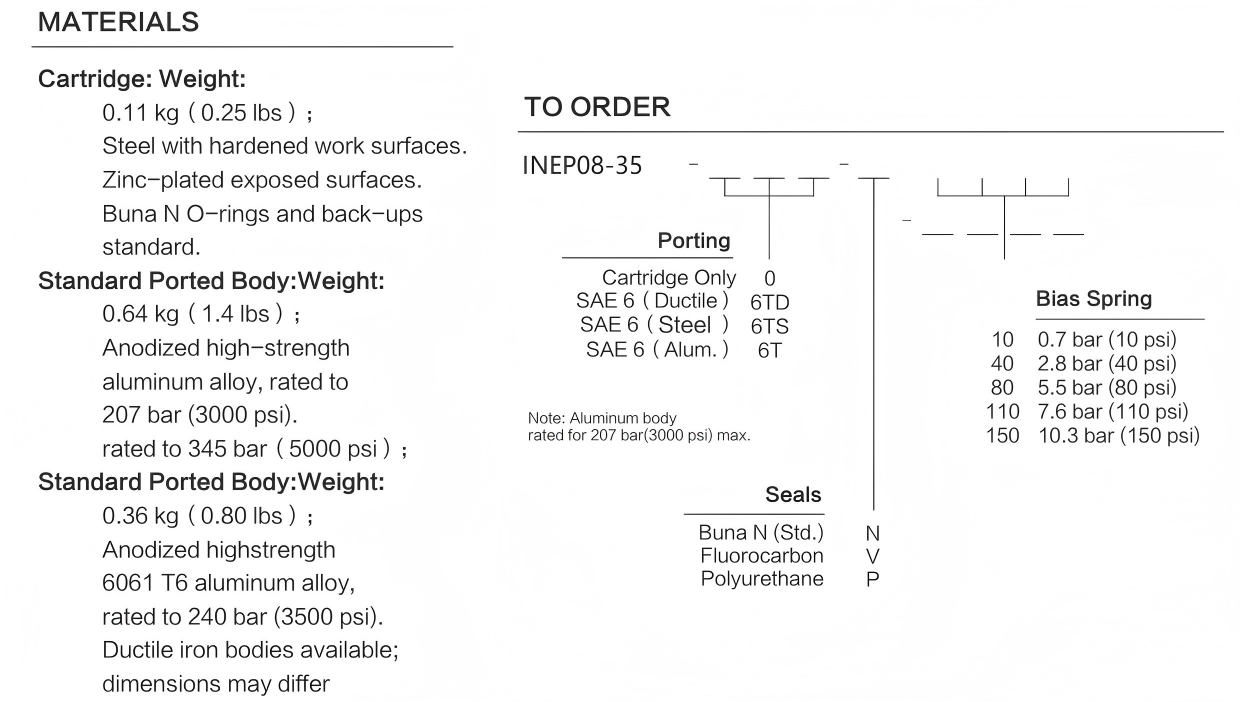

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
