Hydraulic Symbol
Description
A spool-type, screw-in, cartridge-style, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
Operation
INEP10-S35 is a spring-biased blocking valve which will shift to allow full flow from port 1 to port 2 only when pressure at port 1 exceeds the cumulative pressure of port 3, plus the bias spring pressure value. INEP10-S35 is a pilot-to-close directional valve. With no pressure at port 3, flow will be allowed from port 1 to port 2 once the bias spring force is overcome with pressure at port 1.
Technical Data
| Operating Pressure | 350 bar / 5000 psi cartridge; 240 bar / 3500 psi standard aluminum housing; 350 bar / 5000 psi ductile iron housing |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-3AS |
| Internal Leakage | Technical Data Pending |
| Temperature | -40°C to 120°C with Buna N seals |

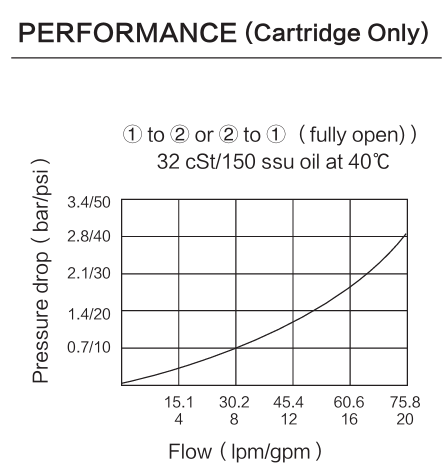

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

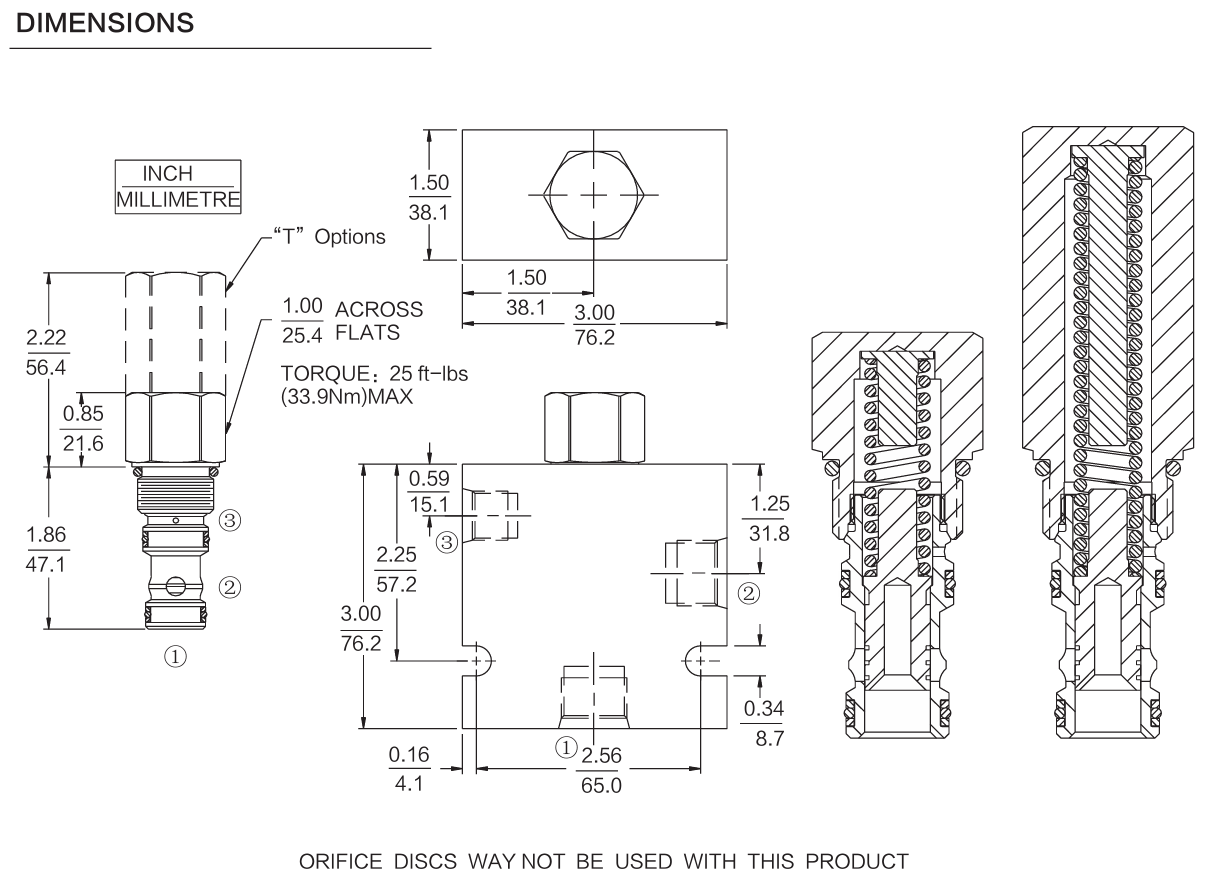

Dimensions
Dimension drawing is provided for installation and cavity review.

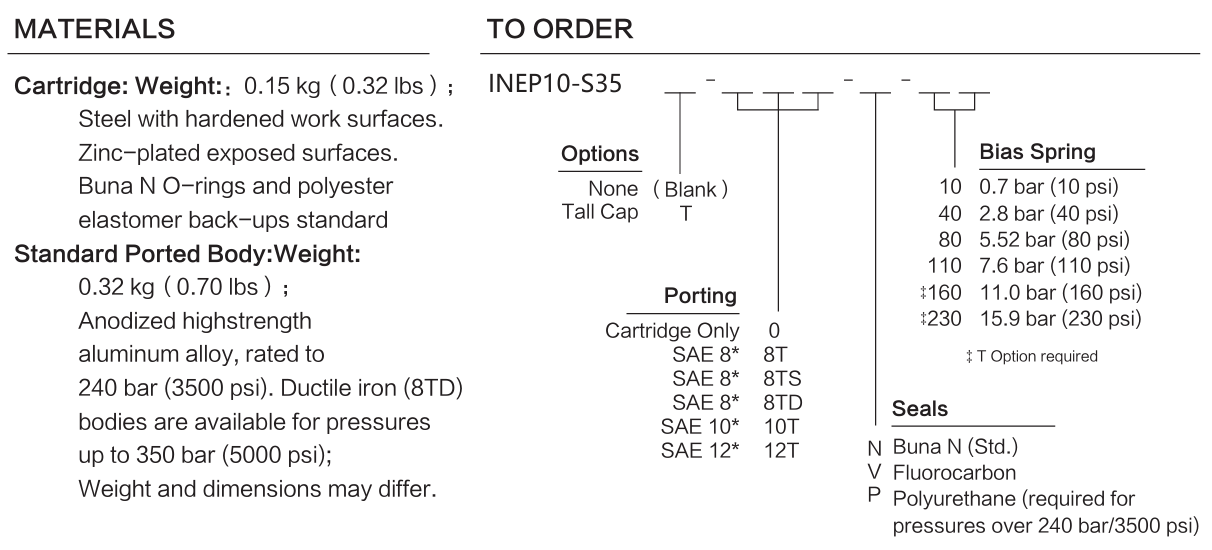

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
