Hydraulic Symbol
Description
A screw-in, cartridge-style, variable orifice, hydraulic flow control valve with reverse flow check.
Operation
The INFC10-20 increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation.
Technical Data
| Operating Pressure | 240 bar (3500 psi) |
|---|---|
| Flow | 45 lpm (12 gpm) nominal at 7 bar (100 psi) at full open 3.0 turns |
| Cavity | T10-2B; See bottom of this catalog. |
| Internal Leakage | 0.50 cc/minute (10 drops/minute) max. at shut-off |
| Temperature | -40°C to 120°C |
Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

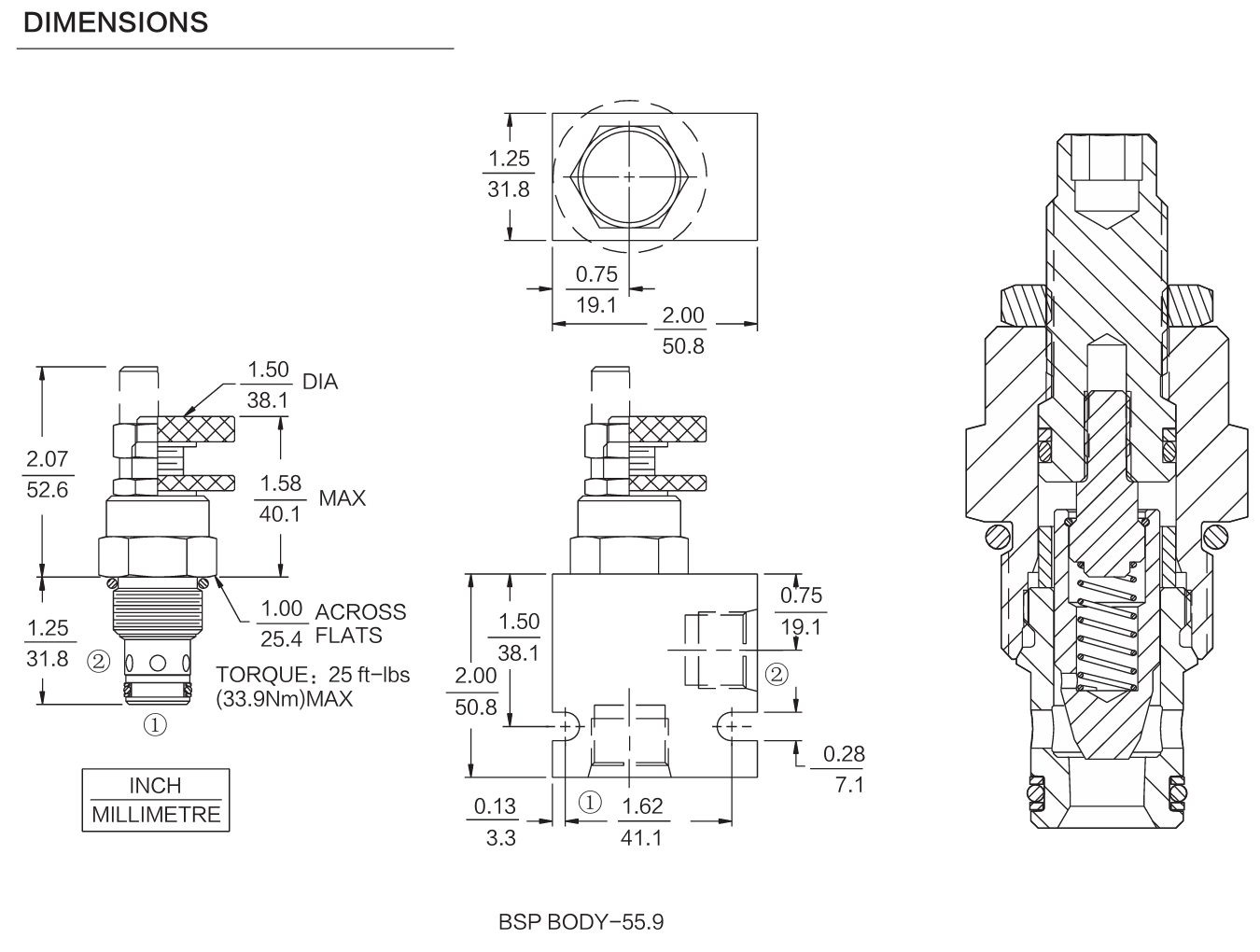

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

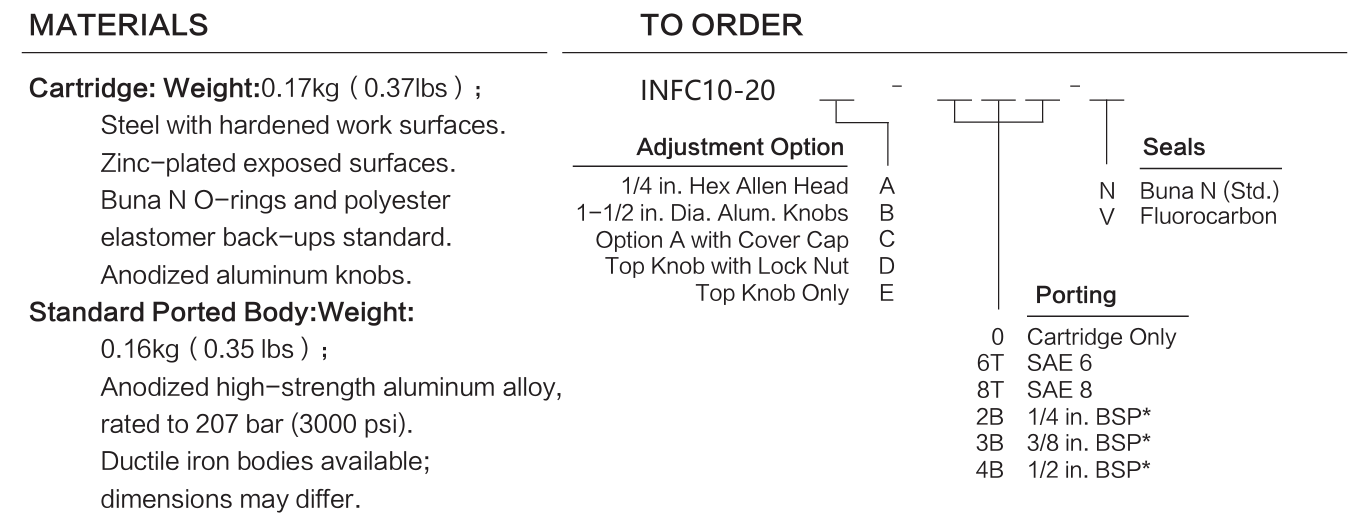

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
