Hydraulic Symbol
Description
A heavy duty, multifunction, screw-in, cartridge-style, spool-type flow divider/combiner.
Operation
In the dividing mode, the INFD52-45 will divert input flow from port 3 to ports 2 and 4, based on the ratio specified, regardless of operating pressure. When the flow direction is reversed, the valve will combine flows from port 2 and port 4 to port 3. Synchronizing flow is provided in both the dividing and combining modes at "bottomed" conditions in cylinder applications and at "stalled" conditions in motor applications.
Technical Data
| Operating Pressure | 345 bar (5000 psi) |
|---|---|
| Flow | Flow Options: Input Flow 60.6 lpm (16 gpm), Ratio 50:50, Model Code 44; Input Flow 90.8 lpm (24 gpm), Ratio 50:50, Model Code 66. Flow Accuracy: 10% from 25-100% of rated flow |
| Cavity | T12-4A; See bottom of this catalog. |
| Temperature | -40°C to 120°C |
Performance Curve

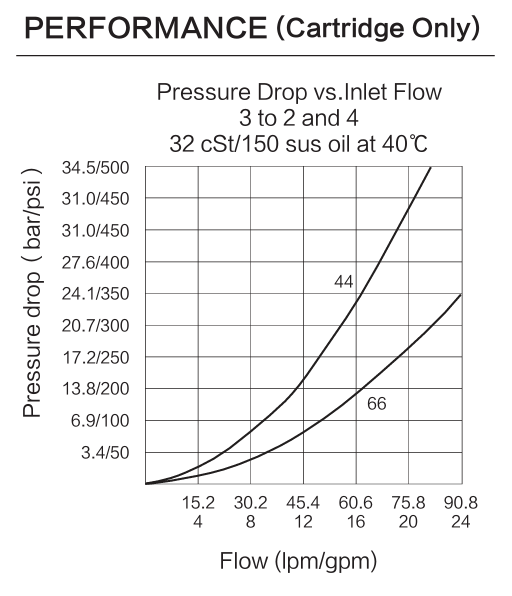

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

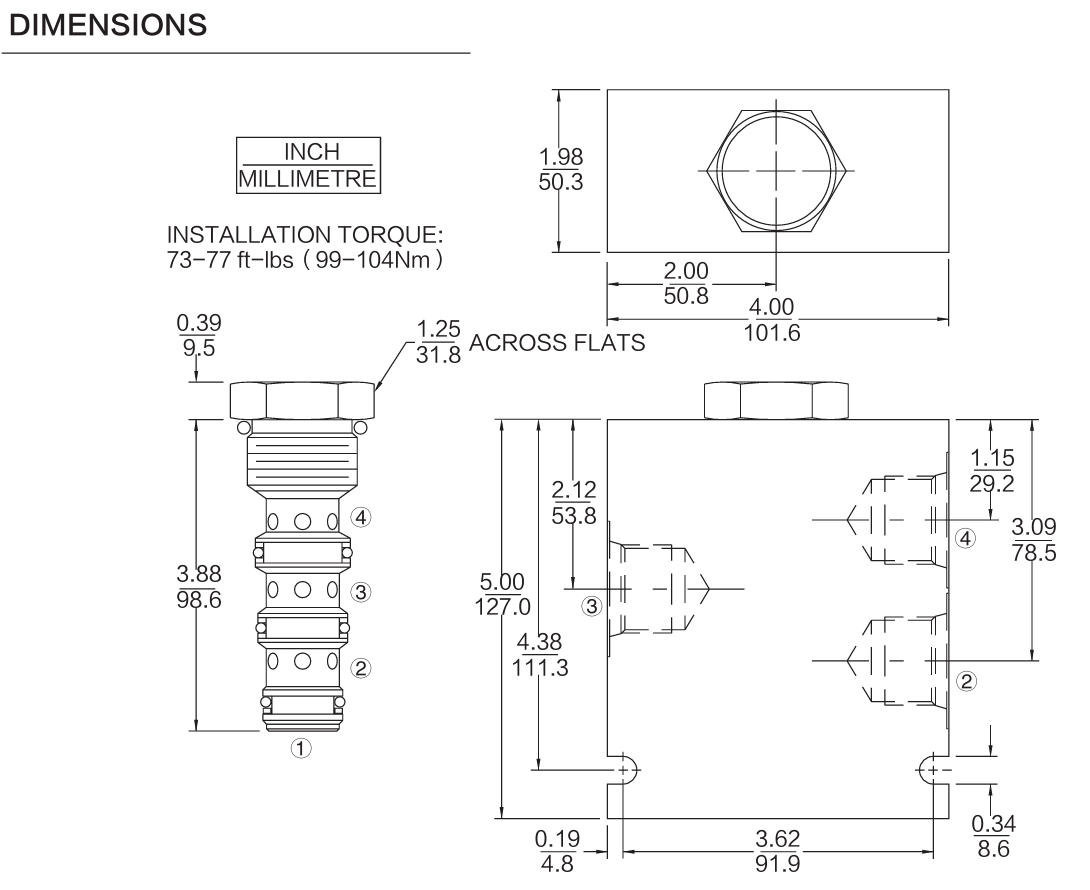

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

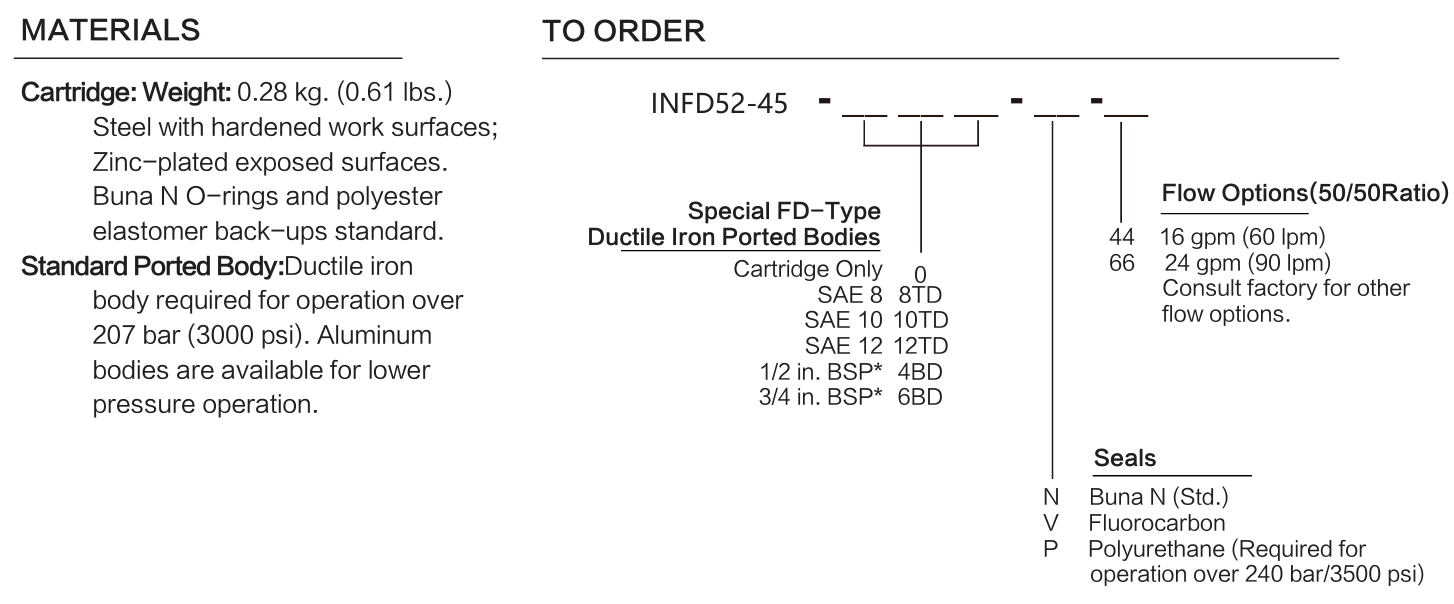

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
Request a Quote
