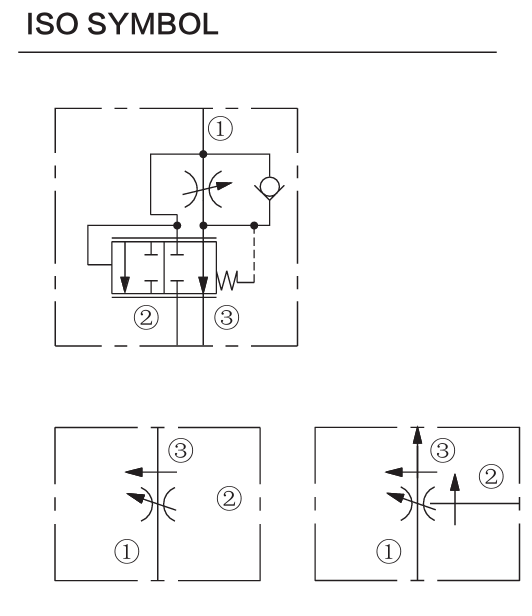

Hydraulic Symbol
Description
A screw-in, cartridge-style, adjustable orifice, pressure-compensated, manually operated, bypass-type hydraulic flow regulating valve. It can be used as a priority-type flow regulator or a restrictive-type 2-way flow regulator when the bypass port (port 2) is blocked.
Operation
The INFR10-39 maintains a constant flow rate from port 3 regardless of load pressure changes in the system downstream of port 3, or in the bypass leg at port 2. Reverse flow (port 3 to port 1) bypasses the control orifice. The regulated flow increases from closed to fully open, with counterclockwise rotation of the knob. Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, bypass pressure drop will increase unless a small amount of leakage is provided for the priority port. Consult factory.
Technical Data
| Operating Pressure | 240 bar (3500 psi) |
|---|---|
| Flow | Flow Rate: 3-ported regulated flow: 0-38 lpm (0-10 gpm); 2-ported regulated flow: 0-34 lpm (0-9 gpm). Input Flow: 3-ported 0-38 lpm (0-10 gpm) nominal; 0-57 lpm (0-15 gpm) max. |
| Cavity | T10-3A; See bottom of this catalog. |
| Internal Leakage | 207 bar (3000 psi): 33 cc/minute (2 cu. in./minute) |
| Temperature | -40°C to 120°C |

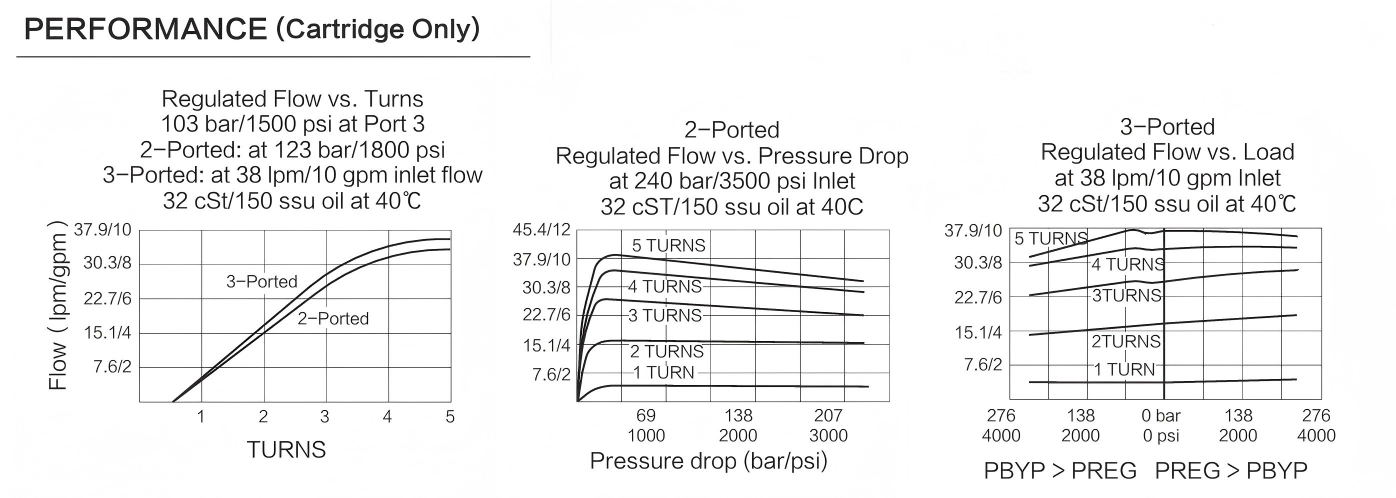

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

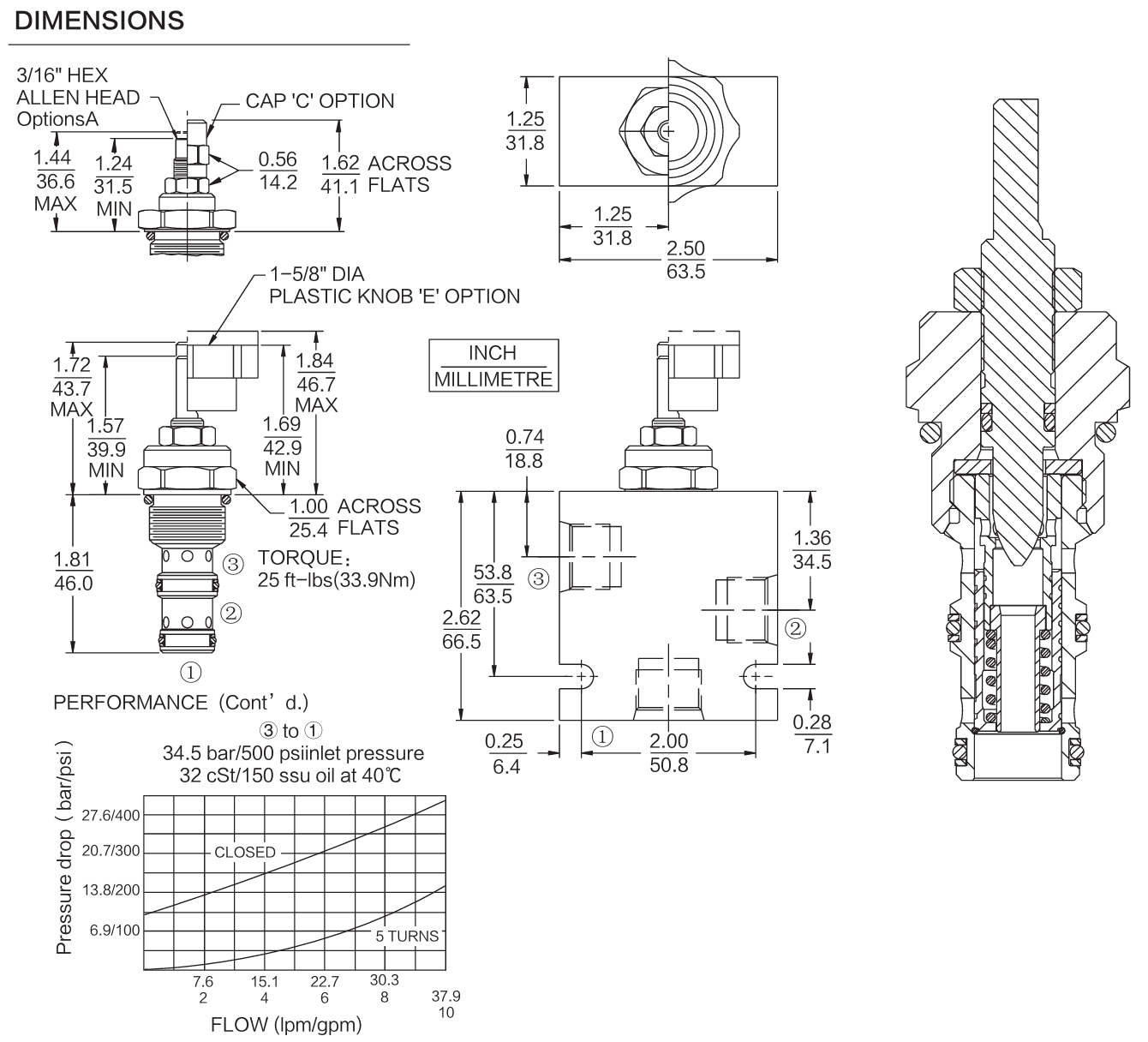

Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
