Hydraulic Symbol
Description
A screw-in, cartridge-style, Regulator, Pressure-Compensated Restrictive style, Adjustable Flow Control Valve.
Operation
The valve maintains a constant flow within specified accuracies from port 1 to port 2 regardless of downstream load pressure. When flow produces a minimum predetermined pressure differential across the compensator spool control orifice, the spool shifts against the spring force to throttle the flow and maintain the flow setting. Reverse flow is not regulated.
Technical Data
| Operating Pressure | 240 bar |
|---|---|
| Flow | Regulated: 3-26 l/min; Flow Tolerances: ±15% |
| Cavity | T10-2B; See bottom of this catalog. |
| Temperature | -22°F to +250°F (-30°C to +120°C) |

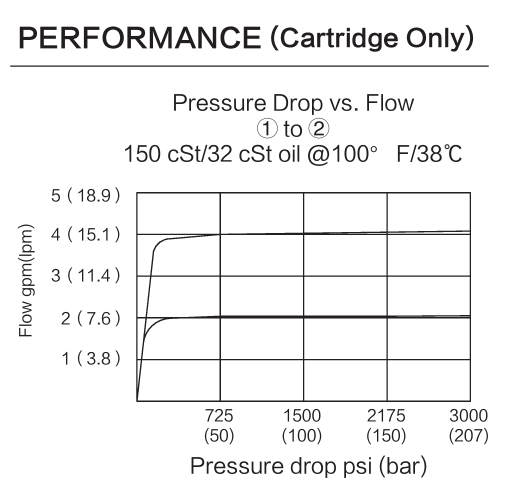

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

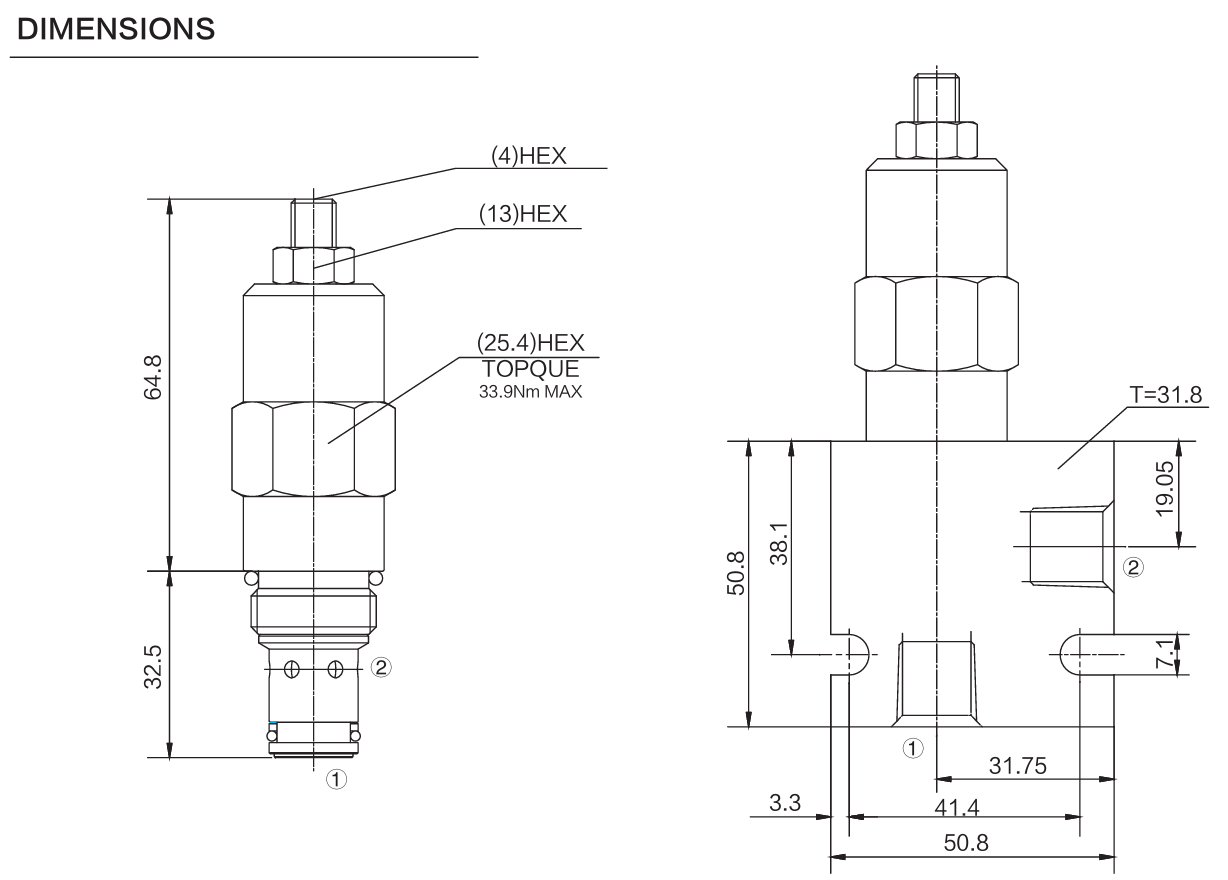

Dimensions
Dimension drawing is provided for installation and cavity review.

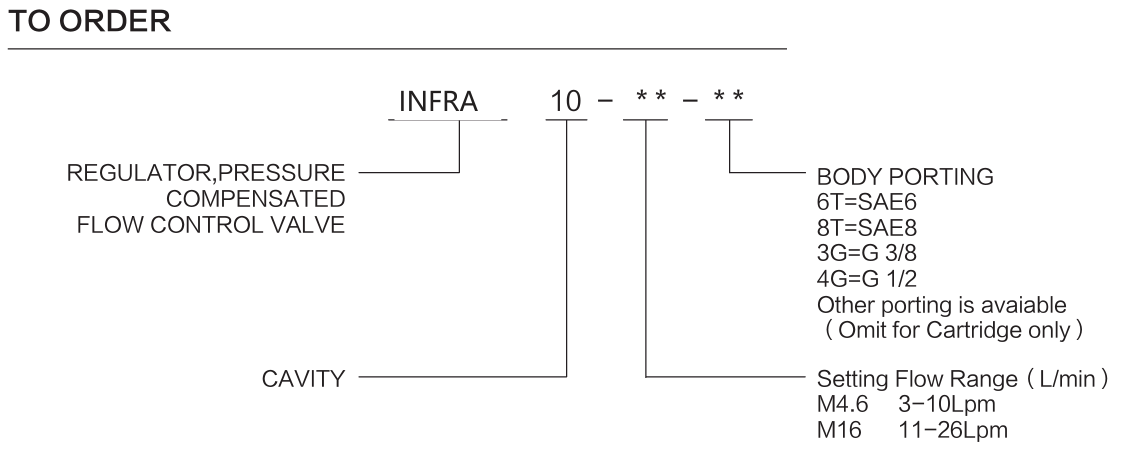

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
