Hydraulic Symbol
Description
A screw-in, cartridge-style, push and release type hand pump with two built-in checks.
Operation
The INHP10-20 will provide a specific displacement of oil to port 1. Note: As with any mechanical hydraulic actuator (piston rods, rotating pump shaft, etc.) the shaft will become coated with a minute amount of oil from the internal high pressure system. The rod protruding from the hand pump may feel damp with oil after use. This is desirable because the oil coating serves to lubricate the shaft seal, reducing friction and assuring extended seal life.
Technical Data
| Operating Pressure | Port 1: 207 bar / 3000 psi; port 2: 69 bar / 1000 psi |
|---|---|
| Flow | Displacement: 1.36 cc / 0.083 cu. in. per stroke |
| Cavity | T10-2B |
| Internal Leakage | From port 1 to port 2: 0.15 cc / 3 drops per minute maximum at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C |
Performance Curve
Dimensions

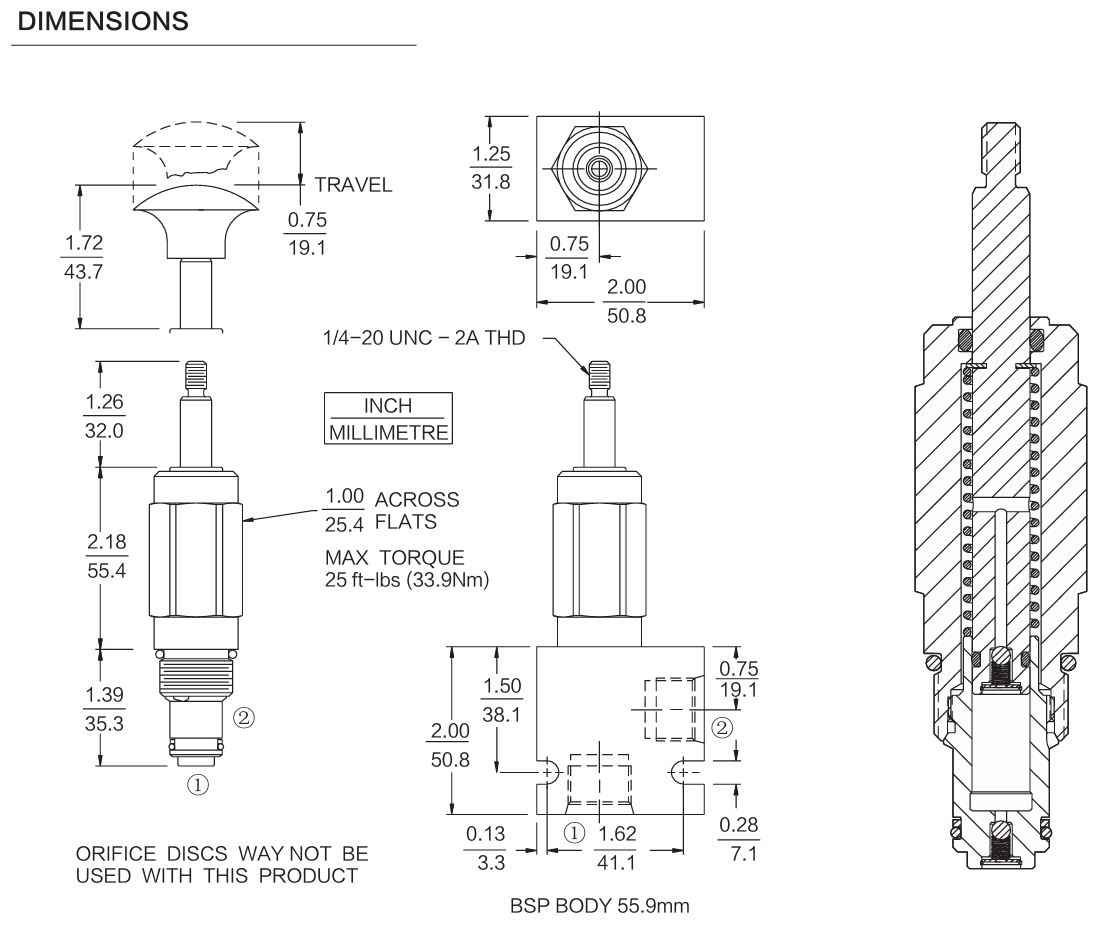

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

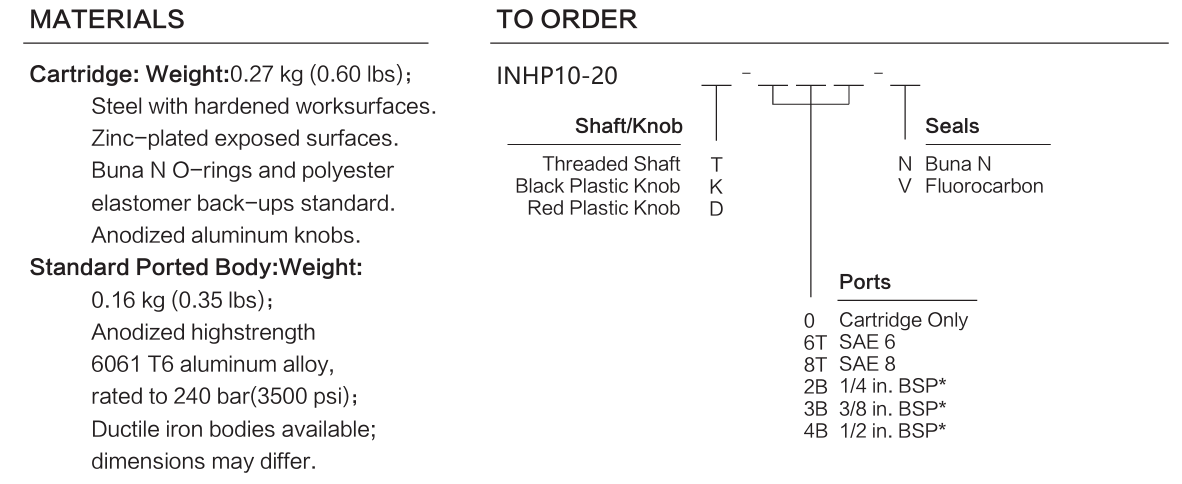

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
