Hydraulic Symbol
Description
A screw-in, cartridge-style, push and release type hand pump with two built-in checks.
Operation
The INHP10-21 provides hydraulic flow to 0.65 cu. in. per stroke, at pressures to 207 bar (3000 psi). Integral suction and outlet checks provide a compact device which delivers true operational system flows. See chart for handle torque requirements. Note: As with any mechanical hydraulic actuator (piston rods, rotating pump shaft, etc.) the shaft will become coated with a minute amount of oil from the internal high pressure system. The rod protruding from the hand pump may feel damp with oil after use. This is desirable because the oil coating serves to lubricate the shaft seal, reducing friction and assuring extended seal life.
Technical Data
| Operating Pressure | 207 bar / 3000 psi |
|---|---|
| Flow | Up to 10.6 cc (0.65 cu. in.) per stroke |
| Cavity | T10-2B |
| Internal Leakage | 5 drops/minute (0.25 ml/min) maximum at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C |

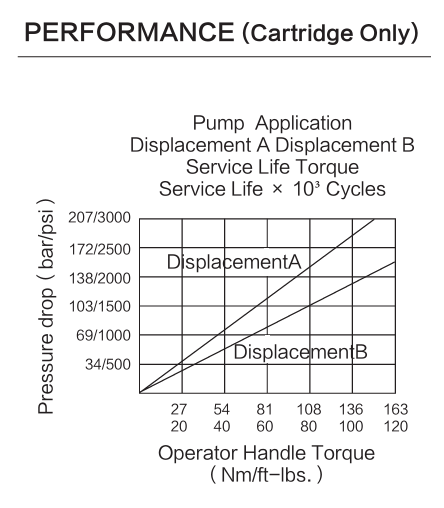

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

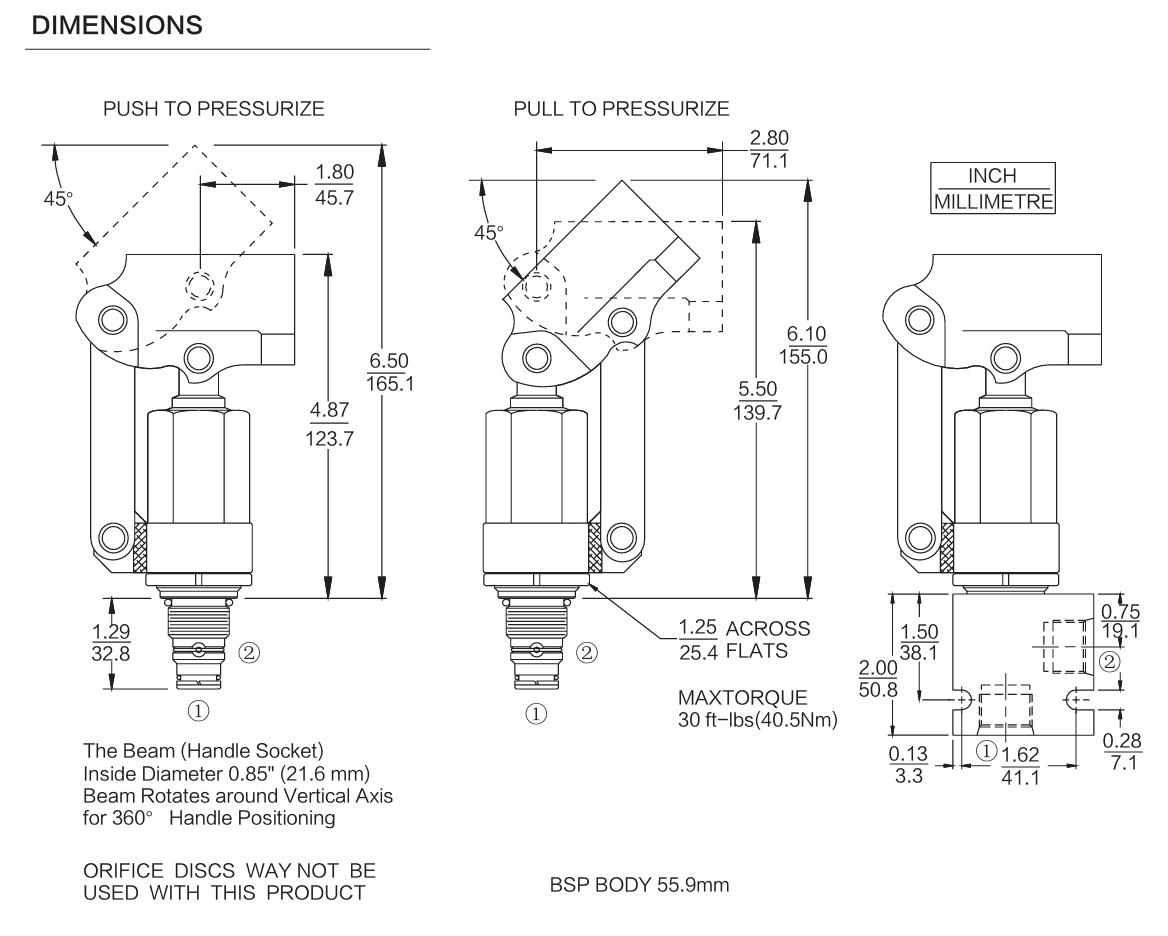

Dimensions
Dimension drawing is provided for installation and cavity review.

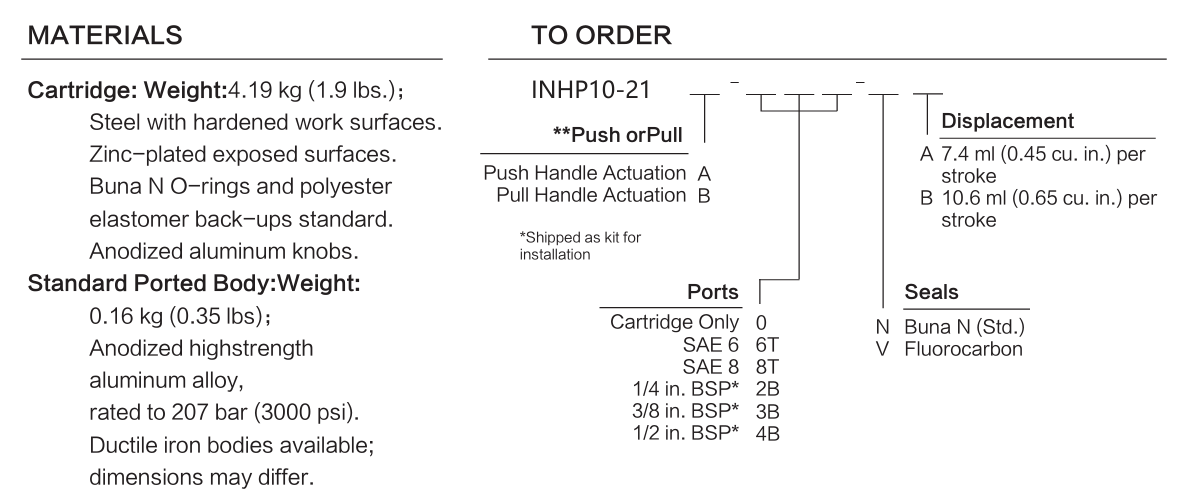

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
