Hydraulic Symbol
Description
A screw-in, cartridge-style, push or pull type hand pump with two built-in checks.
Operation
The INHP16-21 provides hydraulic flow to 1.3 cu. in. per stroke, at pressures to 96 bar (1500 psi). Note: As with any mechanical hydraulic actuator (piston rods, rotating pump shaft, etc.) the shaft will become coated with a minute amount of oil from the internal high pressure system. The rod protruding from the hand pump may feel damp with oil after use. This is desirable because the oil coating serves to lubricate the shaft seal, reducing friction and assuring extended seal life.
Technical Data
| Operating Pressure | System Pressure: 207 bar / 3000 psi; pressure generated by INHP16-21: 96 bar / 1500 psi maximum |
|---|---|
| Flow | Displacement up to 21.3 cc (1.3 cu. in.) per stroke |
| Cavity | T16-2A |
| Internal Leakage | From port to the inside of the pump: 5 drops/minute (0.25 cc/minute) max. at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C |
Performance Curve

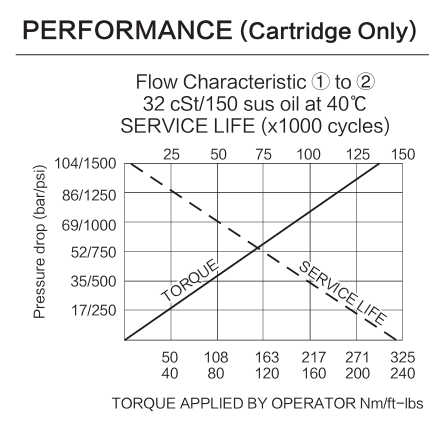

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

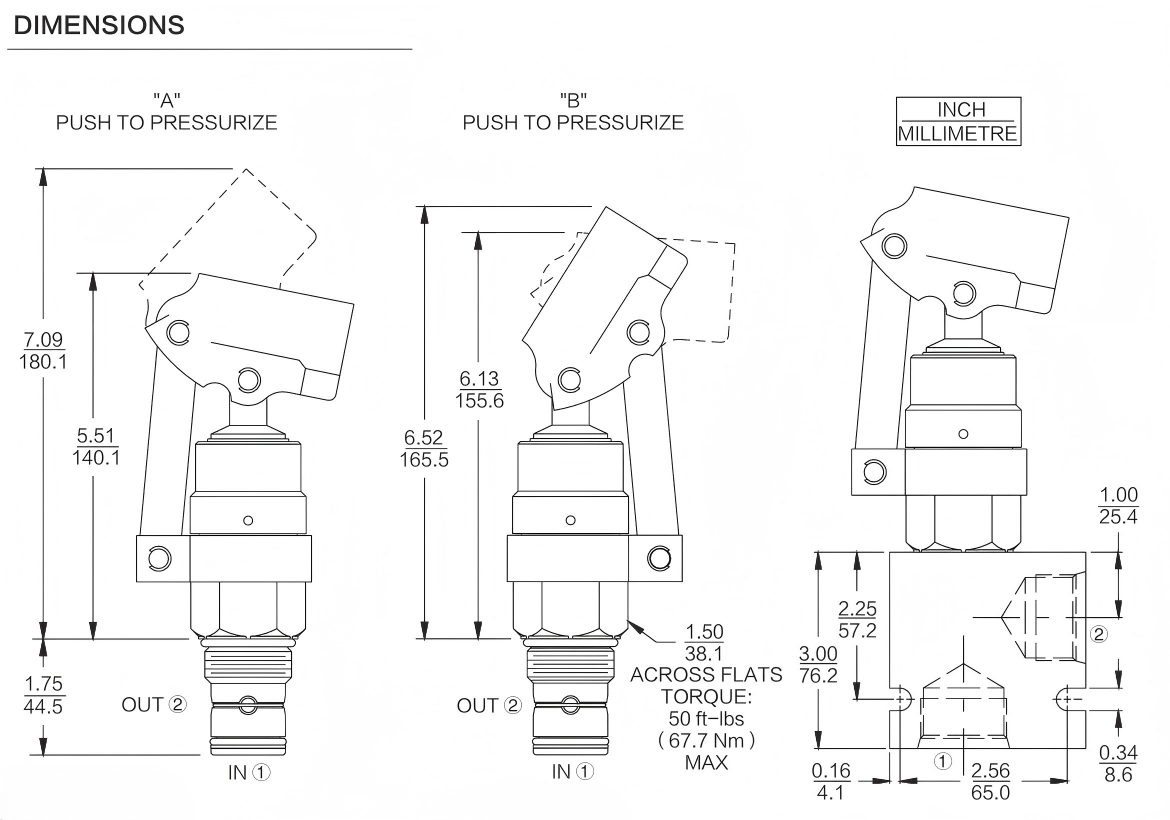

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

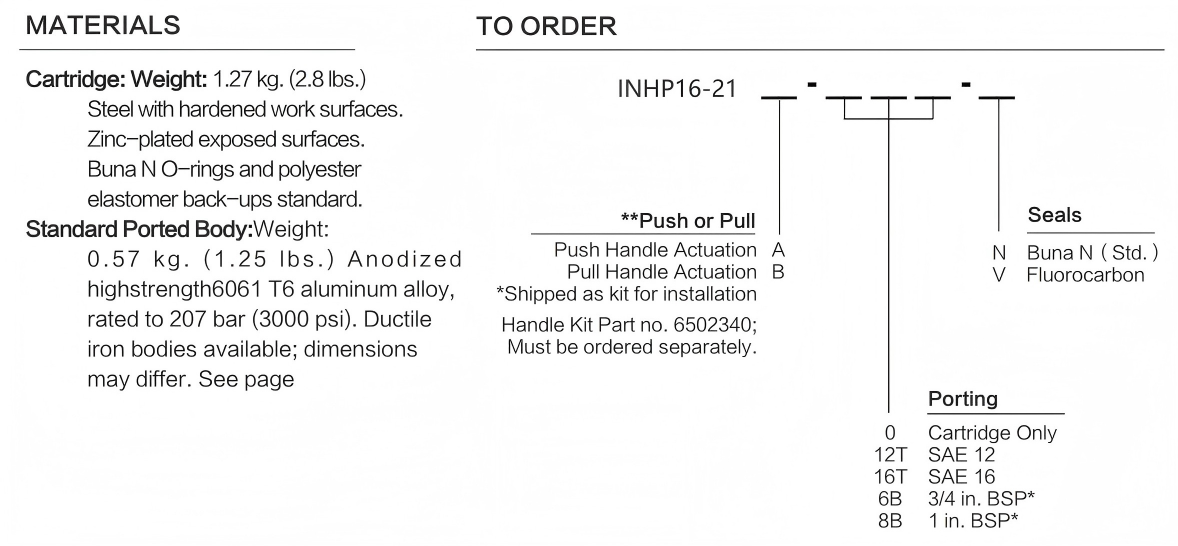

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
