Hydraulic Symbol
Description
A load-shuttling, screw-in, cartridge-style hydraulic check valve, for use in blocking circuits where a priority of flow/direction is given to a higher pressure circuit over a lower one.
Operation
The INLS04-B30 will allow flow from the higher pressure of port 1 or port 3 to port 2. The valve is commonly used to direct oil from the pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake. It can also be used as a load-sense signaling valve.
Technical Data
| Operating Pressure | 240 bar / 3500 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T04-2D |
| Internal Leakage | 0.25 cc/minute (5 drops/minute) max. at 207 bar / 3000 psi |
| Temperature | -40°C to 120°C with standard Buna seals |

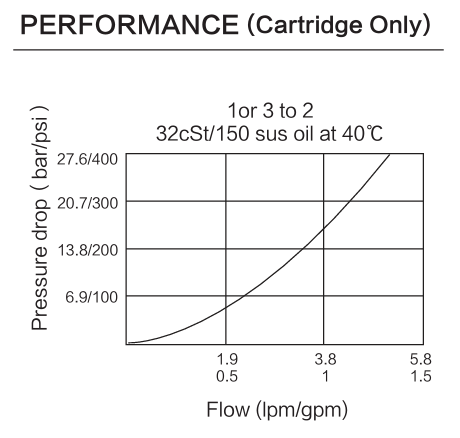

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

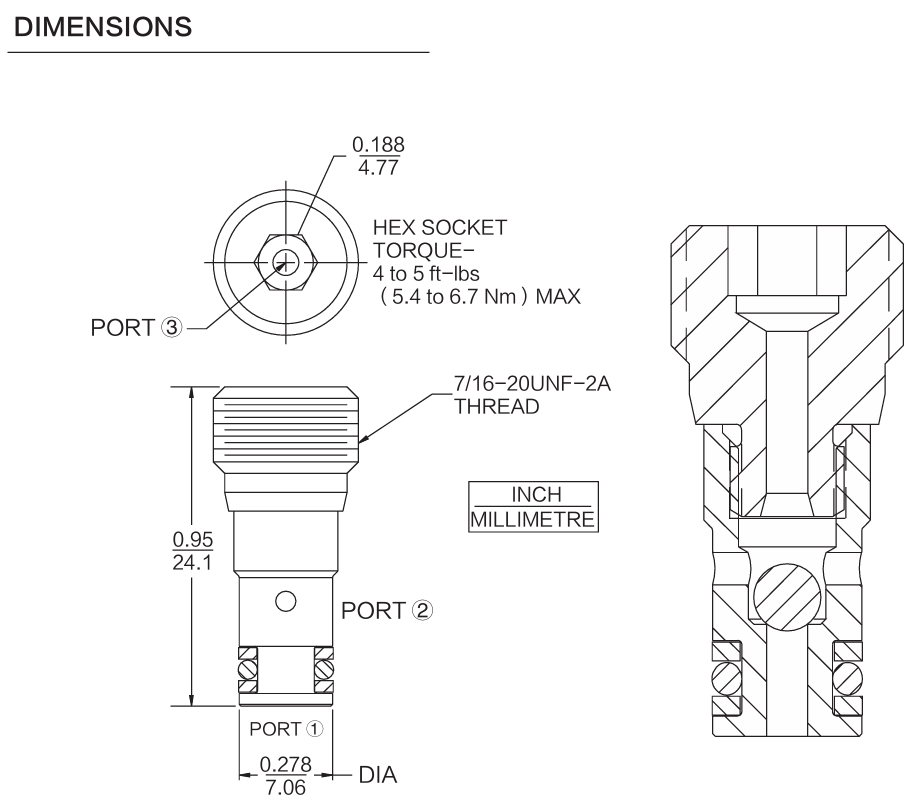

Dimensions
Dimension drawing is provided for installation and cavity review.

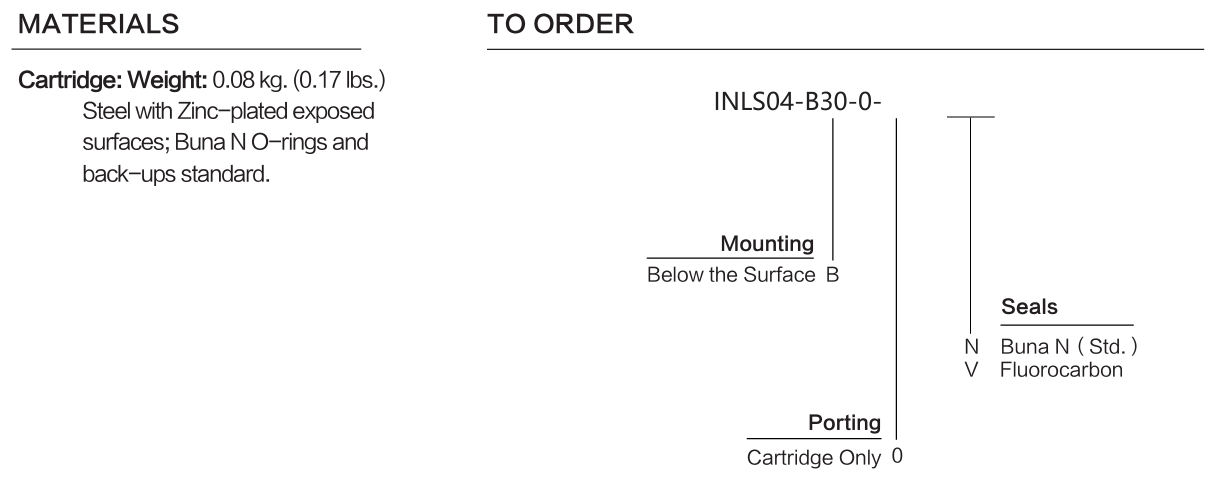

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
