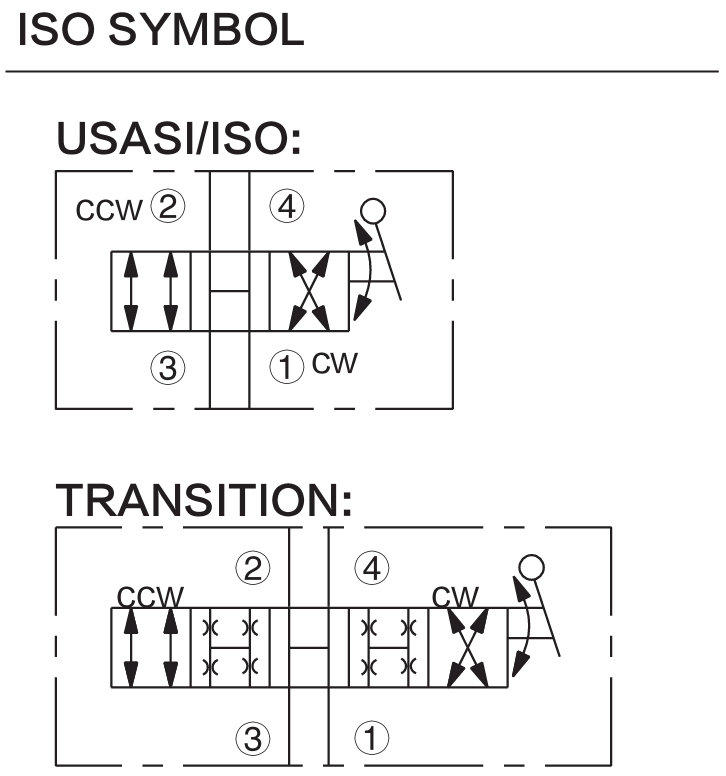

Hydraulic Symbol
Description
Manually-operated four-way, three-position directional valve, with adaptability to a variety of adjustment operators (ordered separately), in a variety of spool configurations.
Operation
Three positions: centered, 45° counterclockwise, and 45° clockwise. In the center position all ports are open. In the 45° counterclockwise from center position, ports 1 and 4 are open while ports 2 and 3 are open. In the 45° clockwise from center position, ports 1 and 2 are open while ports 3 and 4 are open. All ports are partially open in transition.
Technical Data
| Operating Pressure | 240 bar / 3500 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-4A |
| Internal Leakage | 164 cc/minute (10 cu. in./minute) at 240 bar / 3500 psi |
| Temperature | -40°C to 120°C with standard Buna N seals |

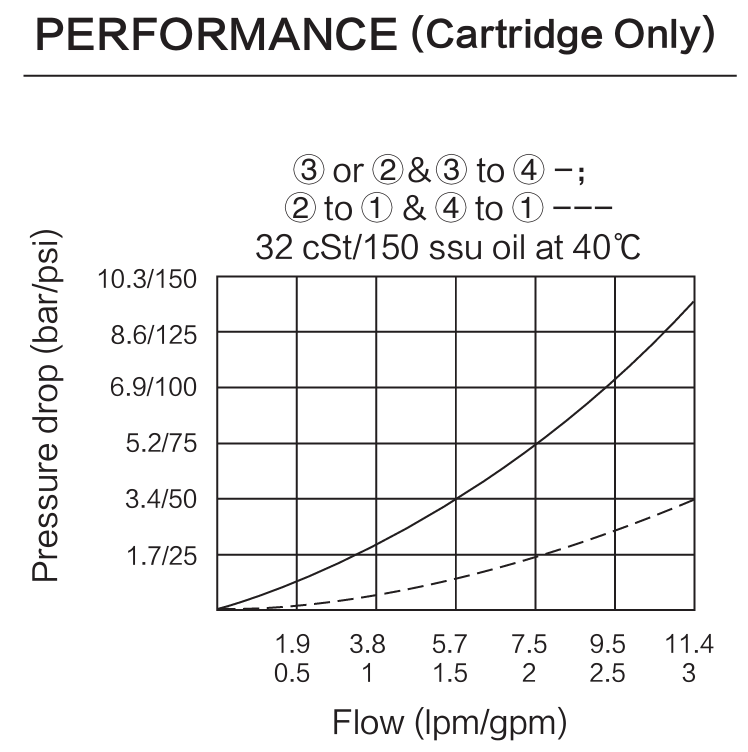

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

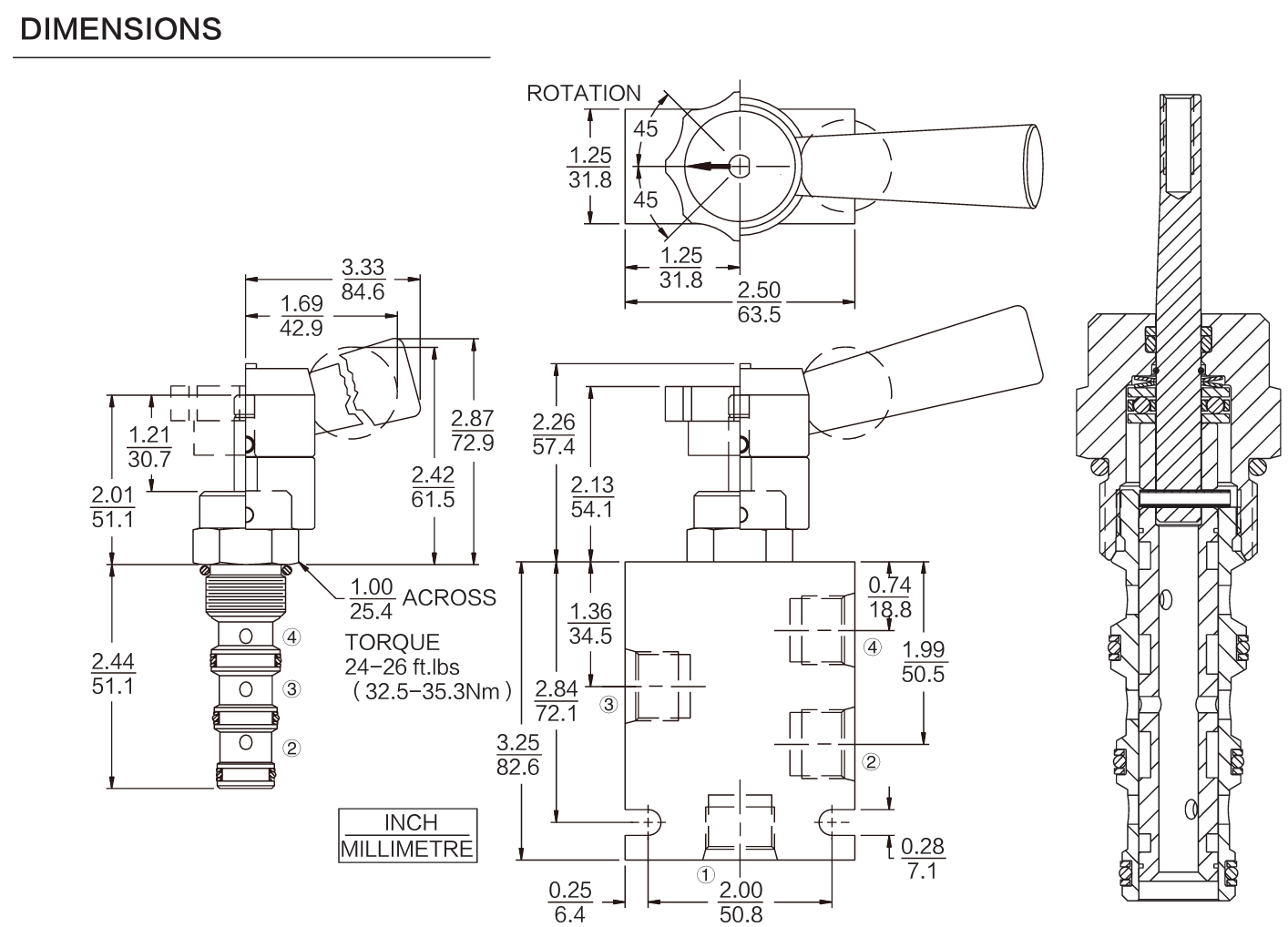

Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
