Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, poppet-type, hydraulic relief valve intended for use as a pressure limiting device for common hydraulic circuit protection.
Operation
The INNRV-08 blocks flow from port 1 to port 2 until sufficient pressure is present at port 2 to force the poppet from its seat.
Technical Data
| Operating Pressure | 350 bar (5000 psi) |
|---|---|
| Flow | See performance chart |
| Cavity | T08-2E |
| Internal Leakage | 0.25 cc/minute (5 drops/minute) max. to 80% of nominal setting |
| Temperature | -40°C to 120°C |
Performance Curve

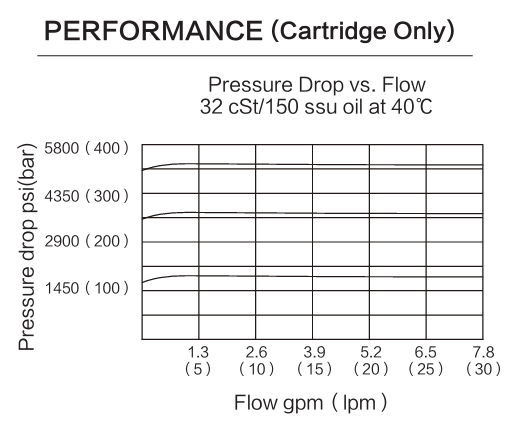

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

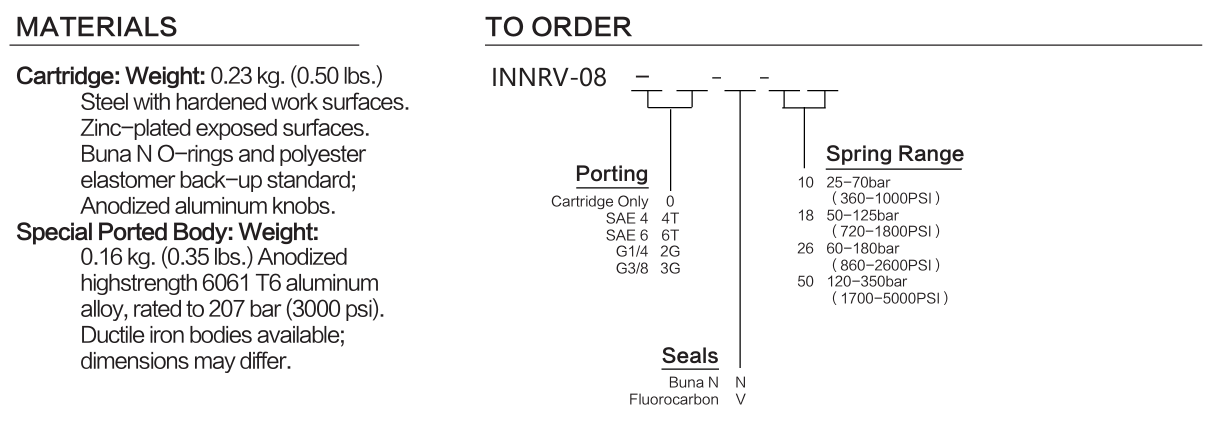

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
