Hydraulic Symbol
Description
A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve.
Operation
The INNV-08 increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation.
Technical Data
| Operating Pressure | Cartridge: 250 bar (3650 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-2E; See bottom of this catalog. |
| Temperature | -30°C to 120°C |
Performance Curve

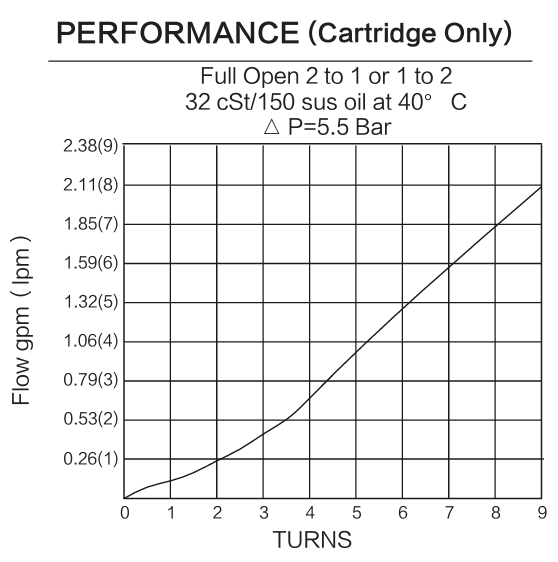

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

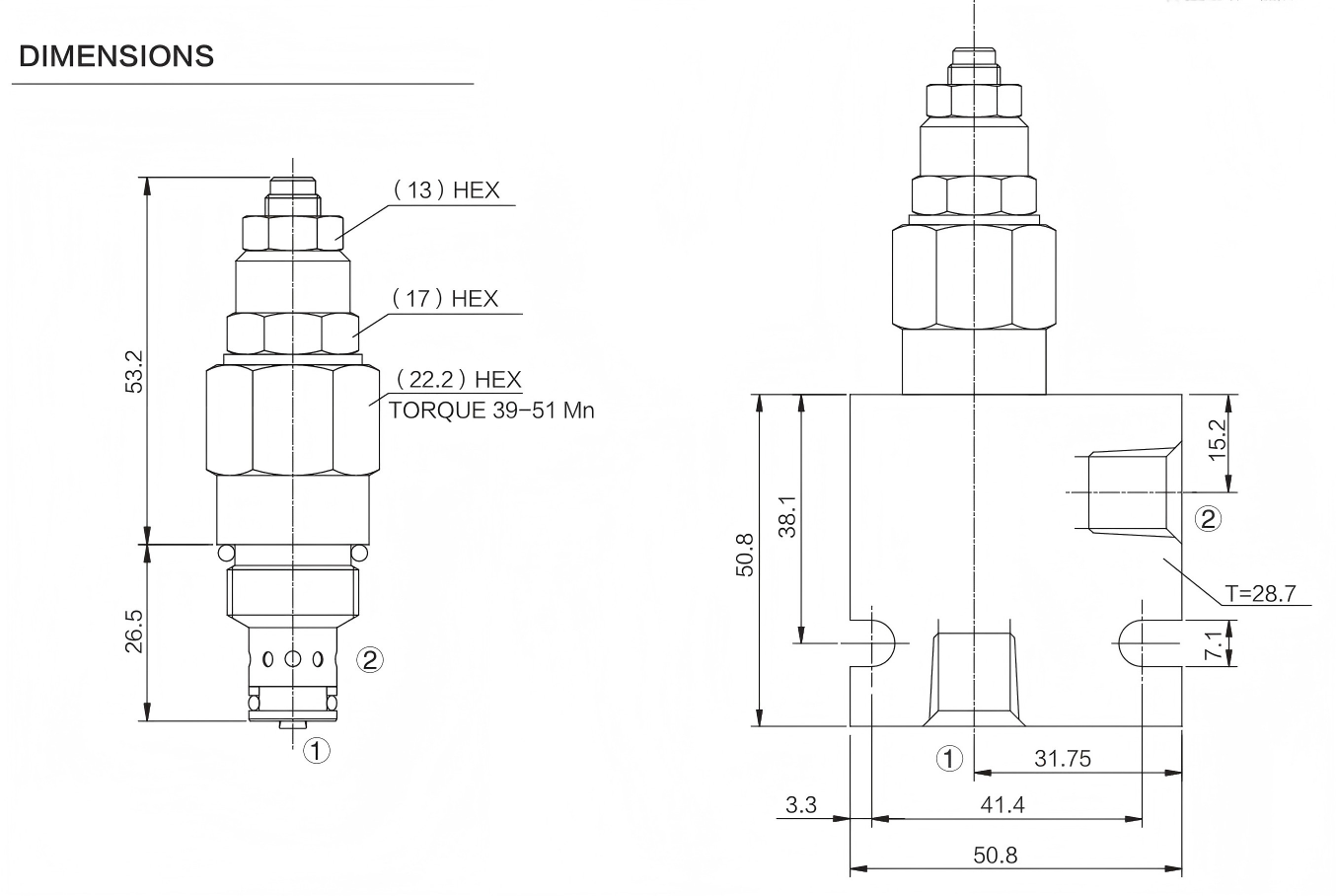

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

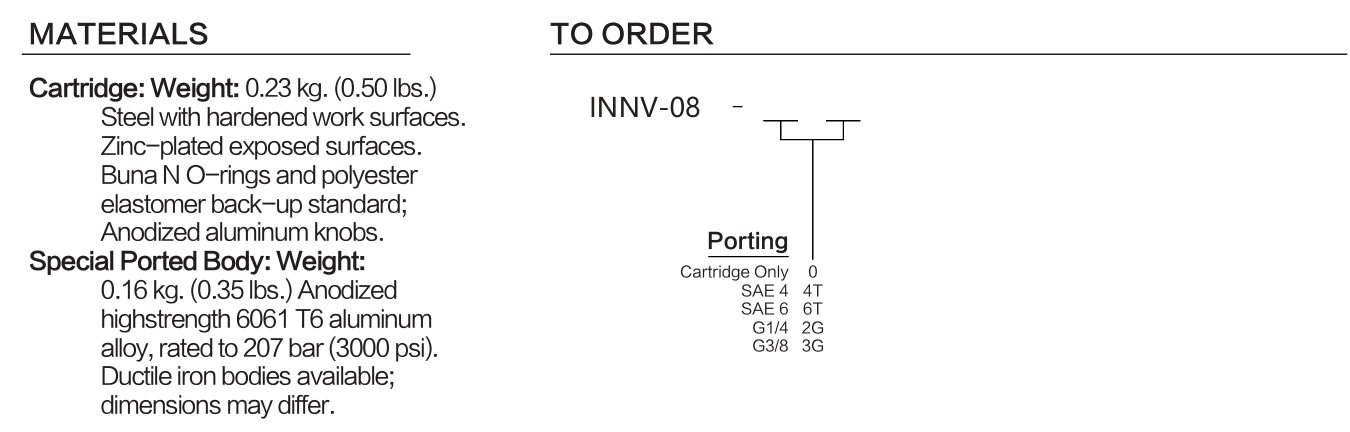

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
