Hydraulic Symbol
Description
A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve. It is intended for applications requiring fine adjustment over multiple turns.
Operation
The INNV08-21 increases its orifice value from fully closed to open with adjustment rotation in the counterclockwise direction. Effective adjustment is linear to eight turns. Note: This is intended as a low-effort adjustment suitable for operation through linkage. It may be unsuitable in environments where vibration is present.
Technical Data
| Operating Pressure | 240 bar (3500 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-2E; See bottom of this catalog. |
| Internal Leakage | 0.25 cc/minute (5 drop/minute) max. at shut-off |
| Temperature | -40°C to 120°C |

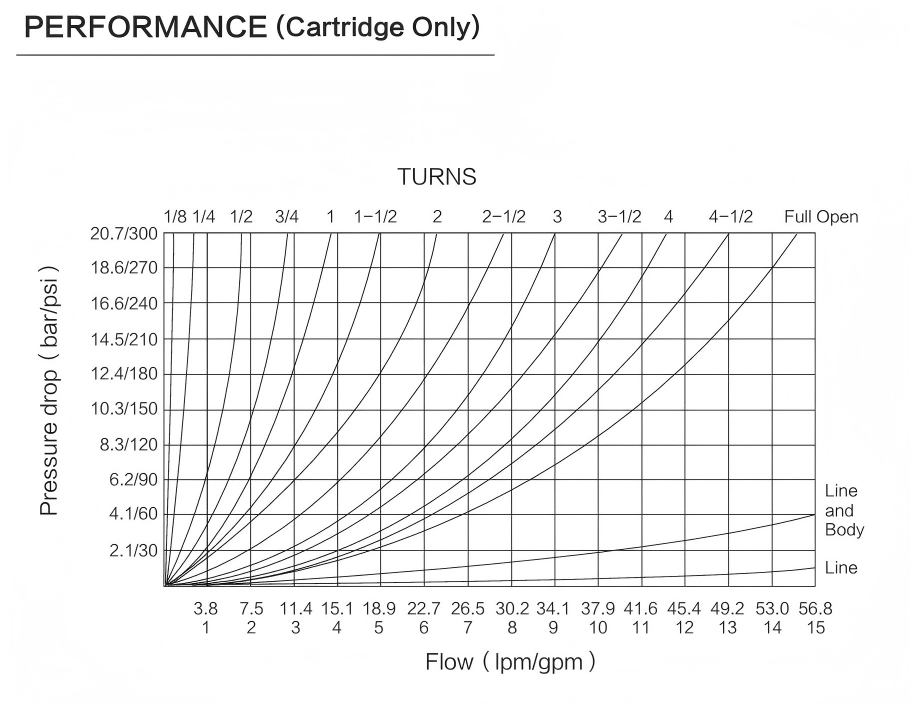

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

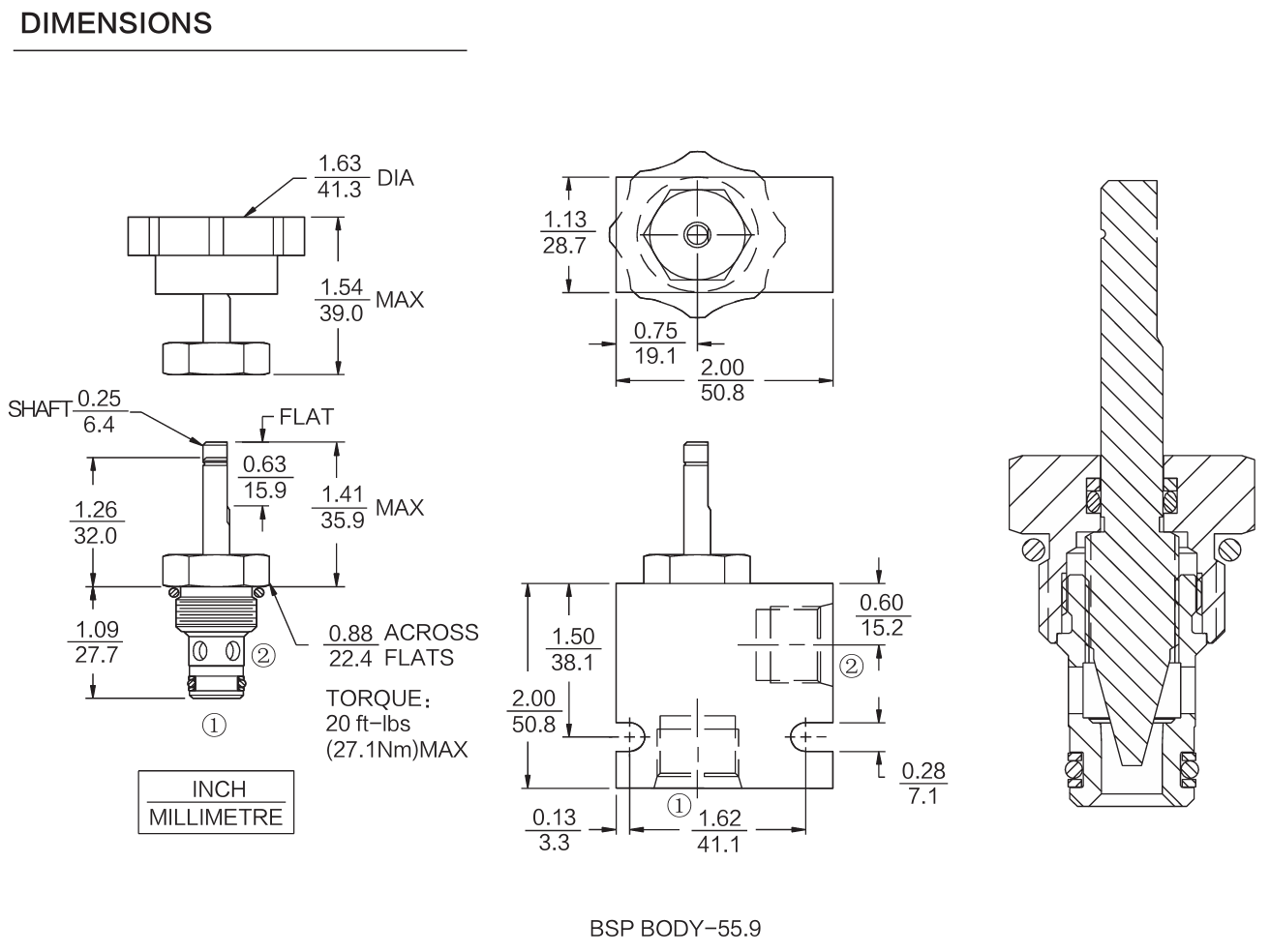

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
