Hydraulic Symbol
Description
A screw-in, cartridge-style, variable orifice, hydraulic flow restrictor valve that requires only 5-1/2 turns for full adjustment.
Operation
The INNV10-22 increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation. Effective adjustment is linear over the 5-1/2 turn adjustment range. Settings are lockable in any position.
Technical Data
| Operating Pressure | Inlet: 240 bar (3500 psi) |
|---|---|
| Flow | 57 lpm (15 gpm) nominal at 11 bar (160 psi) at full open 5.5 turns |
| Cavity | T10-2B; See bottom of this catalog. |
| Internal Leakage | 0.05 cc/minute (1 drop/minute) max. at shut-off |
| Temperature | -40°C to 120°C |
Performance Curve

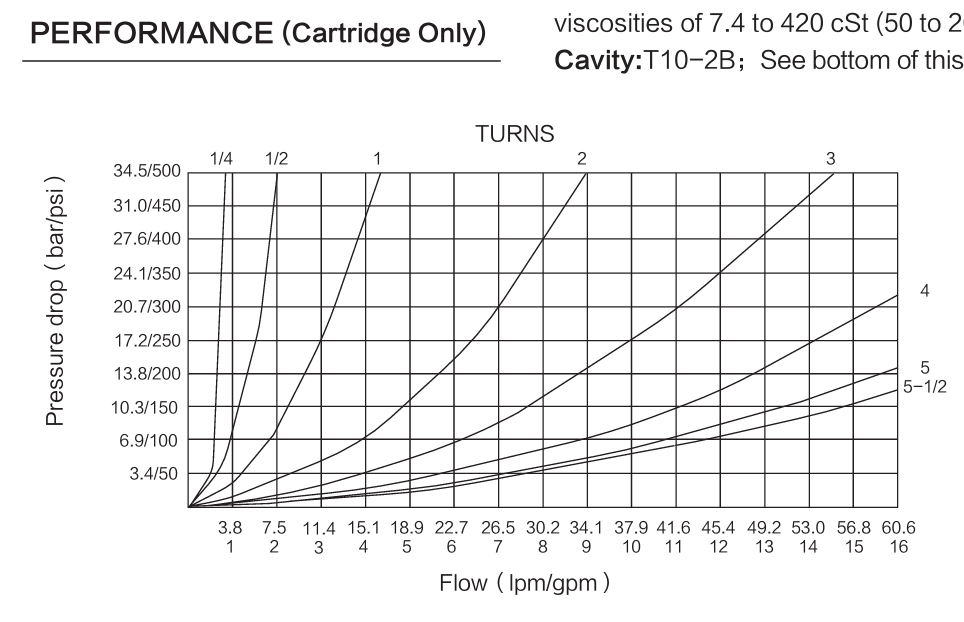

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

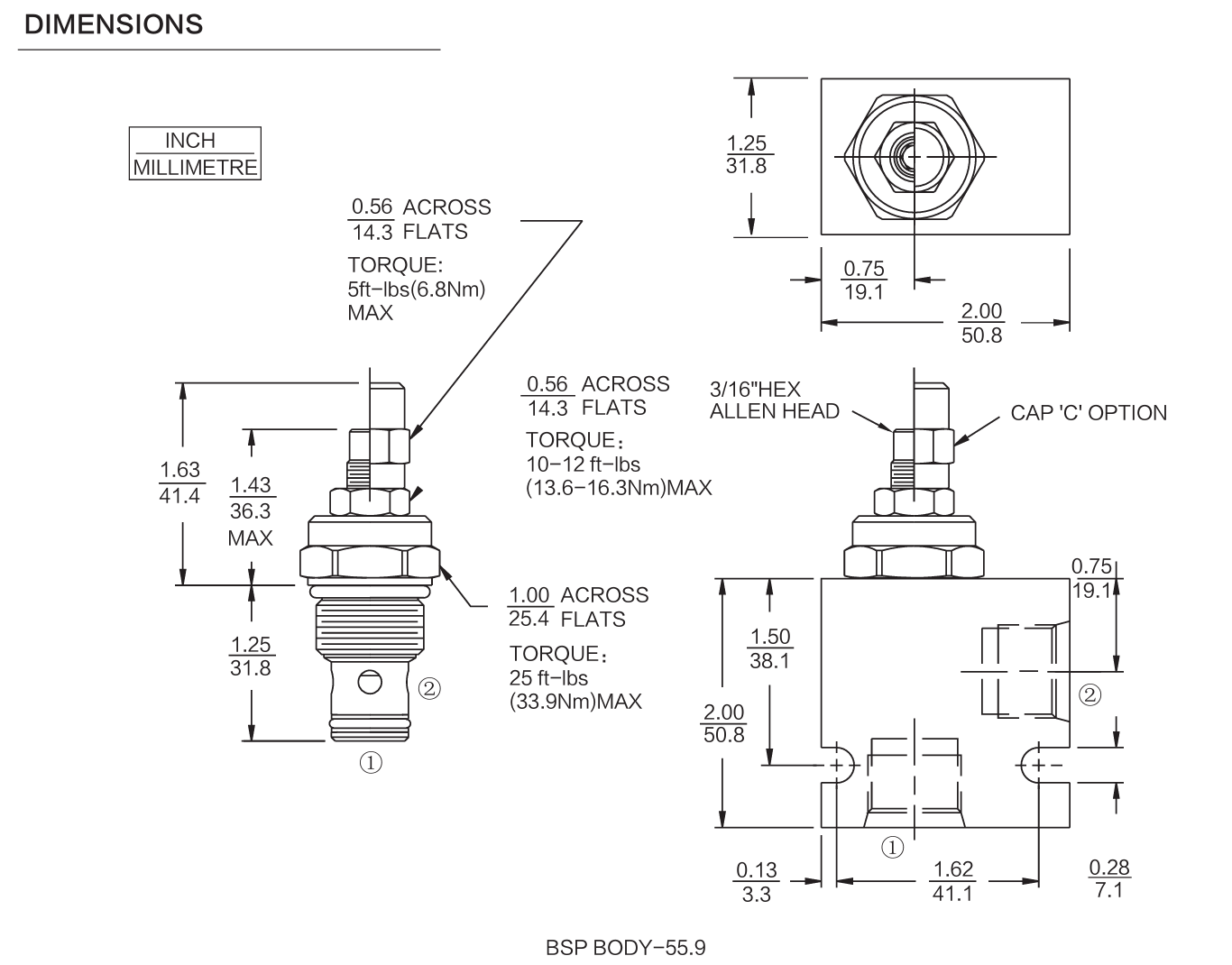

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

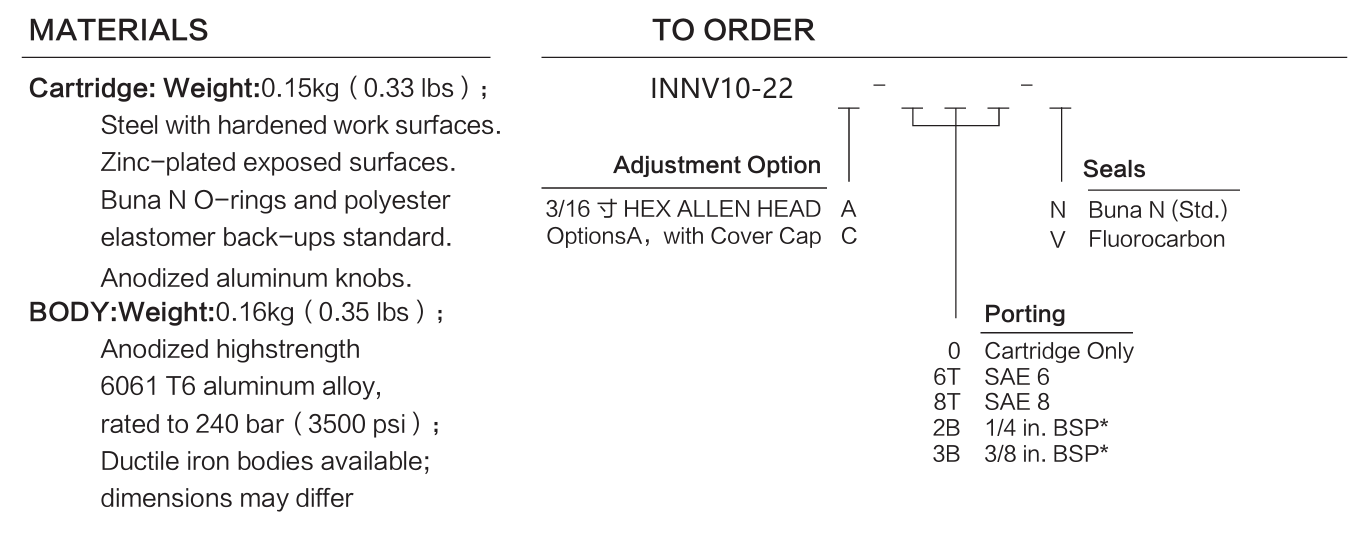

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
