Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated, hydraulic check valve for use in blocking or load-holding circuits.
Operation
The INPC08-30 allows flow passage from port 2 to port 3, while normally blocking flow from port 3 to port 2. Flow will be allowed from port 3 to port 2 when sufficient pressure is applied at port 1. The cartridge has a 3:1 pilot ratio, meaning that at least one-third of the load pressure held at port 3 is required at port 1 to open the valve. The check is spring-biased to assure holding in static or no-load conditions. A sealed pilot piston option is available.
Technical Data
| Operating Pressure | 240 bar / 3500 psi |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-3A |
| Internal Leakage | Technical Data Pending |
| Temperature | -40°C to 120°C |

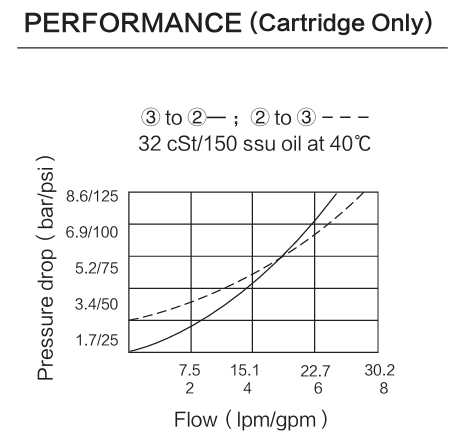

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.

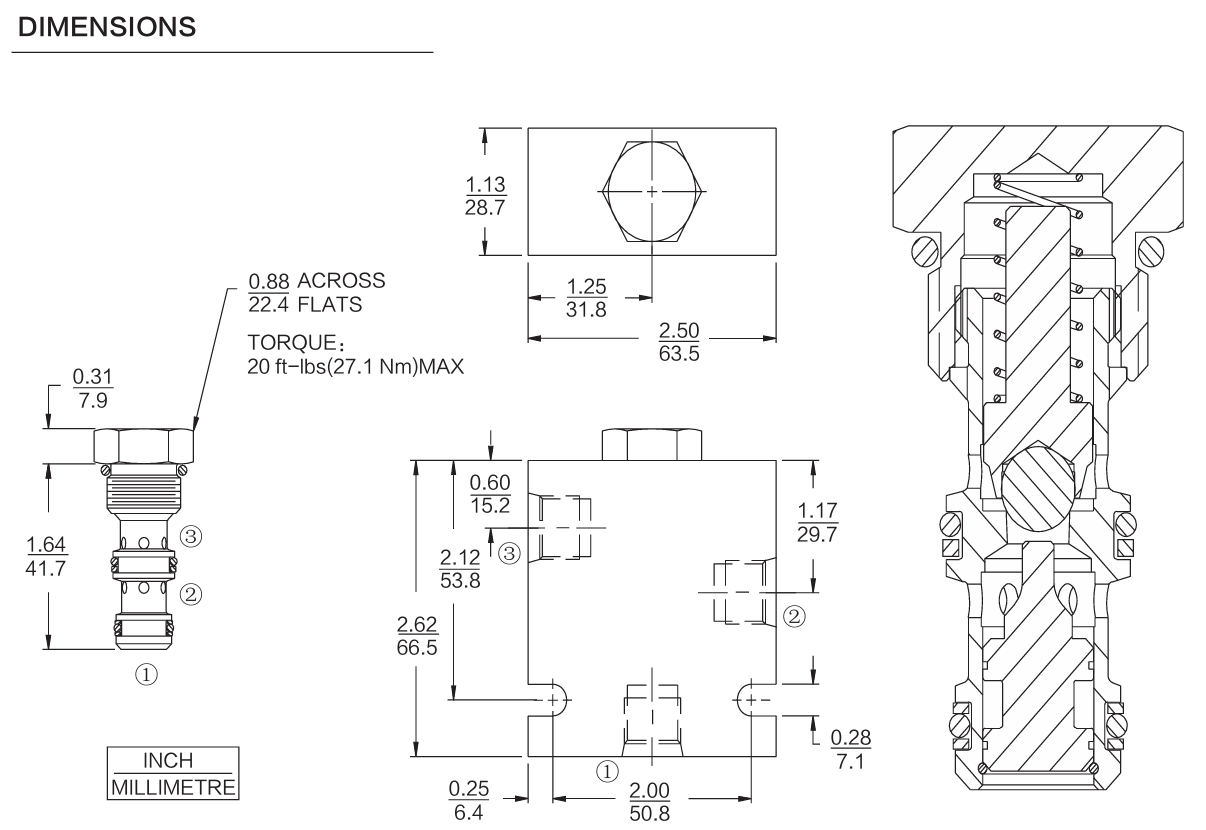

Dimensions
Dimension drawing is provided for installation and cavity review.

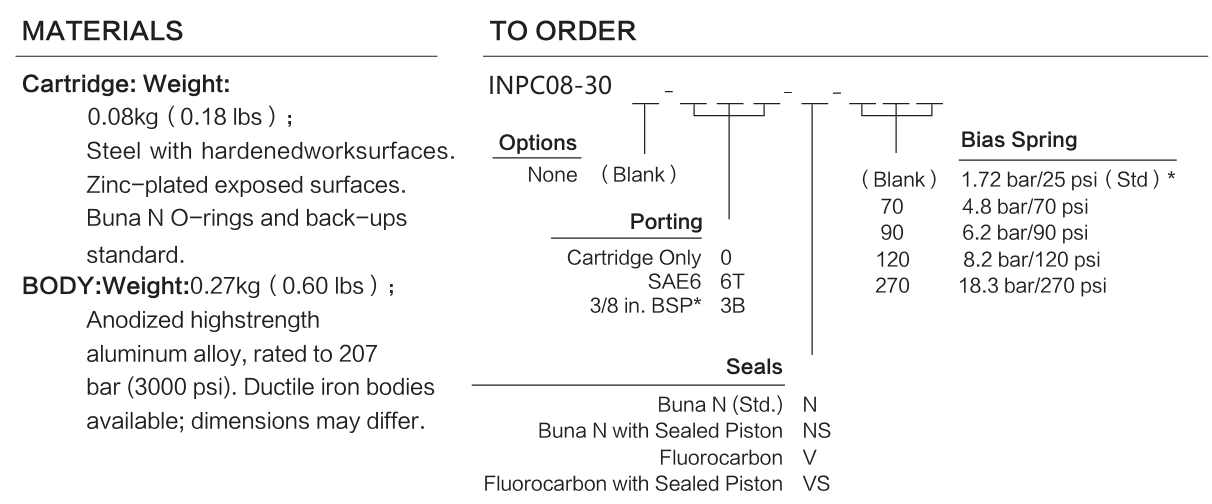

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
File Download
Useful RFQ Information
Please provide the following information for faster matching:
- Original part number, current supplier reference or product photos
- Voltage, connector type and coil dimensions, if applicable
- Cavity, pressure, flow and seal requirements, if applicable
- Equipment application and expected quantity
- For custom manufacturing or special matching, drawings, samples or detailed photos are recommended for accurate review.
Thank you for providing the required information. This will help us review and match the correct product more efficiently.
