Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with external pilot and internal spring chamber drain.
Operation
In its steady state, INPS08-32 blocks flow from port 2 to port 3. On attainment of a pre-determined pressure at port 1, the valve shifts to open port 2 to port 3. Back pressure at port 3 will have a direct (1:1) effect on the valve setting because the spring chamber is vented out port 3.
Technical Data
| Operating Pressure | 240 bar (3500 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T08-3A |
| Internal Leakage | 82 cc/minute (5 cu. in./minute) max. to 90% of nominal setting |
| Temperature | -40°C ~ 120°C with Buna N seals |

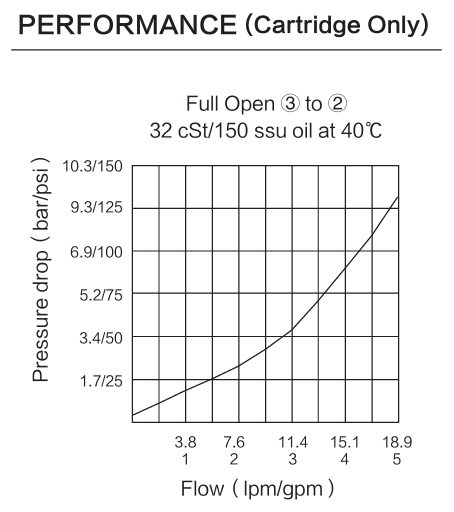

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

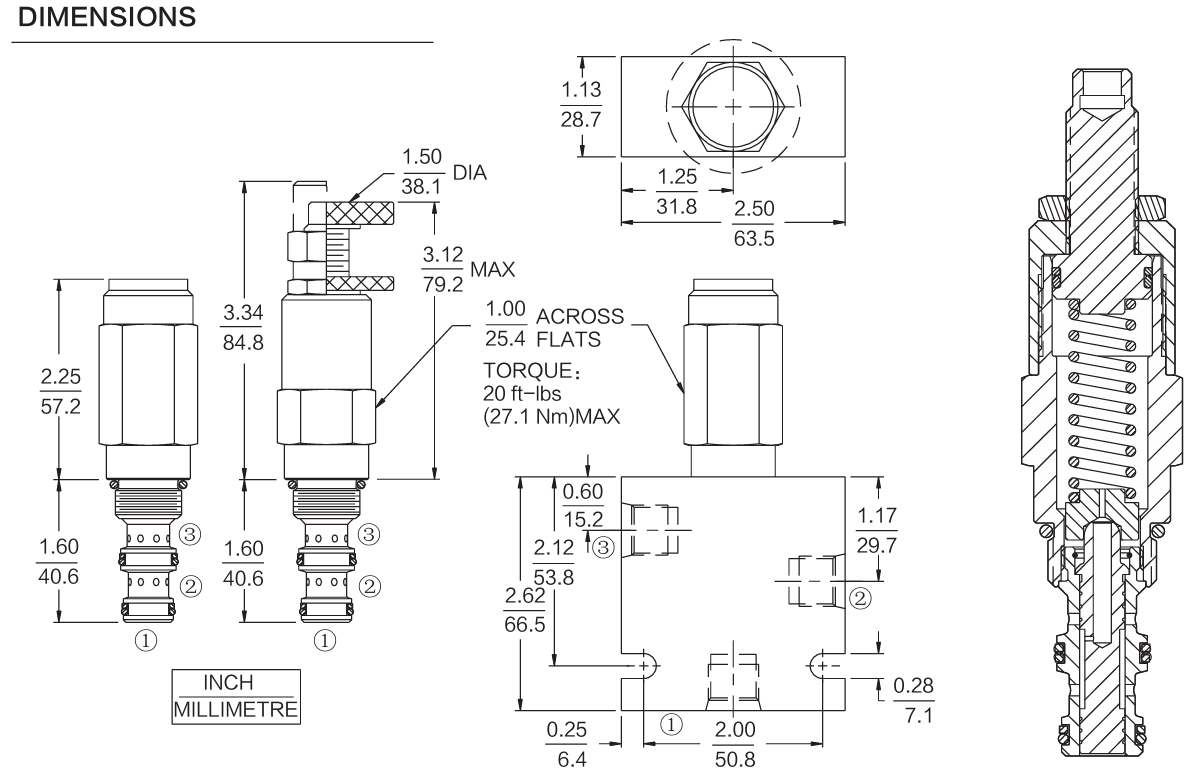

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

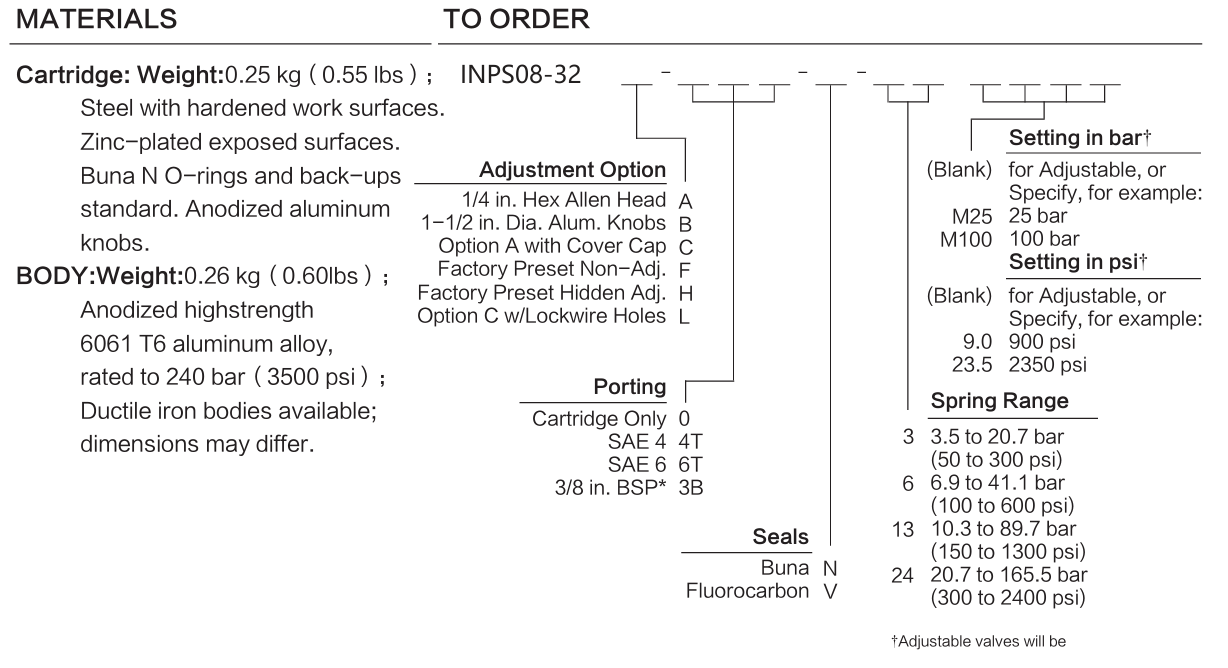

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
