Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, spool-type, hydraulic sequence valve with external pilot and internal spring chamber drain.
Operation
INPS10-32 blocks flow from port 2 to port 3. On attainment of a pre-determined pressure at port 1, the cartridge shifts to open port 2 to port 3. Since the spring chamber is vented at port 3, back pressure at port 3 will directly (1:1) affect the valve setting.
Technical Data
| Operating Pressure | 207 bar (3000 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T10-3A |
| Internal Leakage | 82 cc/minute (5 cu. in./minute) max. to 90% of nominal setting |
| Temperature | -40°C ~ 120°C with Buna N seals |
Performance Curve

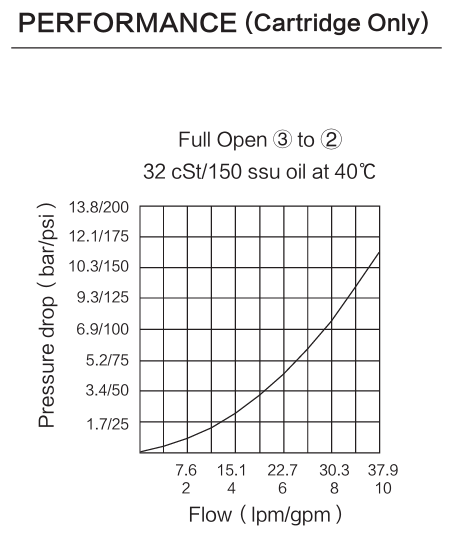

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

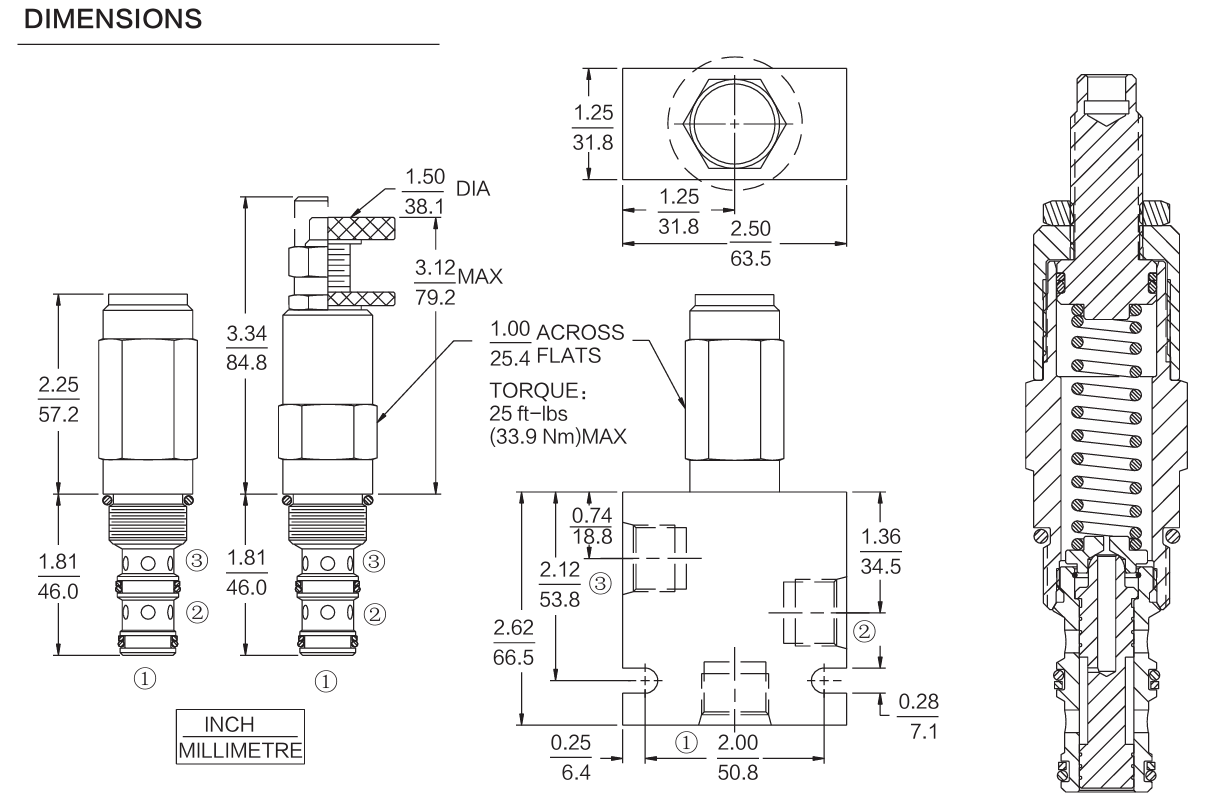

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options

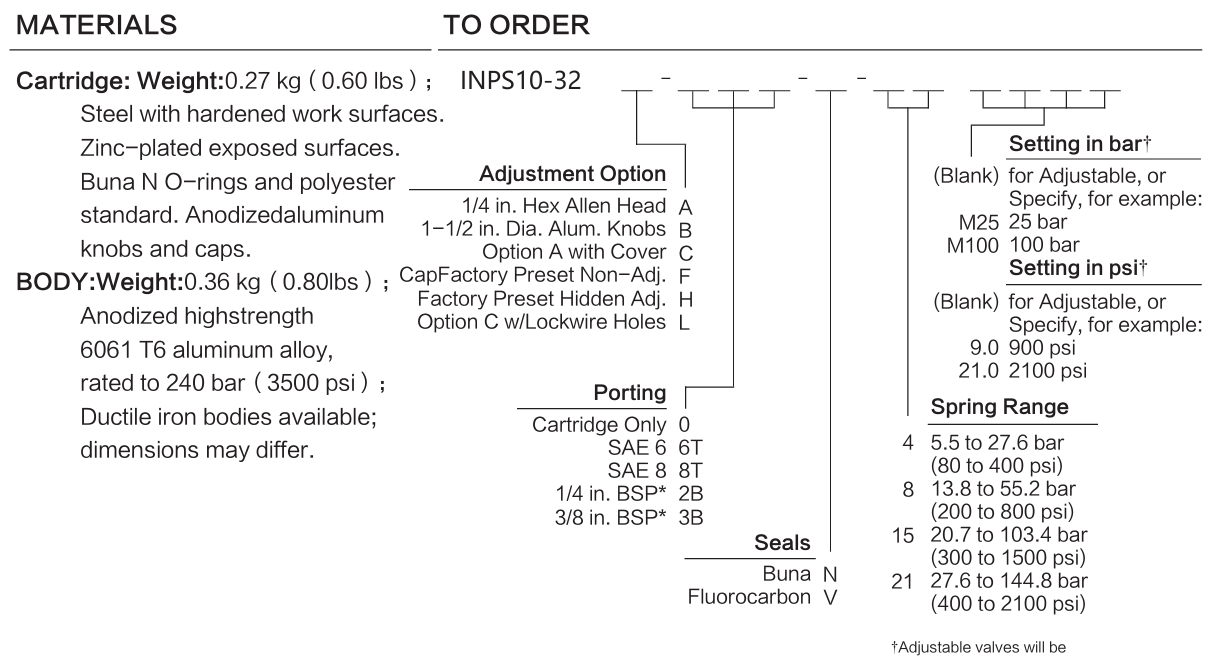

Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
