Hydraulic Symbol
Description
A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic sequence valve with internal pilot and external spring chamber drain.
Operation
In its steady state, the INPS10-36 blocks flow from port 1 to port 2, with the spring chamber drained at port 3. On attainment of a predetermined pressure at port 1, the cartridge shifts to open port 1 to port 2. Note that back-pressure on port 3 adds to the spring setting value.
Technical Data
| Operating Pressure | Operating Pressure: up to 241 bar (3500 psi); Sequence Pressure: up to 207 bar (3000 psi) |
|---|---|
| Flow | to 56.8 lpm (15 gpm) |
| Cavity | T10-3A |
| Temperature | -40°C to 100°C (-40°F to 212°F) with standard Buna seals |
Performance Curve

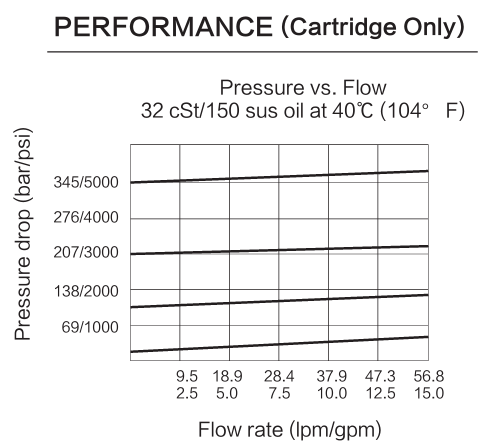

Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions

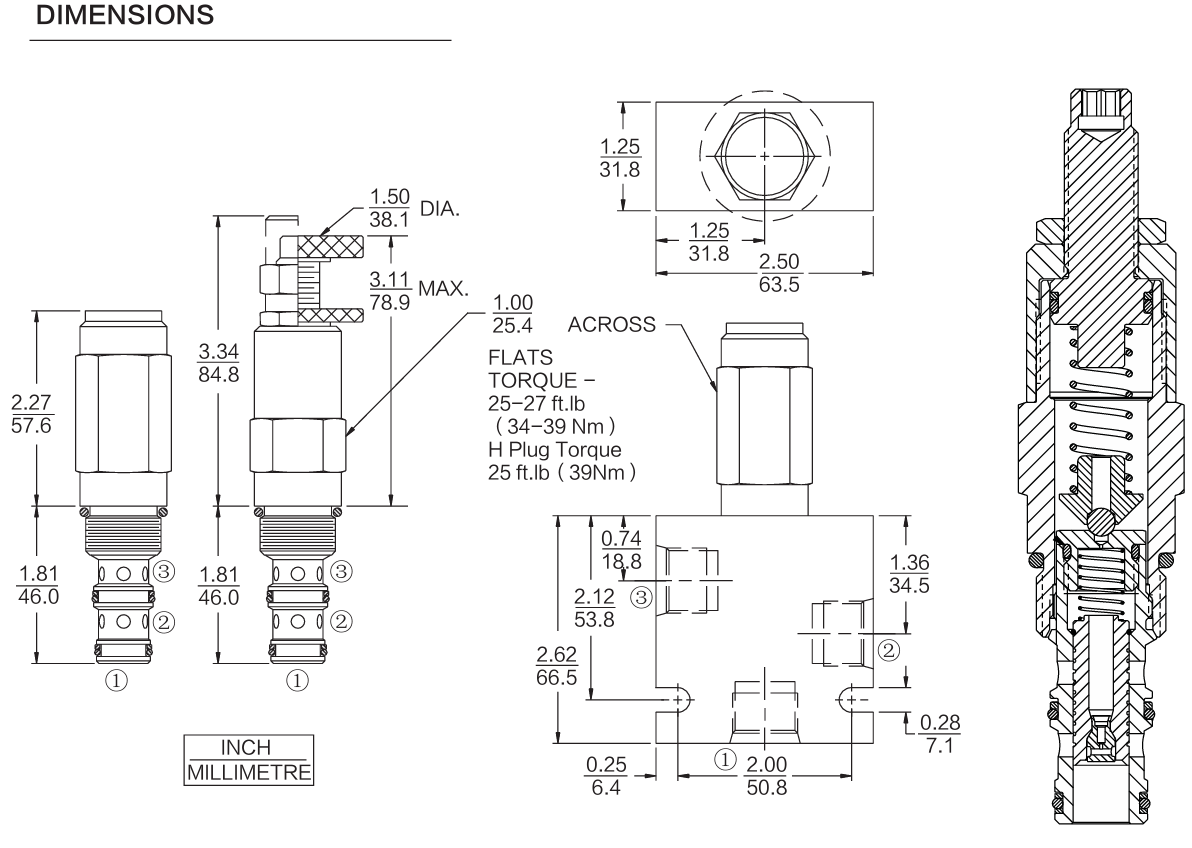

Dimension drawing is provided for installation and cavity review.
Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
