Hydraulic Symbol
Description
The valve are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients.
Operation
The valve are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.
Technical Data
| Operating Pressure | Max. Operating Pressure: 350 bar (5100 psi) |
|---|---|
| Flow | See Performance Chart |
| Cavity | T12-2H |
| Internal Leakage | 50 cc/min. at 70 bar |
| Temperature | -40°C to 120°C with standard Buna seals |

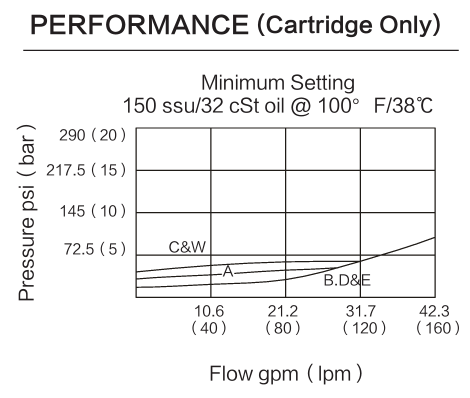

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.

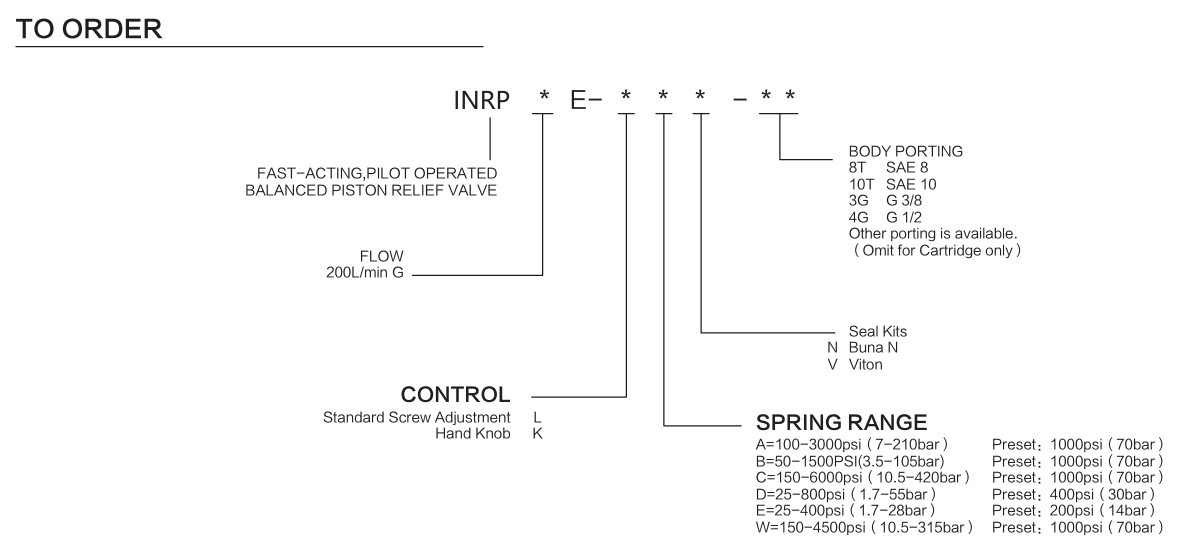

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
