Hydraulic Symbol
Description
A screw-in, cartridge-style, direct-acting, poppet-type.
Operation
The valve prevents flow port 1 to port 2 until the set crack pressure at port 1 is achieved. The poppet then unseats, allowing flow from port 1 to port 2, protecting the circuit from over pressurization.
Technical Data
| Operating Pressure | 250 bar max. |
|---|---|
| Flow | See Performance DROP VS FLOW graph |
| Cavity | T08-2E |
| Internal Leakage | 5 drops/min max. to 80% of nominal setting |
| Temperature | -22°F to +250°F (-30°C to +120°C) |

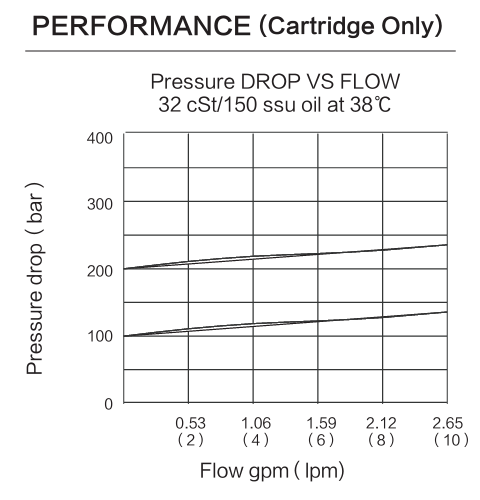

Performance Curve
Flow performance should be reviewed together with pressure drop and working conditions.
Dimensions
Dimension drawing is provided for installation and cavity review.

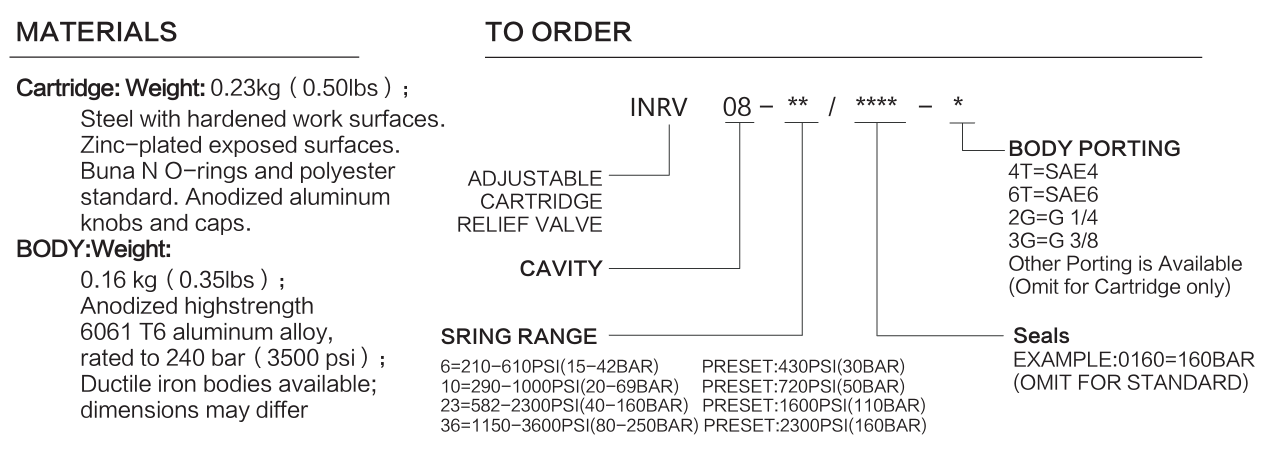

Materials & Ordering Options
Materials, seal options, coil voltage, connector types and ordering options are shown for product selection review.
